Evaluation System for F0480 Matched Broadband RF VGA
The F0480EVS is a fully populated evaluation board which allows the customer to easily evaluate the F0480 RF VGA. The attenuation setting may be set using the F0480’s...
Featured Documents:
Overview

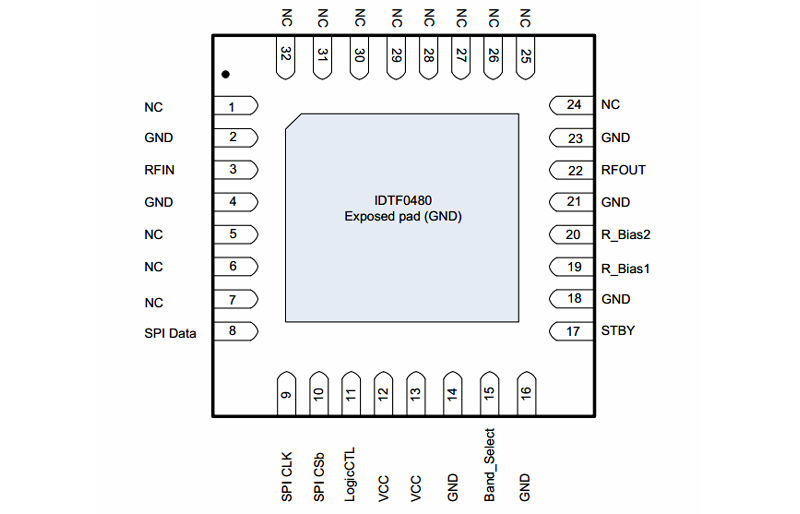

Description
The F0480 RF Variable Gain Amplifiers (VGA) featuring Glitch-Free™ and Zero-Distortion™ technologies greatly reduces attenuation overshoot during attenuation state changes and provides +41dBm OIP3 performance across a very wide bandwidth of 400MHz to 2700MHz at a typical current drain of 100mA. Furthermore, the device is internally matched so there is no need to optimize external matching elements.
Features
- 400MHz to 2700MHz; < 1dB overshoot between gain transitions
- 13dB typical max gain
- 23dB gain range, 1dB gain step resolution
- Excellent linearity +41dBm OIP3
- Noise figure 4dB
- ICC = 100mA
- 1.3mA standby current
- SPI interface
- Broadband, Internally Matched
Comparison
Applications
- Multi-mode, Multi-carrier Receivers
- PCS1900 Base Stations
- DCS1800 Base Stations
- WiMAX and LTE Base Stations
- UMTS/WCDMA 3G Base Stations
- PHS/PAS Base Stations
- Point-to-Point Infrastructure
- Public Safety Infrastructure
- Broadband Repeaters
- GPS Receivers
- Distributed Antenna Systems
- Cable Infrastructure
- Digital Radio
