Evaluation Kit for F1456 TX VGA
The F1456EVBK is a fully populated evaluation board that allows the customer to easily evaluate the F1456 TX RF Digital Variable Gain Amplifier. Attenuation is set...
Featured Documents:
Overview
Description
The F1456 is a High-Gain/High-Linearity 2100MHz to 2950MHz TX Variable Gain Amplifier used in transmitter applications. The F1456 TX VGA provides 32.1dB maximum gain with +38dBm OIP3 and 3.9dB noise figure. Up to 31.5dB gain control is achieved using the combination of a digital step attenuator (DSA) plus KLIN™ RF variable gain amplifier gain adjustment. This device uses a single 5V supply and 215mA of ICC. This device is packaged in a 6 × 6 mm, 28-QFN with 50Ω single-ended RF input and RF output impedances for ease of integration into the signal path.
Features
- Broadband 2100MHz to 2950MHz
- 32.1dB max gain
- 3.9dB NF @ max gain (2650MHz)
- 31.5dB total gain control range, 0.5dB step
- < 2 dB overshoot between major gain transitions
- +38dBm OIP3
- Maintains +21.5dBm output P1dB over 13dB gain adjustment range

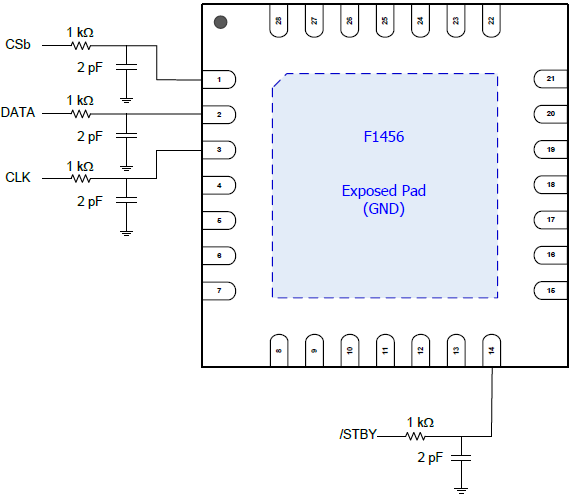

- SPI interface for DSA control
- Single 5V supply voltage
- ICC = 215mA
- Up to +105 °C TCASE operating temperature
- 50Ω input and output impedance
- Standby for power savings
- Pin compatible 700–1100MHz and 1400–2300MHz versions

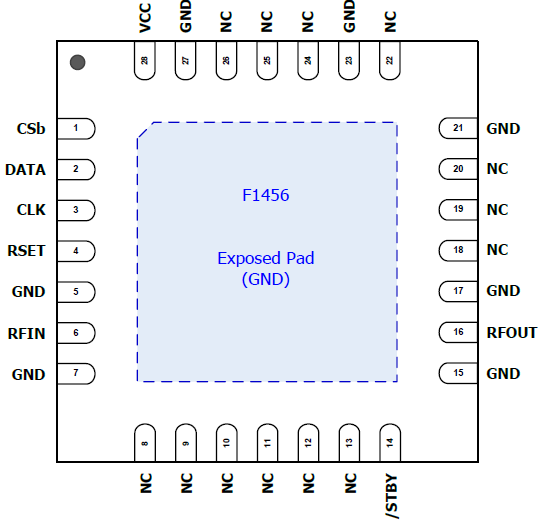

- 6 × 6 mm, 28-QFN package
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 8.75 MB | |
| Guide | PDF 2.24 MB | |
| Guide | PDF 2.83 MB | |
| Overview | PDF 1.15 MB | |
| Product Change Notice | PDF 32 KB | |
5 items
|
||
Design & Development
Software & Tools
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| VFQFPN | 28 | K | Yes | Tray | 1 | 5.853 | Get Samples, | |
| VFQFPN | 28 | K | Yes | Reel | 1 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Constant Linearity (KLIN) RF Technology by IDT
IDT’s KLIN (constant linearity) RF technology extends both OIP3 and output 1 dB compression point (P1dBO) amplifier gain settings. This is particularly valuable in transmitter designs where the gain of the device is maintained within a normal gain setting window about 6 dB below maximum gain.
KLIN refers to Constant High Linearity Inner Amplifiers as the gain is adjusted. This technology extends the compression performance over a wide range of input powers, and also extends output third order intercept and corresponding inner modulation distortion performance over a wide range of output powers.
This technology is particularly advantageous in transmitter designs, where the gain of the device is maintained within a normal gain setting window.
This technology applies to some of IDT's high-gain, high-linearity transmitter variable gain amplifiers (VGAs). For more information, visit: http://www.idt.com/products/rf-products/variable-gain-amplifiers-vga.
