Evaluation Kit for ZSC31015
The ZSC31015KIT Evaluation Kit, also known as the ZACwireTM SSC Modular Evaluation Kit, provides the hardware needed for configuration, calibration and evaluation of...
Featured Documents:
Overview
Description

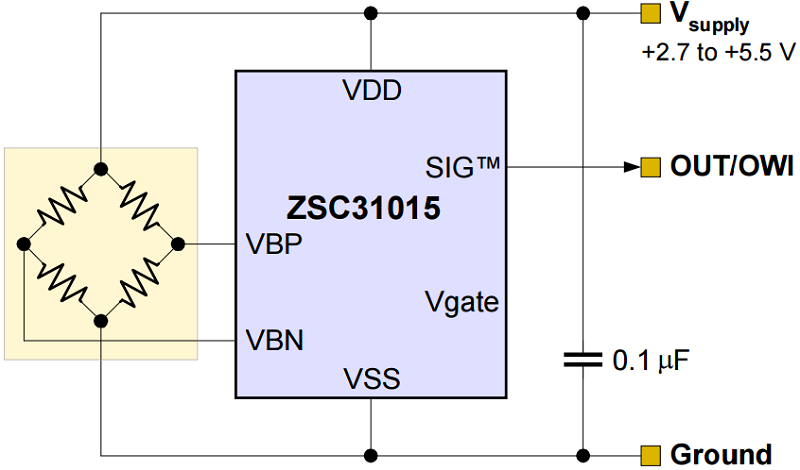

The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezoresistive bridge sensors. Measured and corrected bridge values are provided at the SIG™ pin, which can be configured as an analog voltage output or as a one-wire serial digital output. The digital one-wire interface can be used for a simple PC-controlled calibration procedure to program a set of calibration coefficients into an on-chip EEPROM. The calibrated ZSC31015 and a specific sensor are mated digitally: fast, precise, and without the cost overhead associated with trimming by external devices or laser. Integrated diagnostics functions make the ZSC31015 particularly well suited for automotive applications.
Features
- Digital compensation of sensor offset, sensitivity, temperature drift, and nonlinearity
- Programmable analog gain and digital gain; accommodates bridges with spans <1mV/V and high offset
- Many diagnostic features on chip (e.g., EEPROM signature, bridge connection checks, bridge short detection, power loss detection)
- Independently programmable high and low clipping levels
- 24-bit customer ID field for module traceability
- Digital calibration and configuration via one-wire interface quick and precise
- Internal temperature compensation reference (no external components)
- Option for external temperature compensation with addition of single diode
- Output options: rail-to-rail ratiometric analog voltage (12-bit resolution), absolute analog voltage, digital one-wire-interface
- Supply voltage 2.7V to 5.5V, with external JFET, 5.5V to 30V
- Fast power-up to data output response, output available 5ms after power up
- Current consumption depends on the programmed sample rate: 1mA down to 250µA (typical)
Comparison
Applications
Design & Development
Software & Tools
Boards & Kits
Mass Calibration System for ZSC31015
The ZSC31015 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSC31015 Sensor Signal...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Range |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|
| Part Number | |||||||
| WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| SOIC | 8 | -40 to +125°C | Reel | 1 | Get Samples, | ||
| SOIC | 8 | -40 to +125°C | Tube | 1 | 4.548 | Get Samples, | |
| WAFER | 0 | -50 to +150°C | Wafer | 1 | |||
| WAFER | 0 | -50 to +150°C | Wafer | 1 | |||
| SOIC | 8 | -50 to +150°C | Reel | 1 | 3.524 | Get Samples, | |
| SOIC | 8 | -50 to +150°C | Tube | 1 | 4.926 | Get Samples, | |
| WAFER | 0 | -25 to +85°C | Wafer | 1 | |||
| WAFER | 0 | -25 to +85°C | Wafer | 1 | |||
| SOIC | 8 | -25 to +85°C | Reel | 1 | Get Samples, | ||
| SOIC | 8 | -25 to +85°C | Tube | 1 | 4.786 | Get Samples, |
