Overview
Description

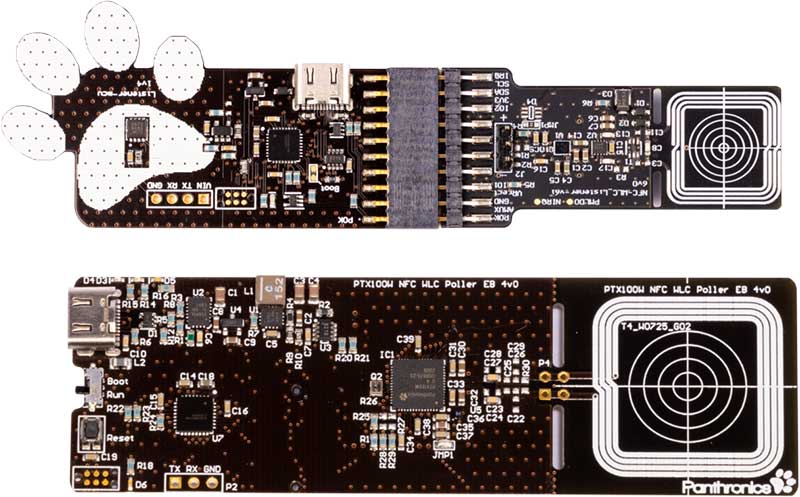

The PTX100W NFC wireless charging (WLC) evaluation kit facilitates the use of the PTX100W NFC transmitter system-on-chip. Users are able to cut development time and effort for NFC wireless charging with this complete system reference design.
- Demonstrate up to 1W charging power on the listener
- Evaluate NFC wireless charging with customer target device
- Mock-up with own antenna for RF evaluation
- Software evaluation and integration
Features
- Poller with PTX100W
- Listener board to demonstrate retrieved power
- SDK for integration into generic MCU
- Documentation
- Hardware/Software integration notes
- Board description, schematics, layout
- Antenna and matching guideline, RF tuning documentation
Applications
Applications
- Smart rings
- Smart glasses
- Fitness trackers
- Smart watches
- Medical devices
- Headsets
Videos & Training
When someone says “Wireless Charging” – Qi technology instantly comes to mind. But what if we tell you that the wireless charging world is on the verge of yet another innovation? NFC has been around for the last 20+ years, but it is only now that it is being considered for wirelessly charging small battery-powered devices. Renesas provides you with an innovative and dedicated NFC controller to do that!
PTX100W is the industry's first dedicated NFC IC for NFC wireless charging and it brings unpatched benefits to the charging system. In addition, Renesas cares not only about the transmitter side of the system but also about the receiver side by providing a complete system reference implementation in a sleek wireless charging evaluation kit.
In this video, we present to you the benefits that PTX100W brings to the NFC Wireless Charging world and what can be achieved by using our NFC IC.
Learn more about the innovative PTX100W and the evaluation kit for NFC Wireless Charging.
