Overview

Description

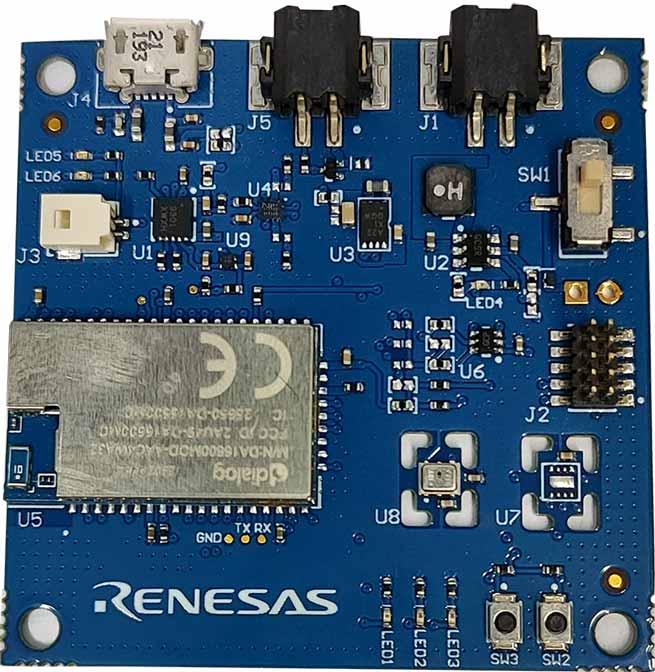

The EU153-SMTLEAKPOCZ water leakage sensor solution kit demonstrates the detection of inappropriately high moisture levels or water spilling to allow quick evaluation of Renesas relative humidity using temperature sensors with Renesas Wi-Fi/Bluetooth® Low Energy devices and third-party visualization tools.

Features

  • Detection of inappropriately high moisture levels/water spilling
  • Wi-Fi indication to the user or the shut-off valve, e.g., by MQTT
  • Rechargeable battery keeps the sensor alive when no mains power is available
  • Solar energy harvesting allows the use of a sensor without mains power
  • Ultra-low power DC/DC + Wi-Fi allows for long operation/standby time
  • Bluetooth 5 to ease commissioning via a smartphone

Applications

Documentation

Type Title Date
Manual - Hardware PDF 937 KB
Quick Start Guide PDF 749 KB
2 items

Design & Development

Software & Tools

Software Downloads

Type Title Date
PCB Design Files Log in to Download ZIP 7.85 MB
1 item

Related Boards & Kits

Lab on the Cloud

Lab on the Cloud

Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.

Implementation shows the detection of high moisture levels or water spilling with the help of humidity and temperature sensors through the DA16600MOD ultra-low power Wi-Fi + Bluetooth® Low Energy combo module and standard MQTT visualization tools.
