概要

IDT's ADC1610S125F1 demo board is suitable for dynamic performance evaluations from low to high IF configuration with LVCMOS output. A data-acquisition board can be used during design and prototype to analyze ADC performance.

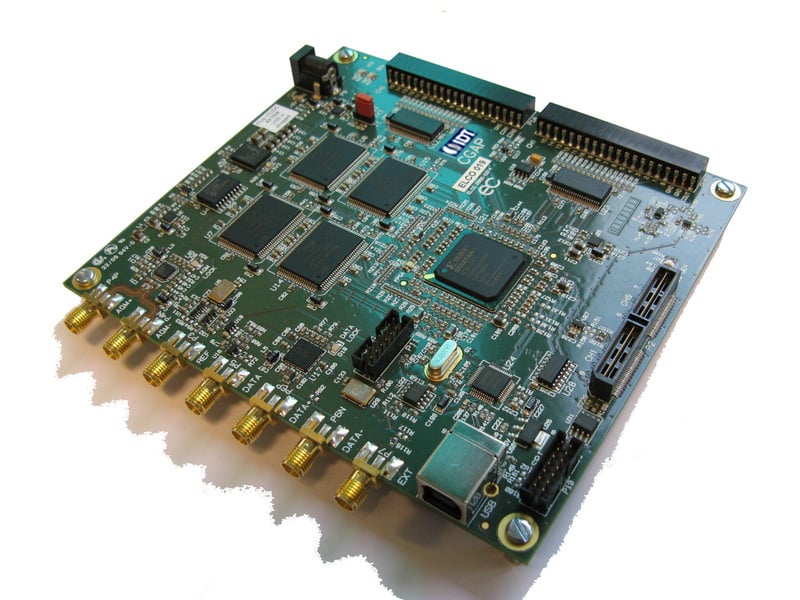

ADC1610S125F1 - Evaluation Board
ADC1610S125F1 - Evaluation Board
  • Single power supply (on-board regulators)
  • SMA connector for clock and analog input signals
  • CMOS (buffered outputs)

ドキュメント
分類 タイトル 日時
マニュアル－ソフトウェア
Demo Board Software ADC_1_r04
ZIP 2.33 MB
1件

製品選択

    Processing table
    EPC
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    ご購入 / サンプル
    型名
    ADC1610S125F1-DB
    circle廃止品
    		 BD0 BOARD 0 I No
