Overview
Description
download Download Latest Multi-OS Package:
RZ/V Multi-OS Package v3.0.0 (ZIP)

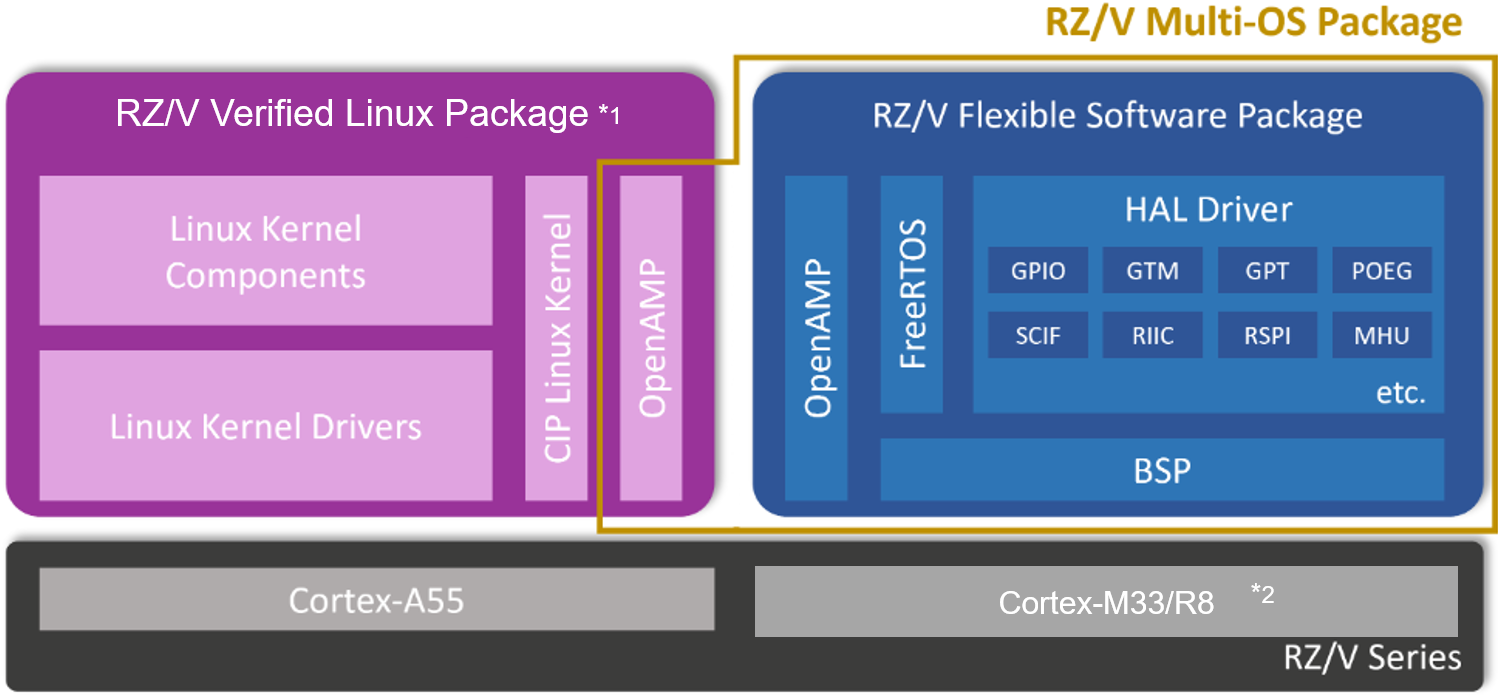

RZ/V Multi-OS Package is the software package consisting of RZ/V Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M, Cortex-R Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution.
Please refer to the following documents to learn how to use this software package.
Quick Start Guide for RZ/V Multi-OS Package
| Item | RZ/V2L (PDF) | RZ/V2H (PDF) | RZ/V2N (PDF) |
|---|---|---|---|
| Interprocessor communication (OpenAMP) | check | check | check |
| Cortex-A55 cold boot support (1.8GHz) | check | check | |
| Cortex-M33 cold boot support | check | check |
Power Management Example Program Startup Guide
| Item | RZ/V2L | RZ/V2H (PDF) | RZ/V2N (PDF) |
|---|---|---|---|
| Power Management AWO (Always On) | check | check |
For Flexible Software Package (FSP), please refer to the following.
FSP Platform Installer (Includes e² studio IDE, toolchain, and FSP packs):
- RZ/V FSP v3.1.0 (EXE)
FSP Standalone Installer (FSP packs for the users who only update the FSP and no e² studio update):
- Download from the Assets section of the GitHub
The installation instructions can be found here. All the FSP Releases and Patches can be found on GitHub.
*1 RZ/V AI SDK is used for RZ/V2H
*2 Cortex-R8 is on only RZ/V2H
Features
- Small memory footprint HAL driver.
- Configurator / Code generator that can be operated intuitively.
- Communication between CA55 – CM33, CR8 – CM33 by OpenAMP.
Release Information
- Mar 11, 2025 RZ/V Multi-OS Package v3.00
- Oct 4, 2024 RZ/V Flexible Software Package v2.02
- Aug 7, 2024 RZ/V Flexible Software Package v2.01
- May 31, 2024 RZ/V Multi-OS Package V2.00
- Apr 26, 2024 RZ/V Flexible Software Package Documentation
- Mar 29, 2024 RZ/V FSP Example Projects V1.00
- Jan 31, 2024 RZ/V2L Multi-OS Package V1.12
- Jul 31, 2023 RZ/V2L Multi-OS Package V1.11
- Jan 31, 2023 RZ/V2L Multi-OS Package V1.10
- Jul 29, 2022 RZ/V2L Multi-OS Package V1.02
- Jun 27, 2022 RZ/V2L Multi-OS Package V1.01
- Apr 27, 2022 RZ/V2L FSP(v1.00) with e2 studio 2022-04 installer for Windows
- Jan 20, 2022 RZ/V2L Multi-OS Package V1.00
- Jan 20, 2022 RZ/V2L FSP(v1.00) with e2 studio 2022-01 installer for Windows
Target Devices
Downloads
Featured
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | ZIP 14.50 MB Compiler: GNU ARM Embedded Function: Communication Interface IDE: e2 studio | |
| Software & Tools - Software | EXE 1,600.13 MB | |
| Software & Tools - Software | EXE 44.21 MB | |
3 items
|
||
Design & Development
Videos & Training
How to Check Pin Confliction Between RZ FSP Project and Linux Project
This video explains how to check for pin conflicts between the RZ FSP project and the Linux project.
Chapter's Title
00:00 Opening
00:06 Introduction
00:45 Pin Configuration for Linux Project
01:39 Check Pin Confliction Between RZ FSP Project and Linux Project
Related Resources
Video List
Operating Environment
| Integrated development environment | e2 studio Integrated Development Environment, default toolchain is GCC Arm Embedded |
|---|---|
| Supported boards | RZ/V2L Evaluation Board Kit RZ/V2H Evaluation Board Kit RZ/V2N Evaluation Board Kit |
| Emulator | SEGGER (J-Link Series) *1 |
- Please do not update J-Link Firmware beyond version 7.96e, as we have only confirmed RZ/V FSP’s correct functionality with v7.96e.
Supported Devices
| Supported Devices | RZ/V Multi-OS Package | RZ/V AI SDK | RZ/V Flexible Software Package |
|---|---|---|---|
| RZ/V2N RZ/V2H | V3.0.0 | V5.0.0 | V3.1.0 |
| Supported Device | RZ/V Multi-OS Package | RZ/V Verified Linux Package | RZ/V Flexible Software Package |
|---|---|---|---|
| RZ/V2L | V3.0.0 | V3.0.6 | V3.1.0 |
Driver Software Supported by RZ/V2N, RZ/V2H Flexible Software Package
| Category | Function | Cortex-M33 | Cortex-R8 (only RZ/V2H) |
|---|---|---|---|
| OS | FreeRTOS | ✔ | ✔ |
| Middleware | OpenAMP | ✔ | ✔ |
| Driver List | Board Support Package (BSP) for FSP (bsp) | ✔ | ✔ |
| GPIO (r_ioport) | ✔ | ✔ | |
| GTM (r_gtm) | ✔ | ✔ | |
| GPT (r_gpt) | ✔ | ✔ | |
| POEG (r_poeg) | ✔ | ✔ | |
| RIIC_master (r_riic_master, r_riic_slave) | ✔ | ✔ | |
| WDT (r_wdt) | ✔ | ✔ | |
| SCI_UART (r_sci_b_uart) | ✔ | ✔ | |
| SCIF_UART (r_scif_uart) | ✔ | ✔ | |
| MHU (Message Handling Unit) | ✔ | ✔ | |
| CANFD (r_canfd) | ✔ | ✔ | |
| ADC (r_adc_e) | ✔ | ✔ | |
| RTC (r_rtc) | ✔ | ✔ | |
| INTC_TINT (r_intc_tint) | ✔ | ✔ | |
| INTC_IRQ (r_intc_irq) | ✔ | ✔ | |
| INTC_NMI (r_intc_nmi) | ✔ | ✔ | |
| RSCI I2C(r_sci_b_i2c) | ✔ | ✔ | |
| SPI (r_spi_b) | ✔ | ✔ | |
| DMAC (r_dmac_b) | ✔ | ✔ | |
| CRC (r_crc) | ✔ | ✔ | |
| CMTW (r_cmtw) | ✔ | ✔ | |
| ELC (r_elc) | ✔ | ✔ | |
| xSPI (r_xspi_qspi) | ✔ | ||
| I3C (r_i3c_b) | ✔ | ||
| TSU (r_tsu_b) | ✔ | ||
| PDM (r_pdm) | ✔ |
Driver Software Supported by RZ/V2L Flexible Software Package
| Category | Function | Cortex-M33 |
|---|---|---|
| OS | FreeRTOS | ✔ |
| Middleware | OpenAMP | ✔ |
| I2C Communication Interface (rm_comms_i2c) | ✔ | |
| Sensor modules (rm_hs300x, rm_hs400x, rm_zmod4xxx, rm_ob1203) | ✔ | |
| Driver List | Board Support Package (BSP) for FSP (bsp) | ✔ |
| GPIO (r_ioport) | ✔ | |
| GTM (r_gtm) | ✔ | |
| INTC_irq (r_intc_irq) | ✔ | |
| GPT (r_gpt) | ✔ | |
| POEG (r_poeg) | ✔ | |
| RIIC_master (r_riic_master) | ✔ | |
| RSPI (r_rspi) | ✔ | |
| SCIFA_uart (r_scif_uart) | ✔ | |
| MHU (Message Handling Unit) (r_mhu_ns, r_mhu_s, r_mhu_ns_swint_get, r_mhu_ns_swint_set) | ✔ | |
| CANFD (r_canfd) | ✔ |
