Overview

Topics

  • The E2 emulator Lite supports the new device RA8E1 group, Arm® Cortex®-M85 Based Entry-Line MCU with Helium™ and TrustZone®.
  • This emulator supports new RX261/RX260 Group MCUs with outstanding power efficiency, advanced touch functions and robust security.

See Release Information when using the E2 emulator Lite.

The E2 emulator Lite (abbreviated as "E2 Lite") is an on-chip debugging emulator and flash programmer for MCUs of the RX, RA, RL78 families and RISC-V MCU.
The E2 Lite offers basic debugging facilities at a low price and is also usable for actual development. This emulator is suitable for various purposes, ranging from education and initial evaluation to professional development.
You can also use the E2 Lite with optional products for the E1 emulator (such as the hot-plug adapter).
Refer to the respective links for more information below
Components | Optional Products (Cables sold separately, etc)

E2 emulator Lite [RTE0T0002LKCE00000R]
E2 emulator Lite [RTE0T0002LKCE00000R]
  • Affordable yet powerful debugger functionality that meets actual development needs
    Learn more about the on-chip debugger functionality
  • Optional products that will shorten your debugging periods
    We offer various optional products including a hot-plug adapter, which can be used to connect the E2 Lite to a user system even while the system is running a program.
  • Also usable as an on-board programmer
    You can use the E2 Lite as an on-board programmer on completion of debugging. This will enable smoother evaluation of the MCU in stand-alone operation.
  • Supports serial, JTAG, and SWD communications interfaces
    The E2 Lite can be connected to the MCU through a serial, JTAG, or SWD communications interface.
  • Learn More

See the latest Release Information of MCUs.

RA Family   RL78 Family   RX Family   RISC-V MCU

*Please contact Renesas sales division for RE Family.



Release Information for RA Family

The E2 emulator Lite supports the new device RA8E1 group, Arm® Cortex®-M85 Based Entry-Line MCU with Helium™ and TrustZone®.
Purpose of useSoftware to be usedLatest VersionReleasedOperating Environment
On-chip Debugginge² studio(64-bit version) 2024-10Oct. 22, 2024Operating Environment
(32-bit version) V7.8.0Apr. 20, 2020
Arm Keil MDK
cloud_download Renesas RA family E2 Lite Debug Driver for Keil uVision V1.00 (ZIP | English, 日本語) required.		A tool produced by Partner. For the details of Keil MDK, contact Arm directly
Flash ProgrammingRenesas Flash Programmer V3V3.17.00Oct. 22, 2024Operating Environment
Precautions when using "RA Family"
Please be aware that a User-system interface cable will need to be purchased separately to support RA device debug with E2 Lite using either 20-20 pins or 20-10 pins. Please see Optional Products for RA Family for details.



Release Information for RL78 Family

Purpose of useSoftware to be usedLatest VersionReleasedOperating Environment
On-chip DebuggingCS+ (CS+ for CC)V8.12.00Note1Jul. 22, 2024Operating Environment
e² studio(64-bit version) 2024-10Oct. 22, 2024
(32-bit version) V7.8.0Apr. 20, 2020
IAR Embedded WorkbenchA tool produced by Partner. For the details of support for E2 Lite, contact IAR Systems directly.
Flash ProgrammingRenesas Flash Programmer V3V3.17.00Oct. 22, 2024Operating Environment

Note

  1. If you hope to continue to use the product on the Windows 32-bit version, use the CS+ IDE V8.06 and earlier that supports the 32-bit versions
    [Notification] End of Support: CS+ Integrated Development Environment for Windows 32-Bit Versions (PDF | English, 日本語)



Release Information for RX Family

The E2 emulator Lite supports the new device RX261 group and RX260 group, Microcontrollers with Outstanding Power Efficiency, Advanced Touch Functions, and Security.
Purpose of useSoftware to be usedLatest VersionReleasedOperating Environment
On-chip DebuggingCS+ (CS+ for CC)V8.12.00Note1Jul. 22, 2024Operating Environment
e² studio(64-bit version) 2024-10Oct. 22, 2024
(32-bit version) V7.8.0Apr. 20, 2020
IAR Embedded WorkbenchA tool produced by Partner.  For the details of support for E2 Lite, contact IAR Systems directly.
Flash ProgrammingRenesas Flash Programmer V3V3.17.00Oct. 22, 2024Operating Environment

Note

  1. If you hope to continue to use the product on the Windows 32-bit version, use the CS+ IDE V8.06 and earlier that supports the 32-bit versions
    [Notification] End of Support: CS+ Integrated Development Environment for Windows 32-Bit Versions (PDF | English, 日本語)



Release Information for RISC-V MCU

Purpose of useSoftware to be usedLatest VersionReleasedOperating Environment
On-chip Debugginge² studio(64-bit version) 2024-10Oct. 22, 2024Operating Environment
Flash ProgrammingRenesas Flash Programmer V3V3.17.00Oct. 22, 2024
Precautions when using "RISC-V MCU"
Please be aware that a User-system interface cable will need to be purchased separately to support RA device debug with E2 Lite using either 20-20 pins or 20-10 pins. Please see Optional Products for RISC-V MCU for details.

FAQ

Title
List of know-how when using E1/E20 emulator in CS+ environment (CS+, E2, E2 Lite, E1, E20)
IDE and Programmer Versions Supported by the E2/E2 Lite Emulator (E2, E2 Lite)
Action required for migrating the project file (E2, E2 Lite, E1) [RX]

See all related FAQs

Target Family

Precautions when using "RA Family" and "RISC-V MCU"
Please be aware that a User-system interface cable will need to be purchased separately to support RA device debug with E2 Lite using either 20-20 pins or 20-10 pins. Please see Optional Products for RA Family or Optional Products for RISC-V MCU for details.

Downloads
Type Title Date
Software & Tools - Software
Renesas RA family E2 Lite Debug Driver for Keil uVision V1.00
Log in to Download ZIP 6.34 MB 日本語
Software & Tools - Other
E2 emulator, E2 emulator Lite Linux driver
Log in to Download ZIP
Software & Tools - Other
E2 Lite Self-Checking Program V.1.00.00
Log in to Download ZIP 4.91 MB 日本語
Upgrade - IDE
USB Driver for Renesas MCU Tools V2.77.00 (for 64-bit version of Windows OS)
Log in to Download ZIP 3.25 MB 日本語
Upgrade - IDE
USB Driver for Renesas MCU Tools(E2,E2 Lite,IE850,IE850A,PG-FP5) V2.77.00(for 32-bit version of Windows OS)
Log in to Download ZIP 3.09 MB 日本語
Add 16 hidden items
5 items

Documentation

Design & Development

Product Options

    Processing table
    Description
    Buy / Sample
    Part Number
    RTE0T0002LKCE00000R
    circleActive
    Buy Now
    		E2 Emulator Lite
    RTE0T00020KCAC0000J
    circleActive
    Buy Now
    		User-system Interface Cable for the E2 Emulator (20-20 pins)
    RTE0T00020KCAC1000J
    circleActive
    Buy Now
    		User-system Interface Cable for the E2 Emulator(20-10 pins)
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Videos & Training

    E2 Emulator Lite Product Configurations

    This video introduces the product configurations of the E2 Emulator Lite. The E2 Emulator Lite is a budget-friendly tool that supports full-scale development, making it ideal for first-time developers, educational projects, and mass-production flash programming.

    Chapter's Title

    00:00 Opening
    00:36 E2 emulator Lite package contents
    00:55 USB connector
    01:01 Target interface
    01:42 LED
    02:04 Web Introduction

    Video List
    E2 Emulator Lite Product Configurations
    Renesas Emulator Selection Guide for RL78
    Renesas Emulator Selection Guide for RX
    Emulator Introduction for RA

    Additional Details

    Specifications

    Note that some functions shown here may not be supported under the IDE you use. Performance property and Connection system also vary depending on the MCU type.

    ItemDescription
    • Connection system
    • Break function
    • Trace function
    • Memory reference and change while executing the program
    • Performance measurement
    • Hot plug-in
    		See On-chip Debuggers Performance Property (PDF | English, 日本語).
    On-board programmingSupportedNote1
    User interface14pin 2.54mm pitch connector
    (7614-6002: from 3M Japan, 2514-6002: from 3M Limited)
    20pin 1.27mm pitch connector
    (FTSH-110-01-L-DV-K: from Samtec)
    10pin 1.27mm pitch connector
    (FTSH-105-01-L-DV-K: from Samtec, FTSH-105-01-L-DV: from Samtec without a marking for matching the position of the connector; keying shroudNote2)
    PC InterfaceUSB 2.0, full speed
    Target board connectionVia attached user I/F cable (Connection signals vary by the target MCU type.)
    Operating voltage range1.8V to 5.5V (depends on the target MCU)
    Power supply from EmulatorSupply current: Up to 200mA, Supply voltage: 3.3V only
    External dimension
    (Except the protruding parts)    		96.2 mm×52.7 mm×17.2 mm
    Conformance with overseas standardsEuropean Standards: EN 55022 Class A, EN 55024
    US FCC Standard: FCC part 15 Class A

    Note:

    1. The E2 emulator Lite can support bit rates up to 1.5 Mbps. However, only bit rates which are selectable for the external clock of the target MCU or system of the RX family are displayed. Note that in some cases the bit rate selected for the E1 or E20 emulator will not be selectable.
    2. When using a connector without a guide marking (keying-shroud type), take care with regard to the direction for insertion of the cable.

    Components

    E2 emulator Lite body

    USB interface cable
    *Bundled

    User system interface cable 14-14 pins
    *Bundled

    Please be aware that a User-system interface cable will need to be purchased separately to support RA device and RISC-V MCU device debug with E2 Lite using either 20-20 pins or 20-10 pins. Please see Optional Products for RA Family or Optional Products for RISC-V MCU for details.

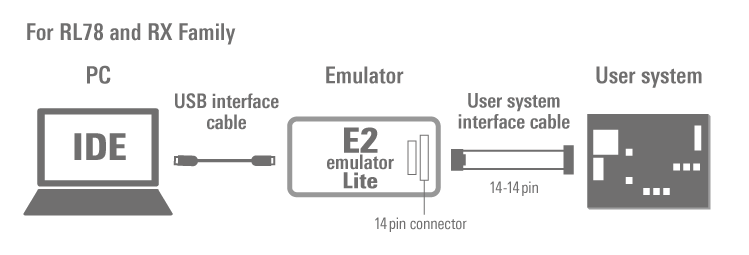

    System Configuration

    Refer to the Release Information in this page for information of software on PC.

    Note

    1. Optional products

    Optional Products(Sold Separately)

    The following optional products are provided to facilitate the use of the E2 emulator Lite in various ways. Please check which products are supported by your MCU.

    RA Family   RL78 Family   RX Family   RISC-V MCU

    • Please contact Renesas sales division for RE Family.
    • Please read references to "E1 emulator" in the manuals for optional products as also meaning "E2 emulator Lite".



    Optional Products for RA Family

    TypeDescriptionProduct name / Manual
    User-system Interface CableThis cable is used to connect the E2 emulator. It can also be used for the E2 emulator Lite and PG-FP6.User-system Interface Cable for the E2 Emulator (20-20 pins)
    RTE0T00020KCAC0000J
    RTE0T00020KCAC0000J User's Manual User-system Interface Cable for the Emulator (20-20 pins) (PDF | English, 日本語)
    User-system Interface Cable for the E2 Emulator (20-10 pins)
    RTE0T00020KCAC1000J
    RTE0T00020KCAC1000J User's Manual User-system Interface Cable for the Emulator(20-10 pins) (PDF | English, 日本語)
    IsolatorEnables debugging in environments where the grounds of the user system and the host PC are not the same.Isolator for the E2 Emulator (E2 Emulator Lite) of RA/RE
    RTE0T00020KCAA0000J
    RTE0T00020KCAA0000J User's Manual (Isolator for E2 Emulator) (PDF | English, 日本語)



    Optional Products for RL78 Family

    TypeDescriptionProduct name / Manual
    Conversion AdapterConverts the number and pitch of pins of the connector for connecting the emulator.Small Connector Conversion Adapter for the E1 Emulator
    R0E000010CKZ11
    R0E000010CKZ11 User's Manual (Small Connector Conversion Adapter for E1 Emulator) (PDF | English, 日本語)
    Hot-plug AdapterNote1Allows you to connect the emulator without having to turn off the system (Hot Plugin).Hot-plug Adapter for the E1 Emulator
    R0E000010ACB00
    R0E000010ACB00 User's Manual (Hot-plug Adapter for E1 Emulator) Rev.1.01 (PDF | English, 日本語)
    IsolatorEnables debugging in environments where the grounds of the user system and the host PC are not the same.Isolator for the E1 Emulator
    R0E000010ACB20
    R0E000010ACB20 User's Manual (Isolator for E1 Emulator) (PDF | English, 日本語)
    Low voltage OCD BoardNote2Enables debugging of an MCU with a power-supply voltage such that the on-chip flash ROM cannot be reprogrammed.This product is used between the emulator and a user's system, and is united by the in-circuit connection with the user's system.Low voltage OCD Board for RL78/G10 (10-pin/16-pin)
    R0E510Y47LVB00
    Low voltage OCD Board for RL78/G10 (10pin, 16pin) Rev.1.00 (PDF | English, 日本語)
    An OCD board for debugging an RL78/G10 MCU (10-pin or 16-pin) with an adapter voltage below 4.5 V

    Note

    1. Refer to On-chip Debuggers Performance Property (PDF | English, 日本語) for the applicable MCU groups.
    2. Target device: RL78/G10



    Optional Products for RX Family

    TypeDescriptionProduct name / Manual
    Conversion AdapterConverts the number and pitch of pins of the connector for connecting the emulator.14-Pin to 38-Pin Conversion Adapter for the E1 Emulator
    R0E000010CKZ00
    R0E000010CKZ00 User's Manual (14-Pin to 38-Pin Conversion Adapter for E1 Emulator) (PDF | English, 日本語)
    An adapter for converting the 14-pin/2.54-mm pitch connector on the head of the emulator user interface cable to a 38-pin/0.5-mm pitch connector
    Small Connector Conversion Adapter for the E1 Emulator
    R0E000010CKZ11
    R0E000010CKZ11 User's Manual (Small Connector Conversion Adapter for E1 Emulator) (PDF | English, 日本語)
    Hot-plug AdapterNote1Allows you to connect the emulator without having to turn off the system (Hot Plugin).Hot-plug Adapter for the E1 Emulator
    R0E000010ACB00
    R0E000010ACB00 User's Manual (Hot-plug Adapter for E1 Emulator) Rev.1.01 (PDF | English, 日本語)
    IsolatorEnables debugging in environments where the grounds of the user system and the host PC are not the same.Isolator for the E1 Emulator
    R0E000010ACB10
    R0E000010ACB10 User's Manual (Isolator for E1 Emulator) (PDF | English, 日本語)

    Note

    1. Refer to On-chip Debuggers Performance Property (PDF | English, 日本語) for the applicable MCU groups.



    Optional Products for RISC-V MCU

    TypeDescriptionProduct name / Manual
    User-system Interface CableThis cable is used to connect the E2 emulator. It can also be used for the E2 emulator Lite and PG-FP6.User-system Interface Cable for the E2 Emulator (20-20 pins)
    RTE0T00020KCAC0000J
    RTE0T00020KCAC0000J User's Manual User-system Interface Cable for the Emulator (20-20 pins) (PDF | English, 日本語)
    User-system Interface Cable for the E2 Emulator (20-10 pins)
    RTE0T00020KCAC1000J
    RTE0T00020KCAC1000J User's Manual User-system Interface Cable for the Emulator(20-10 pins) (PDF | English, 日本語)



    Design Support

    E2 emulator Lite [RTE0T0002LKCE00000R] Information for Users
