Overview

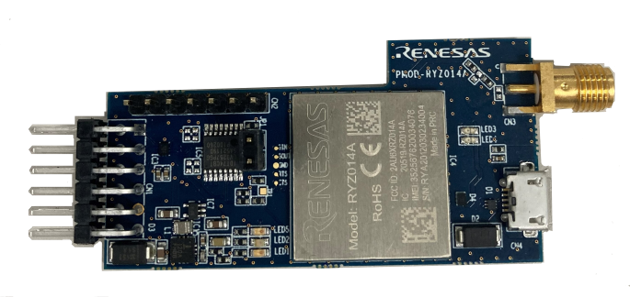

The PMOD Expansion Board for RYZ014A provides an entry point to evaluation and developing for the RYZ014A. The PMOD Expansion Board is easy connection to Renesas MCU kits via PMOD interface. And the PMOD Expansion Board can be controlled through UART interface.

Product Contents

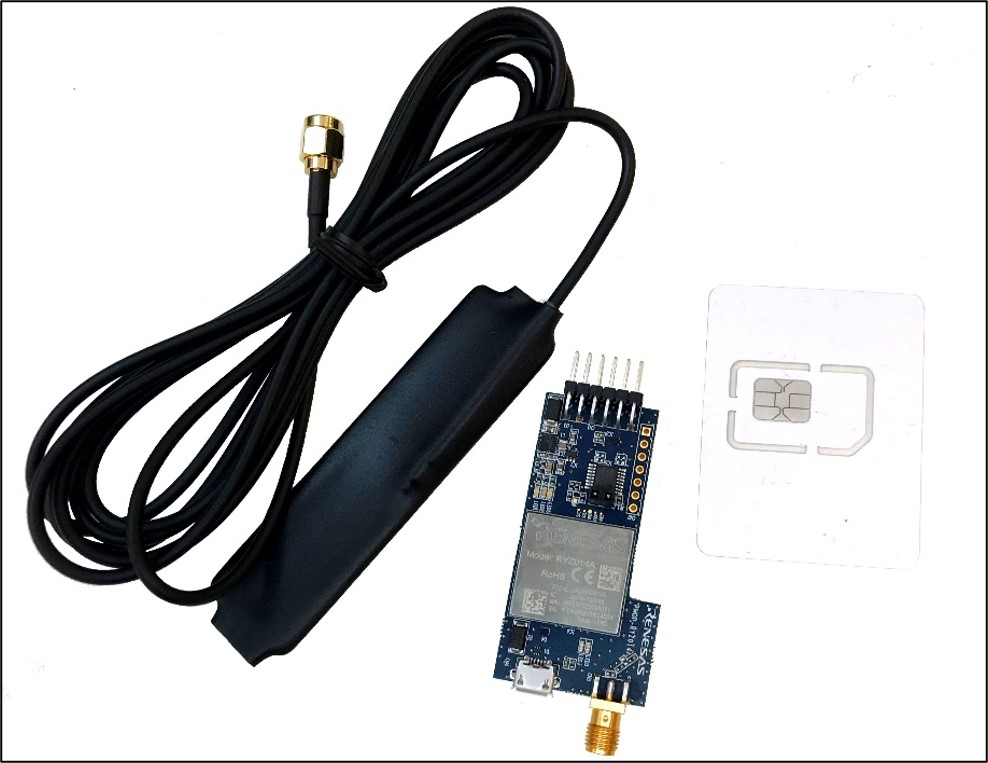

The following components are included.

  • PMOD™ Expansion Board for RYZ014A
  • LTE Antenna ( Taoglas: GSA.8830.A.201111) (SMA Male termination)
  • MVNO SIM Card

Countries supported by the included SIM card

Austria, Belgium, Canada, Denmark, Finland, France, Germany, Japan, Liechtenstein, Luxembourg, Mexico, Netherlands, Norway, Poland, Portugal, Romania, Spain, Sweden, Switzerland, United Kingdom, United States

APN setting information by the included SIM card

Item Value
APN (Access point name) iot.truphone.com
User ID (Access point login ID)  - (Null)
Password (Access point password)  - (Null)
SIM card PIN code  - (Null)
Authentication protocol type PAP

SIM card plans

First 90-days/50MB free

Certifications

The RYZ014A evaluation kit meets multiple regional regulatory requirements. Individual certificates are available below. Refer to the RYZ014A evaluation kit documentation for disclaimer, precautions and more details on the certifications.

Japan radio/terminal equipment based on type certification
Implemented RYZ014A has obtained certified construction type certification (certification number: 003-200328).

Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.

Title Date
RTKRYZ014AB00000BE - CE Declaration of Conformity (PDF) Mar 8, 2022
RTKRYZ014AB00000BE - UKCA Declaration of Conformity (PDF) Mar 8, 2022

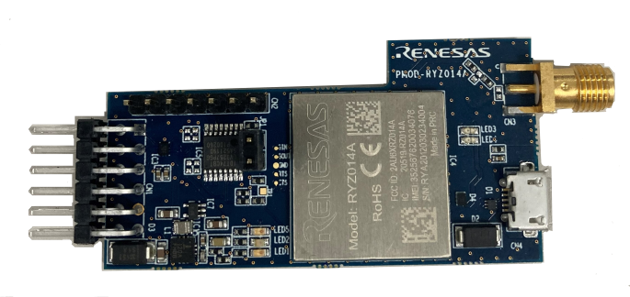

PMOD-RYZ014A
RTKYZ014A0B00000BE Contents
PMOD-RYZ014A
RTKYZ014A0B00000BE Contents
  • Wireless module
    • LTE Cat-M1 Cellular IoT Module RYZ014A (RYZ014A000FZ00#HD0)
  • PMOD™ interface
    • Easy connection to Renesas MCU kits via PMOD (UART)
  • USB interface
    • Can be used for various interfaces
  • Antenna interface
    • Can be used for various external antennas
  • Control software
    • Supported by the RA MCU family’s Flexible Software Package (FSP)
    • Driver for RX MCUs available
