Quad Micropower, Chopper Stabilized, RRIO Op Amp Evaluation Board
The ISL28433SOICEVAL1Z evaluation board is designed to evaluate the performance of the ISL28433 chopper stabilized op amp. The ISL28433 chopper stabilized rail-to-rail...
Overview
Description
The ISL28433 is a quad micropower, chopper stabilized operational amplifier that is optimized for single and dual supply operation from 1.65V to 6.0V and ± 0.825V to ± 3.0V. Their low supply current of 18µA and wide input range enable the ISL28433 to be an excellent general-purpose op amp for a wide range of applications. The ISL28433 is ideal for handheld devices that operate off 2 AA or single Li-ion batteries. The ISL28433 is available in 14 Ld TSSOP, 14 Ld SOIC and 14 Ld 3mm x 4mm TDFN packages. The device operates over the temperature range of -40 °C to +125 °C.
Features
- Low Input Offset Voltage: 6µV, Max.
- Low Offset Drift: 0.05µV/°C, Max.
- Quiescent Current (Per Amplifier): 18µA, Typ.
- Single Supply Range: +1.65V to +6.0V
- Dual Supply Range: ±0.825V to ±3.0V
- Low Noise (0.01Hz to 10Hz): 1.0µVP-P, Typ.
- Rail-to-Rail Inputs and Output
- Input Bias Current: 180pA, Max.
- Operating Temperature Range: -40 °C to +125 °C
Comparison
Applications
Applications

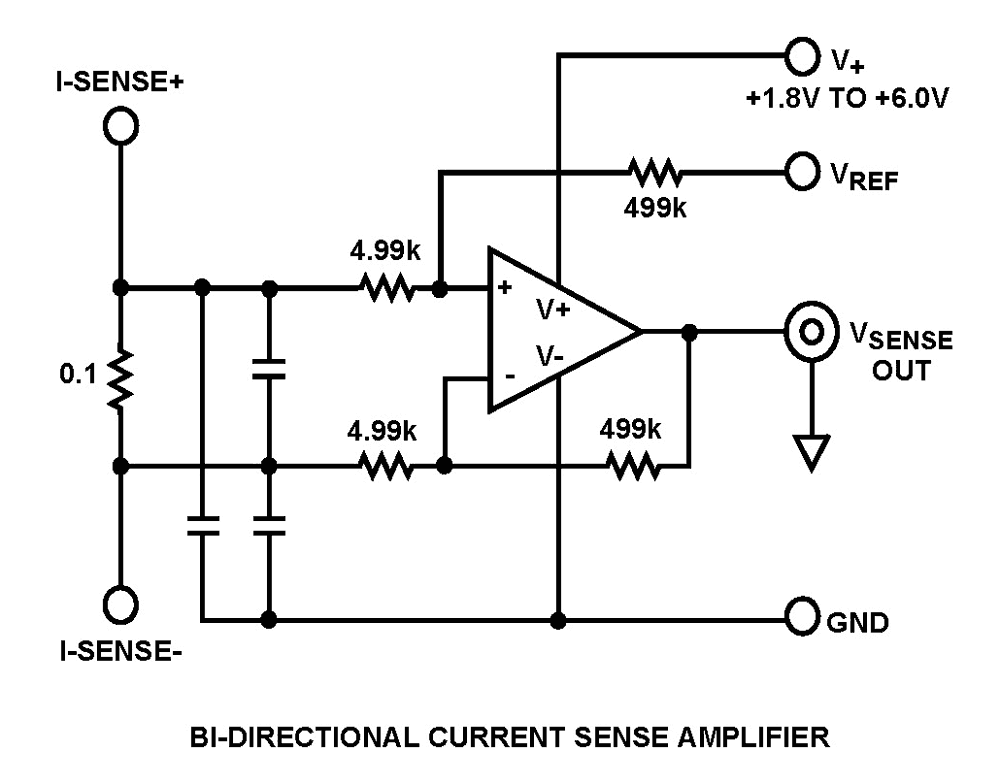

- Bidirectional Current Sense
- Temperature Measurement
- Medical Equipment
- Electronic Weigh Scales
- Precision/Strain Gauge Sensor
- Precision Regulation
- Low Ohmic Current Sense
- High Gain Analog Front Ends
