Overview

The DA7219 is an ultra-low power audio codec with Advanced Accessory Detection (AAD), which supports sample rates up to 96kHz at 24-bit resolution. It contains a mono microphone to Analog-to-Digital Converter (ADC) path and a stereo Digital-to-Analog Converter (DAC) to headphone (HP) path. AAD supports the detection and identification of 3-pole (headphone) and 4-pole (headset) jacks and allows the automatic pin order switching of MIC/GND on CTIA or OMTP headsets. It also supports automatic multiple button detection.

Benefits

  • GND/MIC polarity switch and multiple button detection for CTIA/OMTP audio jacks
  • 7.5mm2 package footprint enabling PCB space savings in area constrained applications
  • Capless headphone driver eliminates large AC coupling capacitors
  • Optimized ball-out conducive for low cost PCB manufacturing

Advanced Accessory Detection (AAD)

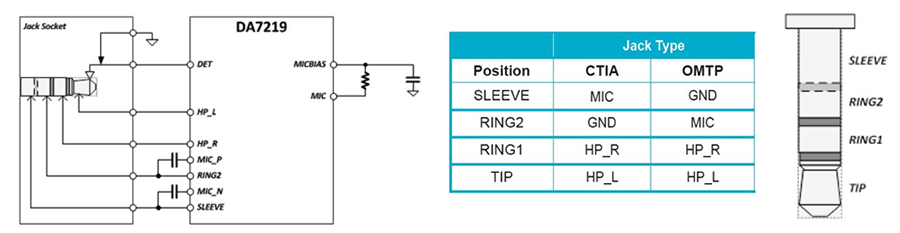

Advanced Accessory Detection

The AAD will detect a jack insertion/removal, detect the polarity of the jack (CTIA/OMTP), and will support the detection of impedance based buttons in parallel with the connected accessory microphone.

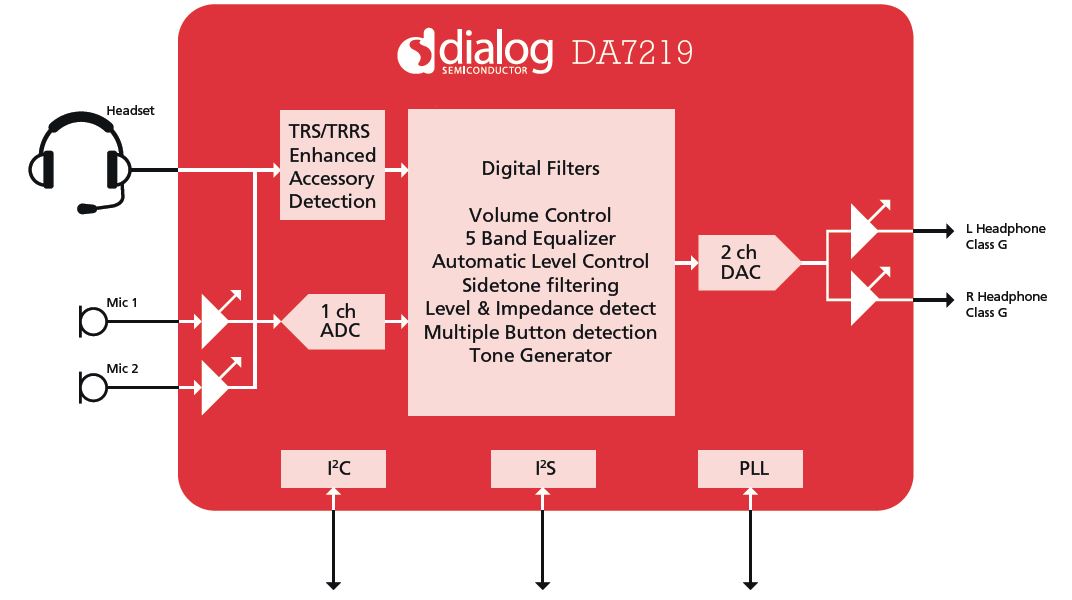

DA7219 Block Diagram
DA7219 Block Diagram
  • Android Wired Headset v1.1 compliant
  • High-performance mono microphone to ADC record path with 90dB SNR
  • ADC digital filters with Audio and Voice mode high-pass characteristics
  • Low noise microphone bias regulator with programmable output
  • High-performance stereo DAC to headphone playback path with 100dB SNR
  • DAC digital filters with Audio and Voice mode high-pass cutoff and 5-band equalizer
  • Advanced Accessory Detect supports
    • 3 and 4-pole jack detection
    • MIC/GND polarity switching (OMTP/CTIA jack types)
    • Multiple button detection
    • Headphone impedance testing
  • Microphone input with automatic level control
  • Digital sidetone path with gain
  • Digital tone generator
  • System controller for simplified pop-free startup and shut-down
  • Mixed sample rates of 24kHz ADC, 48kHz DAC supported from a single digital interface
  • Sample rates of up to 96kHz at 24-bit resolution
  • Shut-down mode for very low current consumption during standby
  • Phase-locked loop with WCLK tracking to generate system clock
  • 4-wire digital audio interface with support for I2S, TDM and other audio formats
  • 2-wire I2C compatible interface with support for High Speed mode up to 3.4MHz
  • 4.5mm x 1.6mm WLCSP RouteEasy™ package for low cost PCB manufacture

Applications

  • Chromebooks
  • Portable audio applications
  • Tablets and eReaders
  • Headphone accessories
  • Remote controllers
  • Gaming controllers

Documentation

= Featured Documentation
Type Title Date
Datasheet
DA7219 Datasheet
PDF 1.65 MB
Application Note
DA7219 Application Note
PDF 2.12 MB
Manual - Development Tools
DA7219 Evaluation Board User Guides
7Z 4.27 MB
Schematic
DA7219 PCB schematic layout and BOM
ZIP 2.49 MB
Product Brief
DA7219 Product Brief
PDF 1.13 MB
5 items

Design & Development

Software Downloads
Type Title Date
Software & Tools - Software
DA7219 SmartCanvas GUI Software
Log in to Download ZIP 60.35 MB
1 item

DA7219-EVAL

Evaluation
Learn More

Audio Codec with Advanced Accessory Detect Evaluation Kit

The DA7219-EVAL evaluation board has been designed to allow measurement and functional testing of the DA7219 ultra-low power audio codec with advanced accessory...

Featured Documents:
DA7219 Evaluation Board User Guides

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    DA7219-02VBA
    circleActive
    memory
    view_in_ar
    Buy Now
    		32-WLCSP Tape & Reel 1 1.043
