Overview
Description

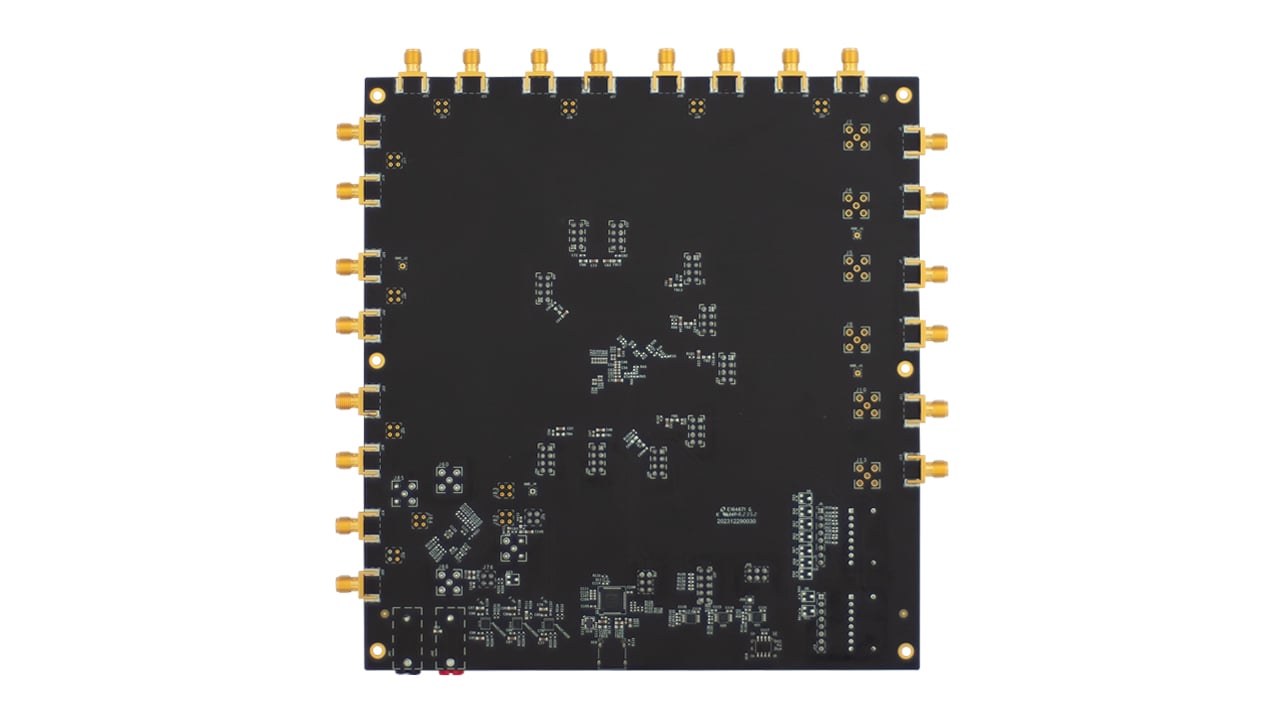

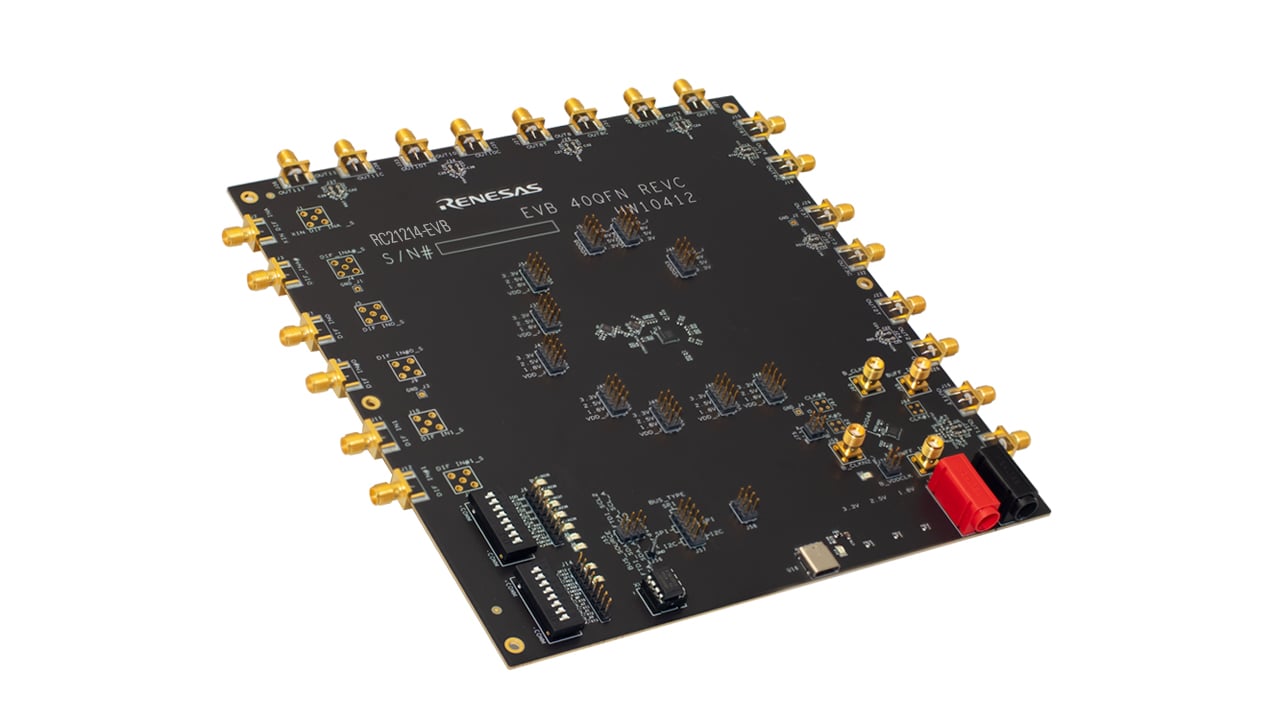

The RC21214-EVB evaluation board (EVB) is designed for evaluating the RC21214 clock generator in synthesizer mode for commercial automotive applications and PCIe Gen 1-6 compliance.
When the EVB is connected via USB to the computer running the Renesas Integrated Circuit Toolbox (RICBox™) software, the RC21214 can be configured in various frequencies with best-in-class commercial performance. The EVB can function in the temperature range of -40 °C to 105 °C and is capable of operating in VDD values of 3.3V. 2.5V, and 1.8V.
The RC21214 offers various features with a total of 8 pairs of differential outputs. Each pair of outputs can be programmed to LVCMOS, LVDS, and LP-HCSL style outputs. There are seven general purpose inputs/outputs (GPIOs) and two general purpose inputs (GPIs) to support output enables, configuration selection, and status outputs. Voltage levels can be set by jumpers. The RC21214 is ISO 9001 compliant, AEC-Q100 qualified, and provides support for the production part approval process (PPAP).
Features
- Crystal or crystal overdrive (REFIN) via SMA
- Available sense lines on crystal overdrive
- Test points on outputs for Hi-Z probes
- Jumper selectable voltage setting for 3.3V/2.5V/1.8V powered from USB
- Onboard I2C and SPI communication
- GPI/GPIO LED indicator and DIP switch
Applications
- Automotive Communication Gateway Platform
- Functional evaluation for customer configurations
- Infotainment
- Gateways
- Domain controllers
- Zone controllers
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 7.16 MB | |
| Manual - Hardware | PDF 1.56 MB | |
| Manual - Software | PDF 1018 KB | |
3 items
|
||
Design & Development
Related Boards & Kits
12-Output AutoClock Programmable Clock Generator Evaluation Board
The RC21212-EVB evaluation board (EVB) is designed for evaluating the RC21212 using clock generation in synthesizer mode for commercial automotive applications and PCIe...
