12-Output AutoClock Programmable Clock Generator Evaluation Board
The RC21212-EVB evaluation board (EVB) is designed for evaluating the RC21212 using clock generation in synthesizer mode for commercial automotive applications and PCIe...
Overview
Description
The RC2121 family of devices are high-performance programmable clock generators with added diagnostic features to support automotive applications. These RC2121 clock generators are ISO 9001 compliant, AEC-Q100 qualified, can function in the temperature range of -40 °C to 105 °C (Grade 2 equivalent), and provide support for the production part approval process (PPAP).
Features
- 169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)
- PCIe® Gen6 Common Clock (CC) 27fs RMS
- PCIe SRIS and SRNS support
- 1kHz to 650MHz (differential) and 1kHz to 200MHz (single-ended) outputs
- LVCMOS, LVDS, or Low-Power HCSL output types with simple AC coupling to LVPECL and CML. LP-HCSL integrates terminations
- Seven programmable general purpose input/outputs (GPIO)
- 1MHz I2C serial port
- Multiple configurations can be stored in internal one-time programmable (OTP) memory
- 1.8V and/or 3.3V operation
- IATF 16949 manufacturing support
- Package options:

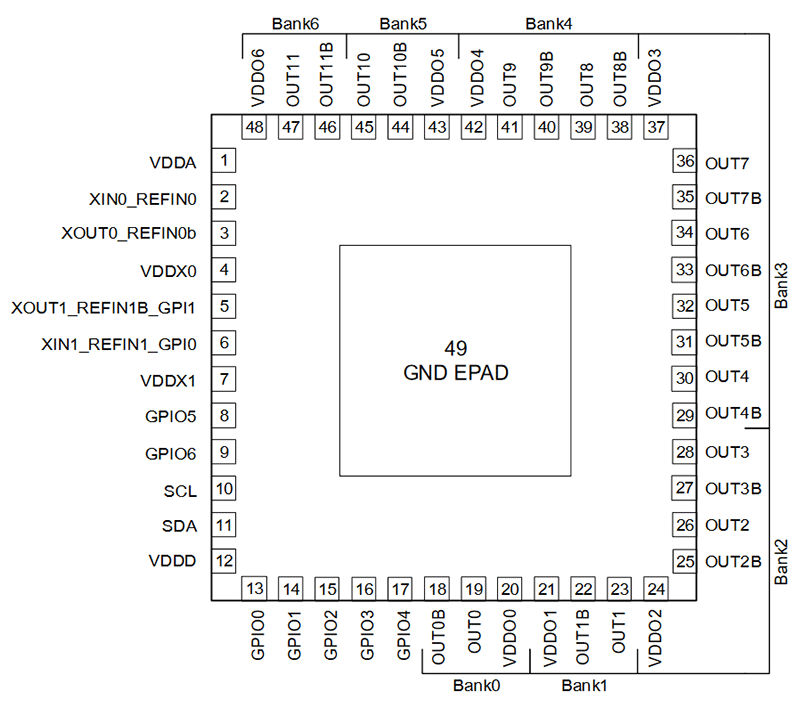

- 12 differential or 24 single-ended outputs
- 6mm x 6mm x 0.75mm, 48-QFN package
- RC21211: Single crystal
- RC21212: Dual crystal

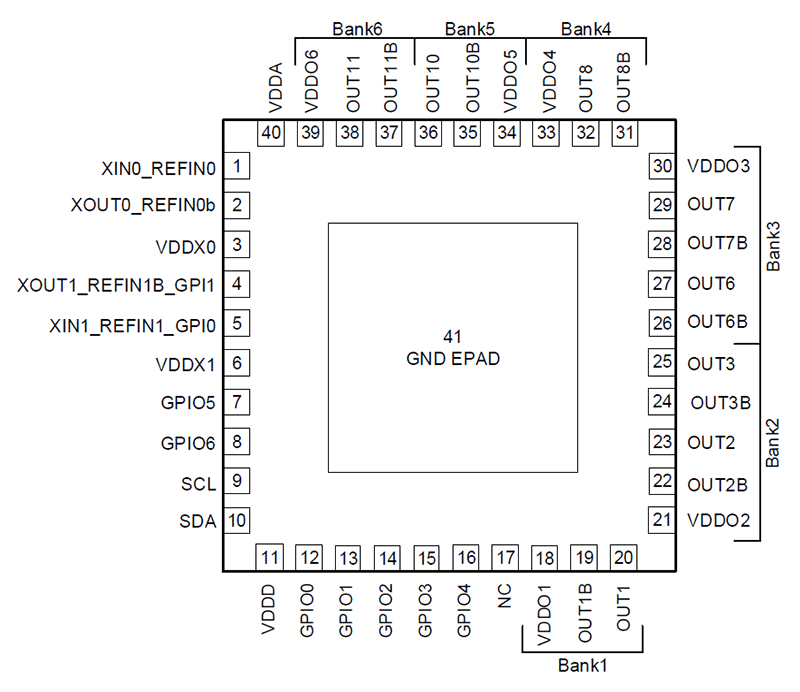

- 8 differential or 16 single-ended outputs
- 5mm x 5mm x 0.75mm, 40-QFN package
- RC21213: Single crystal
- RC21214: Dual crystal
- 12 differential or 24 single-ended outputs
Comparison
Applications
Applications
- Infotainment
- Gateways
- Domain controllers
- Zone controllers
