Overview
Description

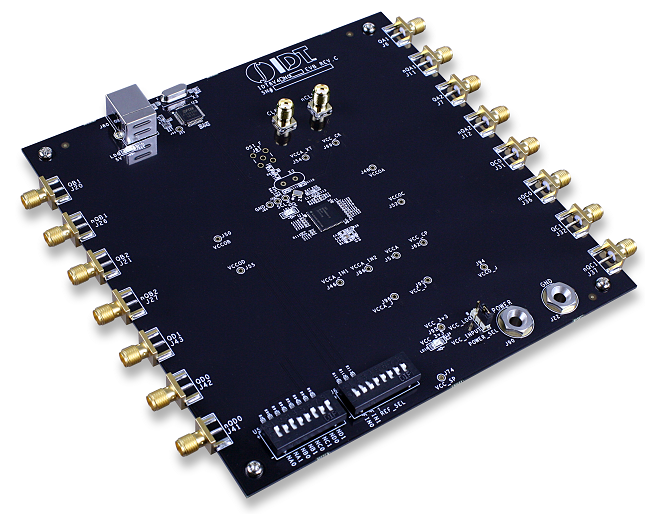

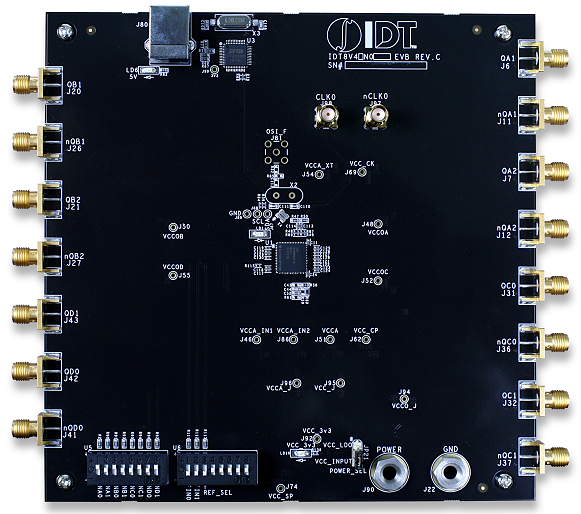

The EVK-8V49NS0412 evaluation board kit is a platform that is designed to help the customer evaluate Renesas' 8V49NS0412 and 8V49NS0312 FemtoClock® NG 12-output clock generator. When the board is connected to a PC running Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.
8V49NS0312 and 8V49NS0412 are two similar devices, the only difference is the frequency selection pin for different initial frequency plan.
Features
- Terminals for input clocks
- Selected output channels were supported – QA1, QA2, QB1, QB2, QC0, QC1, QD0, and QD1
- Supports LVPECL/LVDS output style and swing programmed by a graphic user interface
- Supports external power supply from connector or on board LDO regulator
- Output frequency can be selected by external DIP switches
- Software controlled with a graphical user interface
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.14 MB | |
| Application Note | PDF 348 KB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Timing Commander Timing Commander™ is an innovative Windows™-based software platform enabling system design engineers to configure, program, and monitor sophisticated timing devices with an intuitive and flexible graphical user interface (GUI).
|
Code Generator | Renesas |
1 item
|
||
Processing table
EVK-8V49NS0412 Preview Samples Available
Buy Now
|
Get Samples, |
