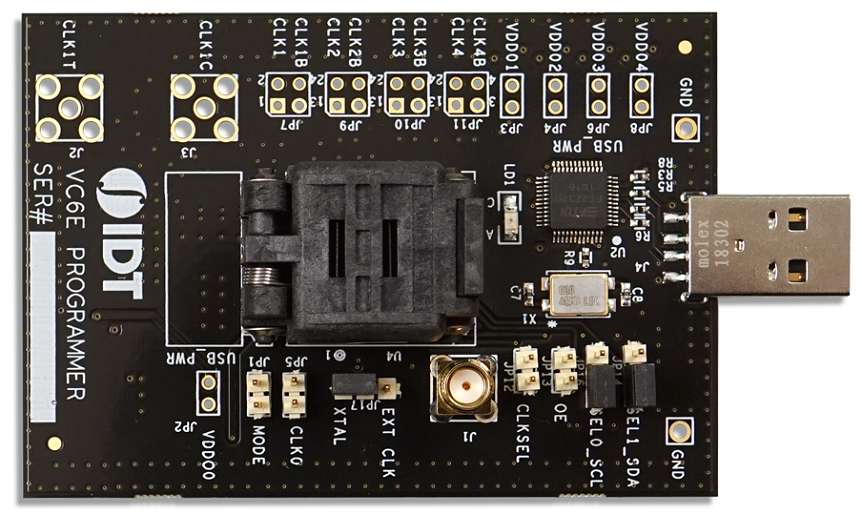

The VersaClock® 6E programmer board is made to ease the programming of 5P49V6965 and 5P49V6975 blank devices. With the on-board USB interface, Renesas Timing Commander™ GUI can be used to communicate with the blank device in the socket for configuration and programming. The board is compatible with older devices too including 5P49V6901, 5P49V6913, 5P49V6914, 5P49V5901, 5P49V5935, 5P49V5933.
Features
- Programmer board is powered using USB port
- Programmer board uses Timing Commander GUI – to program the blank parts
- USB port is the communication channel between the GUI and the VersaClock 6 – 5P49V69xx device in the socket.
- 20 pieces samples are included in the kit
