Overview

The RC22504A is a small, low-power timing component designed to be placed immediately adjacent to a PHY, switch, ASIC or FPGA that requires several reference clocks with jitter performance less than 100fs (max). The RC22504A can act as a frequency synthesizer to locally generate the reference clock or as a DCO for frequency margining or OTN clock applications.

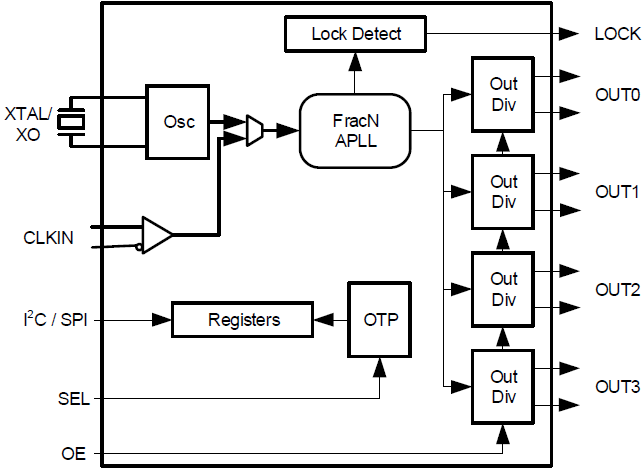

RC22504A - Block Diagram

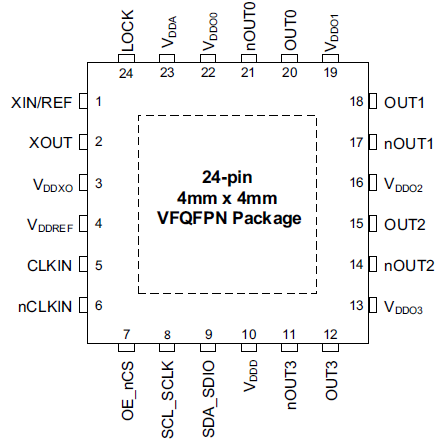

RC22504A - Pin Assignment
RC22504A - Block Diagram
RC22504A - Pin Assignment
  • Jitter below 100fs RMS maximum (10Hz to 20MHz)
  • PLL core consists of fractional-feedback Analog PLL (APLL)
    • Operates from a 25MHz to 80MHz crystal or XO
    • APLL frequency independent of input / crystal frequency
    • Operates as a frequency synthesizer or Digitally Controlled Oscillator (DCO)
    • DCO has tuning granularity of < 1ppb
  • Programmable status output
  • 4 differential / 8 LVCMOS outputs
    • Any frequency from 10MHz to 1GHz (180MHz for LVCMOS)
    • Programmable output buffer supports HCSL (DC-coupled), LVDS/LVPECL/CML (AC-coupled) or two LVCMOS
    • Differential output swing is selectable: 400mV to 800mV
    • Output clock phase individually adjustable in 100ps steps
    • Output Enable input with programmable effect
  • Supports up to 1MHz I2C or up to 20MHz SPI serial processor port
  • Can configure itself automatically after reset via internal customer-definable One-Time Programmable (OTP) memory with up to four different configurations
  • 4 × 4 mm 24-VFQFPN package

Documentation

Design & Development

Software & Tools
Renesas IC Toolbox (RICBox)
The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.
Downloads
Renesas IC Toolbox (RICBox) Software Manual
 Software Package Renesas
1 item
RC32504A_RC22504A - Evaluation Board

RC32504A-EVK

Evaluation
Learn More

FemtoClock™ 2 Evaluation Kit

This is the evaluation kit for the RC32504A and RC22504A point-of-use jitter attenuator and clock generators.  The board comes populated with an RC32504A device. The...

Featured Documents:
RC32504A/RC22504A Evaluation Board User Manual
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

This device is factory-configurable. Try the Custom Part Configuration Utility.
    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Range
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    RC22504A000GNK#BB0
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		VFQFPN 24 -40 to 85°C I Yes Tray 1 9.239 Get Samples,
    RC22504A000GNK#KB0
    circleActive
    memory
    view_in_ar
    		VFQFPN 24 -40 to 85°C I Yes Reel 1
