CPX3 Evaluation Kit for AC and DC over 48V (J70D1 with RX631)
For use in Japan, please use RTK0EE0003D02002BJ (J70D2).
The CPX3 Evaluation Kit J70D1 is a tool to evaluate the hardware and the software of Renesas' PLC modem...
Overview
Description
This power line communication evaluation kit for direct current (DC) power lines can be used to carry out software development and system evaluation using the R9A06G037 PLC modem IC. Two or more of this kit are necessary for evaluating PLC communication.
Features
- Supported MCU and PLC modem IC
- MCU Group: RL78/G13
- Part number of MCU mounted on board: R5F100GLAFB
- PLC modem IC: R9A06G037
- Part number of PLC modem IC mounted board: R9A06G037
- For detailed information about the microcontroller, see the RL78/G13 Group page.
- Board Configuration: The kit contains the complete circuit configuration necessary for DC power line communication, including analog front end (AFE), a microcontroller for control and a PLC modem IC.

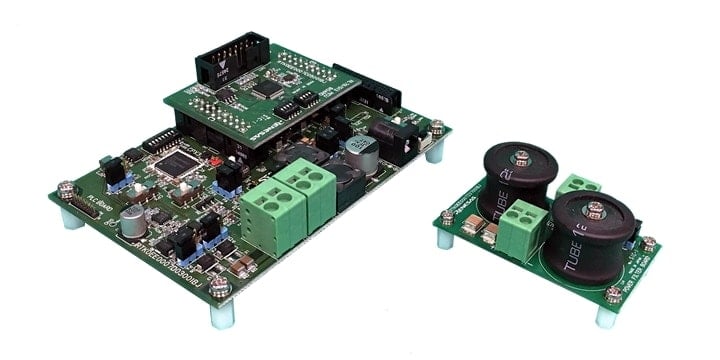

- The kit contains the following three boards.
- PLC board: PLC modem IC (R9A06G037) and AFE device (ISL15110)
- RL78/G13 MCU board: Microcontroller board for control (RL78/G13)
- Power filter board: PLC signal elimination filter for impedance upper and DC power source
- Main unit outer dimensions: 1) + 2) 105mm x 70mm x 32mm and 3) 40mm x 70mm x 35mm
- Supported frequencies:
- 35.9375kHz - 90.625kHz
- 98.4375kHz - 121.875kHz
- 154.6875kHz - 403.125kHz
- 154.6875kHz - 487.5kHz
- Power line voltage: DC16 - 48V
- Power feed:
- Line feed: Feed from power supply to communication line (DC power line) (DC16 - 48V, 0.5A or more is recommended).
- External feed: External feed via AC adapter (DC16 - 48V, 0.5A or more is recommended).
