The RXS2448 is a RapidIO®, multi-port switch that is compliant with the Serial RapidIO Interconnect Specification (Revision 3.2). The switch fabric supplies a non-blocking bandwidth of 600Gbps for up to 24 ports and 48 lanes. The packet transfer performance through the fabric is optimized through buffer management schemes and configurable queuing modes. The RapidIO switch supports standard RapidIO routing functionality, including unicast and up to 256 multicast groups.
The RXS2448 supports flow control based on eight separate priorities that contains a queue aging function to ensure that high-priority traffic does not starve low-priority traffic under congestion. The device provides extensive accessibility to create an optimal configuration by allowing access to all features of the switch via any port.
Learn more about RapidIO Development Systems
Features
- Compliant to Serial RapidIO 3.2 Specification (10xN, Gen 3)
- 48 lanes, with up to 12x4, 24x2, 24x1 port configurations
- Full-duplex 600Gbps non-blocking bandwidth
- Port-to-port latency approaching 100ns
- 1.25, 2.5, 3.125, 5.0, 6.25, 10.3125, and 12.5Gbaud
- Supports any topology for a highly scalable system
- SerDes supports long-reach (100cm + 2 connectors)
- 33mm x 33mm FCBGA
Comparison
Applications
- High-performance computing
- Wireless
- Defense and aerospace

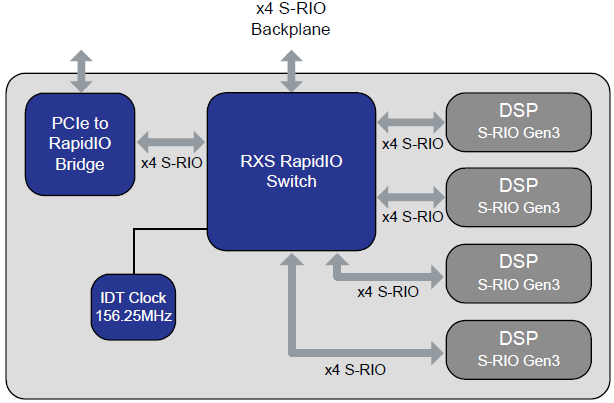

- Video and imaging
Design & Development
Software & Tools
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Other | ZIP 2.92 MB | |
| Software & Tools - Other | ZIP 2.92 MB | |
| Software & Tools - Other | ZIP 37.10 MB | |
| Software & Tools - Other | ZIP 37.10 MB | |
| Software & Tools - Software | PDF 1.63 MB | |
| Software & Tools - Other | H 195 KB | |
| Software & Tools - Other | ZIP 12 KB | |
| Software & Tools - Other | ZIP 12 KB | |
8 items
|
||
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| FCBGA | 1024 | I | Yes | Tray | 4 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
RapidIO 10xN (Gen 3) Switches
Discover IDT's RapidIO 10xN compliant devices (acquired by Renesas) offering up to 50Gbps port speeds and 600Gbps non-blocking aggregate bandwidth. These switches, such as the RXS family, boast 100ns latency, making them ideal for 4G LTE-Advanced, 5G mobile infrastructure, and real-time computing. With superior energy efficiency and fault tolerance, they find applications in imaging, aerospace, industrial control, and defense. The RXS family includes the RXS2448 with 24 ports and 48 lanes, and the RXS1632 with 16 ports and 32 lanes.
