RH850/P1X-C 144pin Piggyback Board of RH850 Evaluation Platform
The Y-RH850-P1XC-144PIN-PB-T1-V1 Piggyback board supports all devices of the RH850/P1L-C and RH850/P1M-C series in 144pin-package. It can be used standalone or in...
Overview
Description

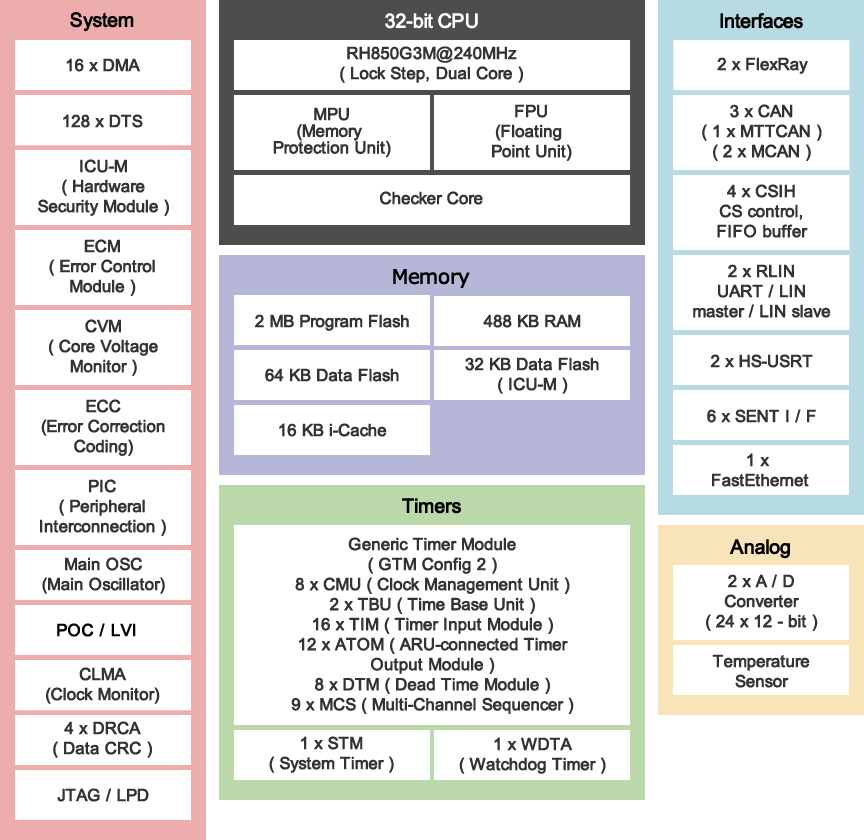

The RH850/P1M-C Series is the mid-end version of the RH850/P1x Series of 32-bit automotive microcontrollers (MCUs) This series combines functional safety technology, security technology, and vehicle control network technology on a single chip, which are the keys to realizing safe vehicle control. It features 32-bit RH850G3M lockstep dual core CPUs, security technology, Code Flash, Data Flash, RAM modules, DMA controllers, many communication interfaces that are used in automotive applications, A/D converters, timer units, etc. It is oriented to the automotive applications which comply with the ISO 26262 functional safety standard.
Features
- CPU: G3M core, Max. 240MHz
- Voltage: 3V to 3.6V
- Package: 292-pin FBGA, 144-pin LQFP
- Memory: SRAM Max. 448KB, Program Flash Max. 2MB
- Timer: 16-bit Timer (ch) x 28, Watchdog Timer (ch) x 1, STM, GTM(ARU, CMU, TBU, ICM, CMP, MON, DTMx2unit, MCS)
- PWM: PWM Output x 12, 3-phase PWM Output Function
- Analog function: 12-bit A/D Converter (ch) x 24
- On-chip Oscillator Freq. (MHz): 16MHz
- Others: PLL, Power-On Reset
Comparison
Applications
Applications
- Chassis and safety
Documentation
Functional Safety and Security documentation can be released under NDA. Request Documents
- Functional Safety Documentation
- P1M-C ICUM User's Manual
- Basic Security User's Manual
- Secure Watchdog Timer User's Manual
- RH850G3K User's Manual: Software Rev1.20
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| RH850 Multicore Model-Based Environment [Embedded Target for RH850 Multicore] The Embedded Target for RH850 Multicore is a RH850 model-based multicore environment that simplifies complex driving control for the autonomous-driving era. In addition to the multicore support of the PILS tool for automatic configuration of environments, Embedded Target for Renesas CS+, it can also be interlinked with a model-based parallelization tool from eSOL Co., Ltd.
|
Model-Based Development | Renesas |
| Renesas MCAL Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package.
|
Software Package | Renesas |
| Green Hills Multi Multi development environments allow to quickly develop, debug, test, and optimize embedded and real-time applications. The Green Hills optimizing compilers generate the smallest and fastest code from C, C++, and Ada.
|
IDE and Coding Tool | Green Hills Software LLC |
| IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench provides extensive support for RH850 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
| Flash Access Driver (FAD) The Flash Access Driver (FAD) provides simple operation as an API (FAD function) to handle flash memory operations by calling the FAD functions within the application.
|
On-chip Flash Memory | Renesas |
| Green Hills MULTI Device-Support-Packages Green Hills MULTI Device-Support-Packages include all device specific files to be used with the MULTI IDE.
|
IDE and Coding Tool | Renesas |
|
8 items
|
||
Sample Code
Boards & Kits
RH850/P1X-C 156pin Piggyback Board of RH850 Evaluation Platform
The Y-RH850-P1XC-156PIN-PB-T1-V1 Piggyback board supports all devices of the RH850/P1M-C series in 156pin-package. It can be used standalone or in combination with a...
Featured Documents:
RH850/P1X-C 292pin Piggyback Board of RH850 Evaluation Platform
The Y-RH850-P1XC-292PIN-PB-T1-V2 Piggyback board supports all devices of the RH850/P1M-C and RH850/P1H-C series in 292pin-package. It can be used standalone or in...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 1 + 1 | 240 | 448 | 2048 | 64 | BGA292 | -40 to 150°C | 24 | No | 3.3 | No | 3 | Yes | 2 | 4 | 2 | 6 | ||||||
| 1 + 1 | 240 | 448 | 2048 | 64 | QFP144 | -40 to 150°C | 20 | No | 3.3 | No | 3 | Yes | 2 | 4 | 2 | 6 | ||||||
| 1 + 1 | 240 | 448 | 2048 | 64 | BGA156 | -40 to 150°C | 16 | No | 3.3 | No | 3 | Yes | 2 | 4 | 2 | 4 | ||||||
| 1 + 1 | 240 | 448 | 2048 | 64 | BGA292 | -40 to 150°C | 24 | No | 3.3 | No | 3 | Yes | 2 | 4 | 2 | 6 | ||||||
| 1 + 1 | 240 | 448 | 2048 | 64 | QFP144 | -40 to 160°C | 20 | No | 3.3 | No | 3 | Yes | 2 | 4 | 2 | 6 |
