RH850/U2A 144pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 144pin Piggyback Board supports all devices of the RH850/U2A series in 144pin-package. It can be used standalone or in combination with a mainboard of the...
Overview
Description

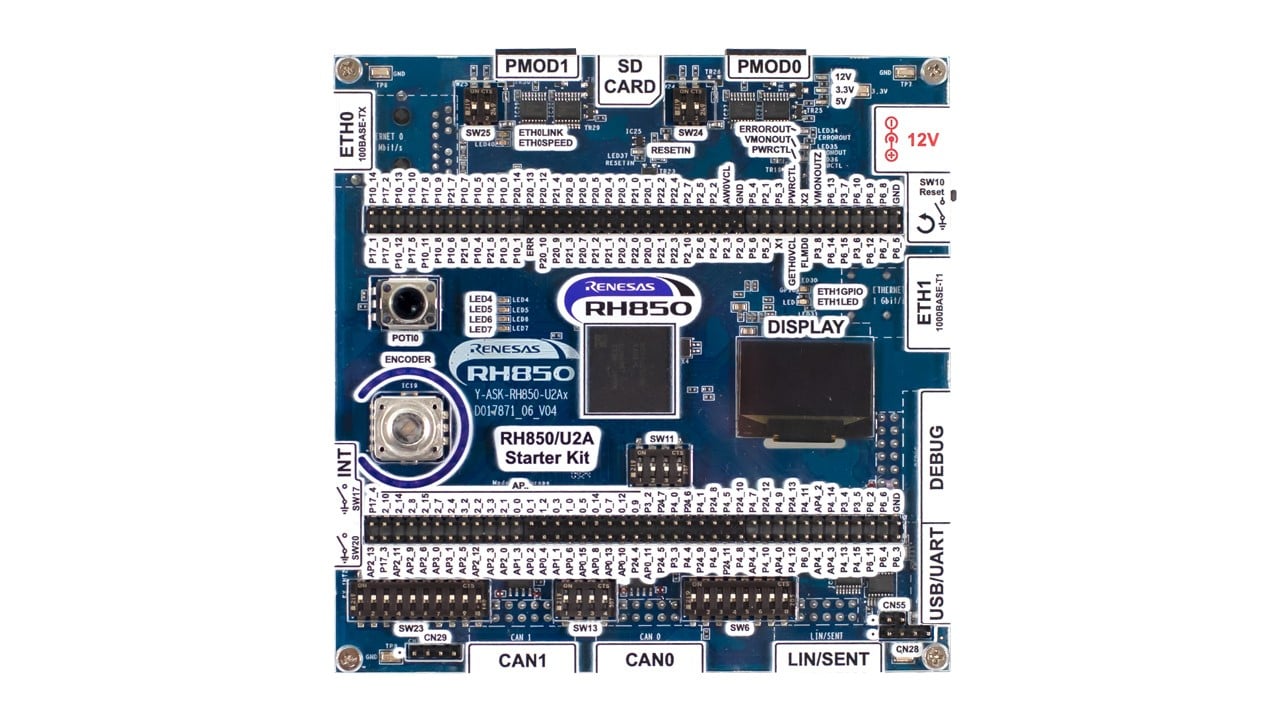

The RH850/U2A Starter Kits serve as a simple and easy to use platform for evaluating the features and performance of Renesas 32-bit RH850/U2A microcontrollers.
Features
- Single board power supply (12V) with onboard voltage regulator
- 14-pin LPD/JTAG Debug-port for on-chip debugging and flash memory programming
- Pin headers for direct access to most microcontroller pins
- External clock circuit with 20 MHz crystal resonator
- Two Ethernet ports [1x 1000Base-T1, 1x 100Base-TX]
- Two CAN-FD interfaces
- One combined LIN/SENT interface
- Two PMOD connectors providing I2C/SPI connectivity in various standards
- One USB-C/UART1 interface for PC terminal communication
- 128x64 OLED graphic display
- SD Card Slot for eMMC use
- Reset switch, two interrupt push buttons
- 16 signal LEDs connected via CSI/LED driver
- 4 general-purpose signal LEDs
- One potentiometer for analog signal input
- Rotary encoder with RGB LED illuminated shaft
- Operating temperature from 0 °C to +40 °C
Applications
Applications
- Zone control ECU
- Domain control ECU
- Communication gateway
- Chassis & safety
- Energy management
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 3.56 MB | |
| Quick Start Guide | PDF 1.27 MB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | Renesas |
| Green Hills Multi Multi development environments allow to quickly develop, debug, test, and optimize embedded and real-time applications. The Green Hills optimizing compilers generate the smallest and fastest code from C, C++, and Ada.
|
IDE and Coding Tool | Green Hills Software LLC |
| IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench provides extensive support for RH850 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
|
4 items
|
||
Sample Code
Related Boards & Kits
RH850/U2A 156pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 156pin Piggyback Board supports all devices of the RH850/U2A series in 156pin-package. It can be used standalone or in combination with a mainboard of the...
Featured Documents:
RH850/U2A 176pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 176pin Piggyback Board supports all devices of the RH850/U2A series in 176pin-package. It can be used standalone or in combination with a mainboard of the...
Featured Documents:
RH850/U2A 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 292pin Piggyback Board supports all devices of the RH850/U2A series in 292pin-package. It can be used standalone or in combination with a mainboard of the...
RH850/U2A 373pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 373pin Piggyback Board supports all devices of the RH850/U2A series in 373pin-package. It can be used standalone or in combination with a mainboard of the...
RH850/U2A 516pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 516pin Piggyback Board supports all devices of the RH850/U2A series in 516pin-package. It can be used standalone or in combination with a mainboard of the...
Featured Documents:
Processing table
Y-ASK-RH850U2A16 Active |

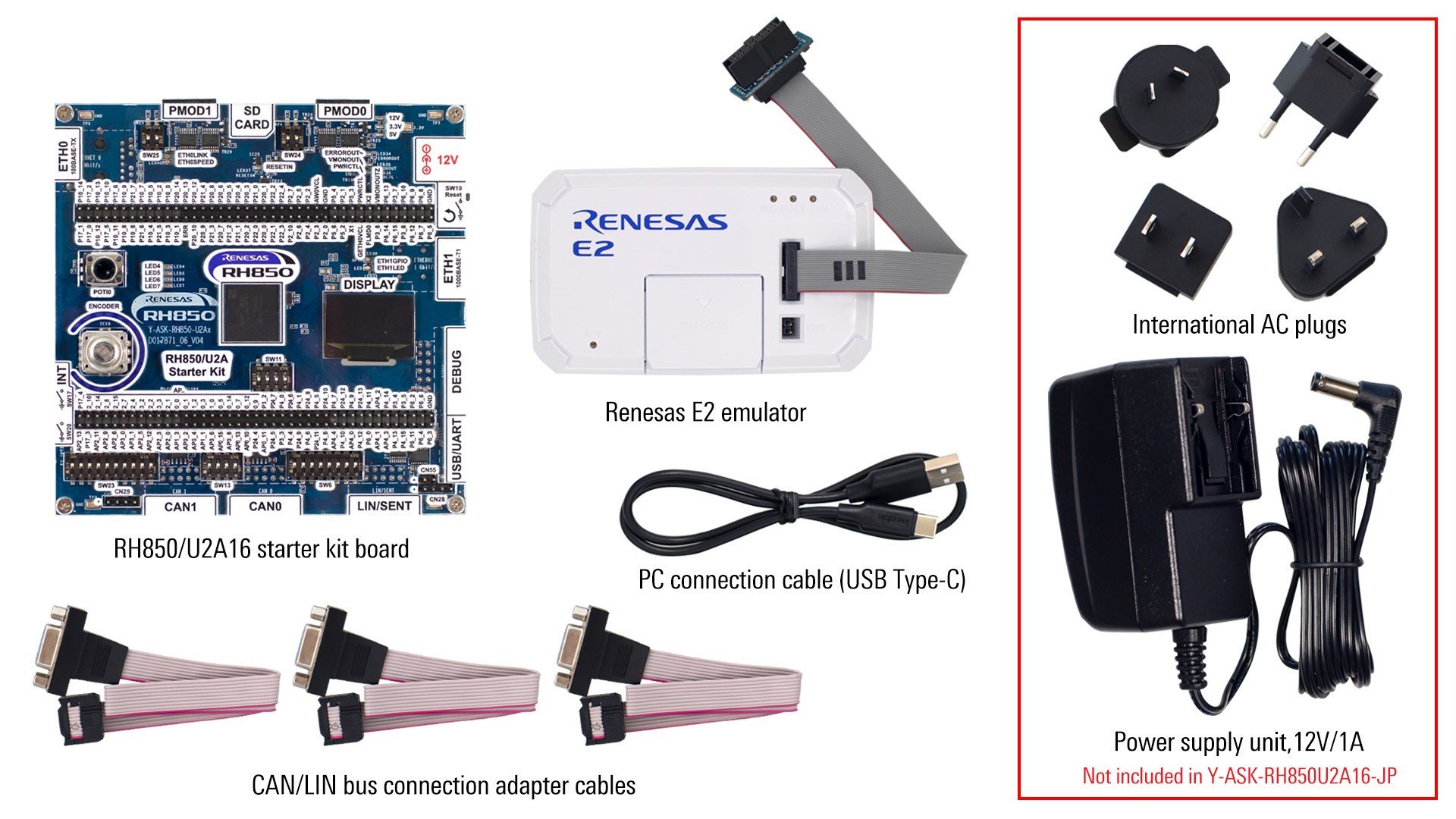

Power supply included | |
