Overview
Description

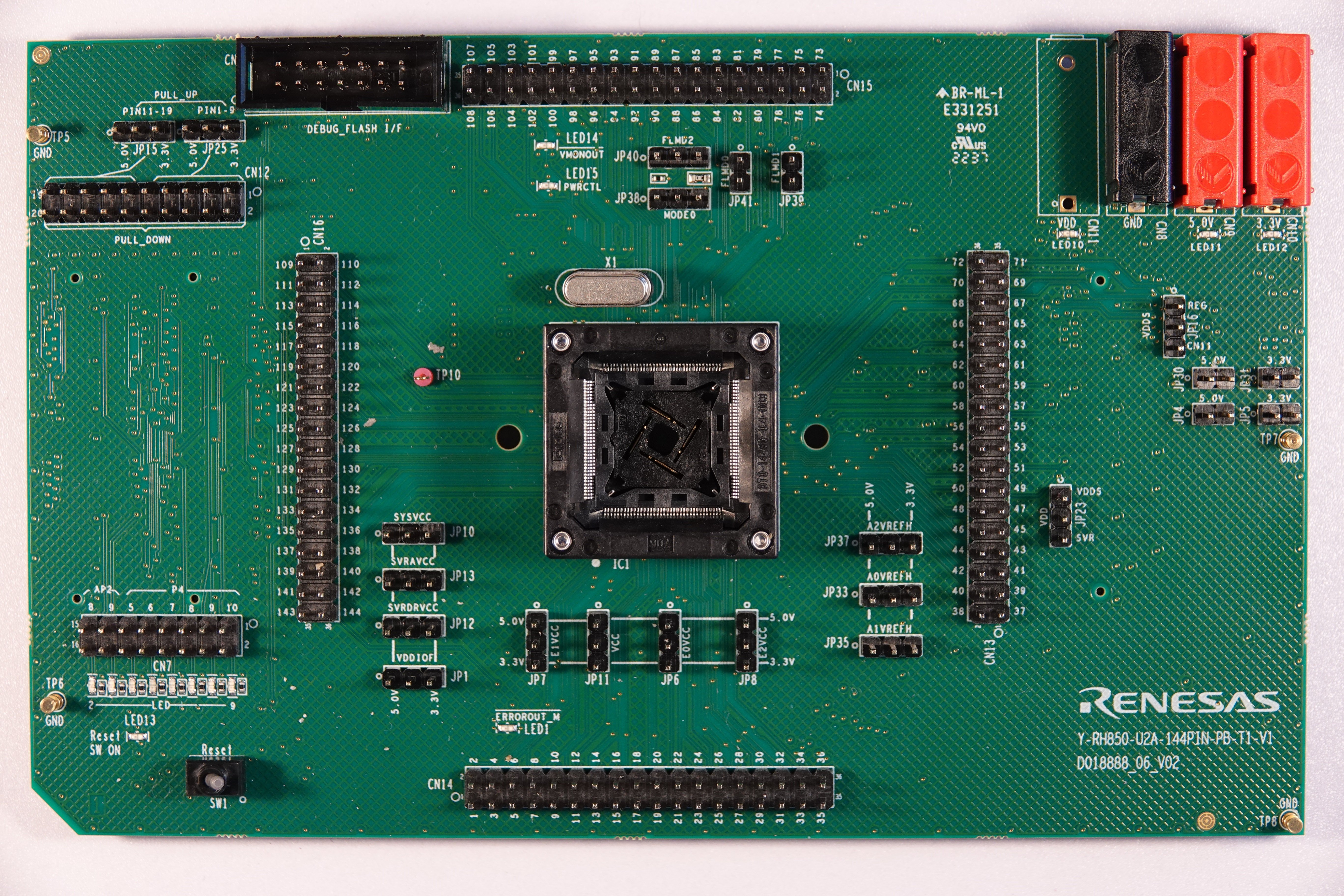

The RH850/U2A 144pin Piggyback Board supports all devices of the RH850/U2A series in 144pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform for evaluating features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 Evaluation Platform.
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
- Device core voltage VDD either from onboard voltage regulator or via 4mm Banana Jack (red)
- 14pin Renesas Debug Connector to connect a Renesas or 3rd party emulator
- offering LPD (4pin) and JTAG debug connection support
- offering serial Flash programming support for the RH850 on-chip Flash memory.
- Each pin of the device is accessible via 2.54 mm pitch connector (double row).
- External clock circuit
- with an exchangeable 16, 20, 24, or 40 MHz Crystal Resonator
- 8x Signal LEDs, 3x Power Supply LEDs (5.0V, 3.3V 1.12V)
- Reset circuit/switch.
- Jumpers for device mode selection.
