Overview
Description

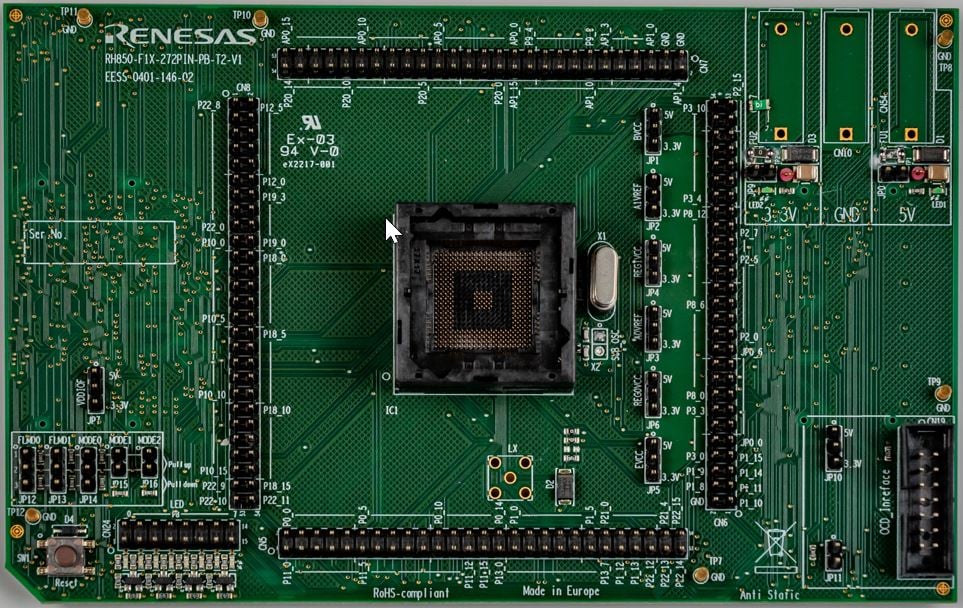

The RH850/F1x 272pin Piggyback Board supports all devices of the RH850/F1KM-S4 and RH850/F1KH-D8 series in 272pin-package. It can be used standalone or in combination with a mainboard of the RH850 Evaluation Platform. The modular RH850 Evaluation Platform consisting of mainboards and piggyback boards is a platform for evaluating the features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 Evaluation Platform.
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
- External clock circuit
- with an exchangeable 8, 16, or 20 MHz Crystal Resonator
- sub clock 32.768 KHz
- 8x Signal LEDs
- 14pin Renesas Debug Connector to connect a Renesas or 3rd party emulator
- offering LPD (1pin/4pin) and JTAG debug connection support
- offering serial Flash programming support for the RH850 on-chip Flash memory.
- Each pin of the device is accessible via 2.54 mm pitch connector (single row).
- Reset circuit/switch.
- Jumpers for device mode selection.
