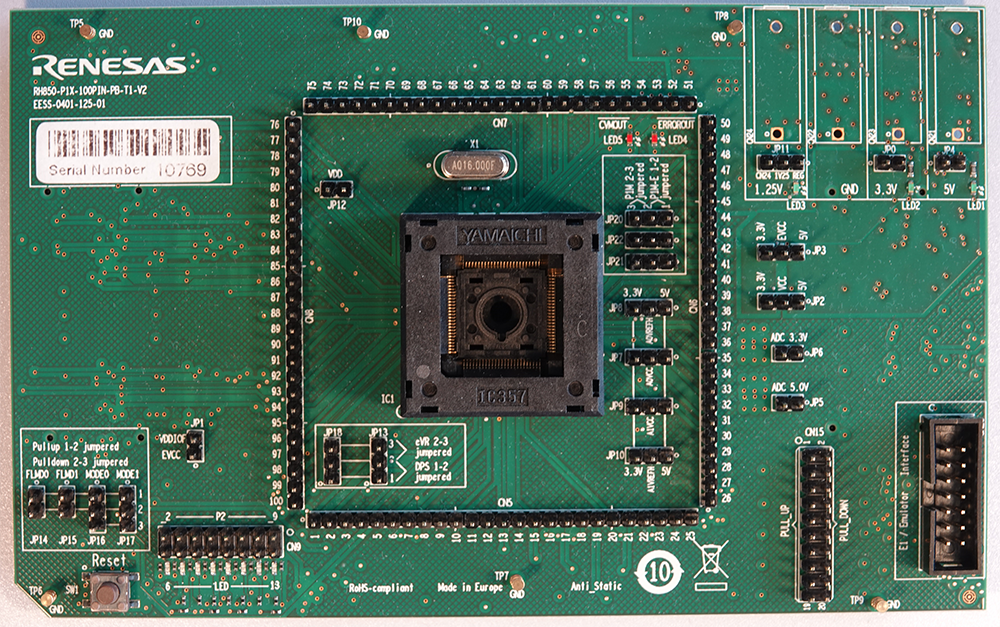

The Y-RH850-P1X-100PIN-PB-T1-V2 Piggyback Board supports all devices of the RH850/P1M and RH850/P1M-E series in 100pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform for evaluating the features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 evaluation platform
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- Four banana jacks (4mm, 3x red, 1x black) for supply of 1.2V core voltage and 3.3V or 5.0V device voltage
- Supports devices with single power supply (eVR, embedded voltage regulator) or dual power supply (DPS, external supply of core voltage)
- General purpose signal LEDs [8x yellow]
- Reset circuit/switch
- 14pin debug connector for Renesas or 3rd party emulator connectivity
- offering LPD (1pin/4pin) and JTAG debug connection support
- offering serial flash programming support for the RH850 on-chip flash memory.
- Each pin of the device is accessible via 2.54 mm pitch connector (double row)
- External clock circuit with an exchangeable 16MHz crystal resonator
- Jumpers for device mode selection
