RH850 Generation 1 Base-Mainboard of RH850 Evaluation System
The RH850 Generation 1 Base-Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and...
Overview
Description

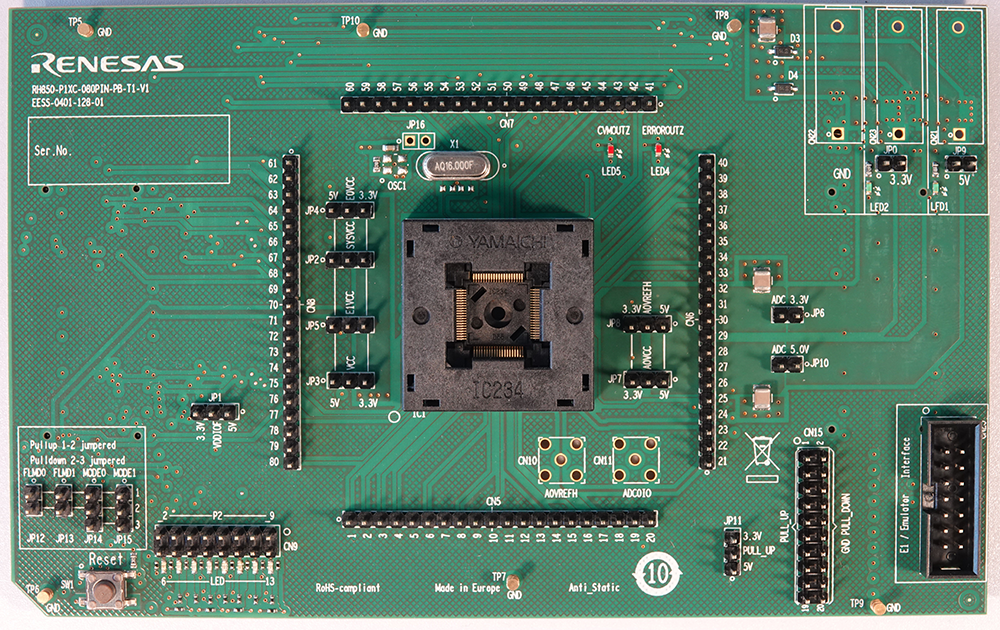

The Y-RH850-P1XC-080PIN-PB-T1-V1 Piggyback board supports all devices of the RH850/P1L-C series in 80pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform for evaluating the features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 evaluation platform.
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately].
- Three banana jacks (4mm, 2x red, 1x black) for supply of 3.3V device voltage and 1.2V core voltage.
- The option to supply the core voltage from the onboard voltage regulator is also supported.
- General purpose signal LEDs [8x yellow].
- Reset circuit/switch.
- Jumpers for device mode selection.
- 14-pin debug connector for Renesas or 3rd party emulator connectivity
- offering LPD (4pin) and JTAG debug connection support
- offering serial flash programming support for the RH850 on-chip flash memory.
- Each pin of the device is accessible via 2.54 mm pitch connector (single row).
- External clock circuit with an exchangeable 16MHz crystal resonator.
Applications
Documentation
