Overview
Description

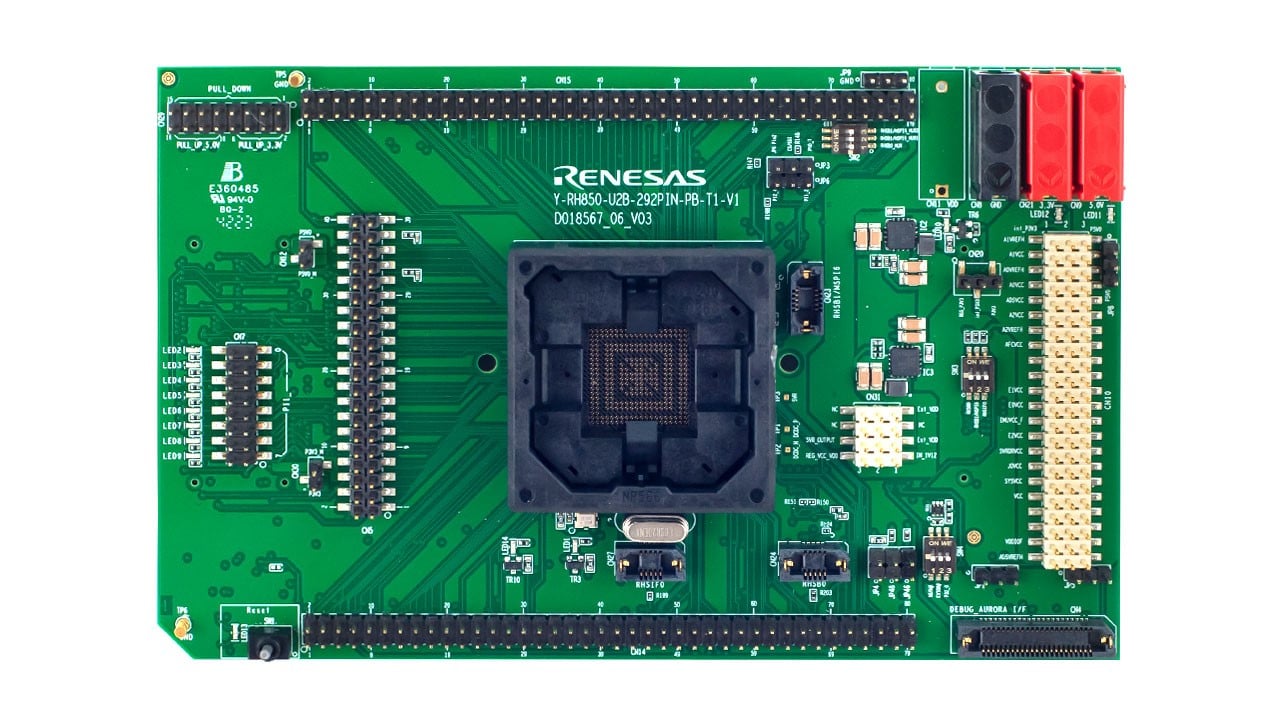

The RH850/U2B 292pin piggyback board supports all devices of the RH850/U2B series in 292pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform for evaluating features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 Evaluation Platform.
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
- Device core voltage VDD either from onboard voltage regulator or via 4mm Banana Jack (red)
- 46pin Aurora Debug Connector to connect a Renesas or 3rd party emulator

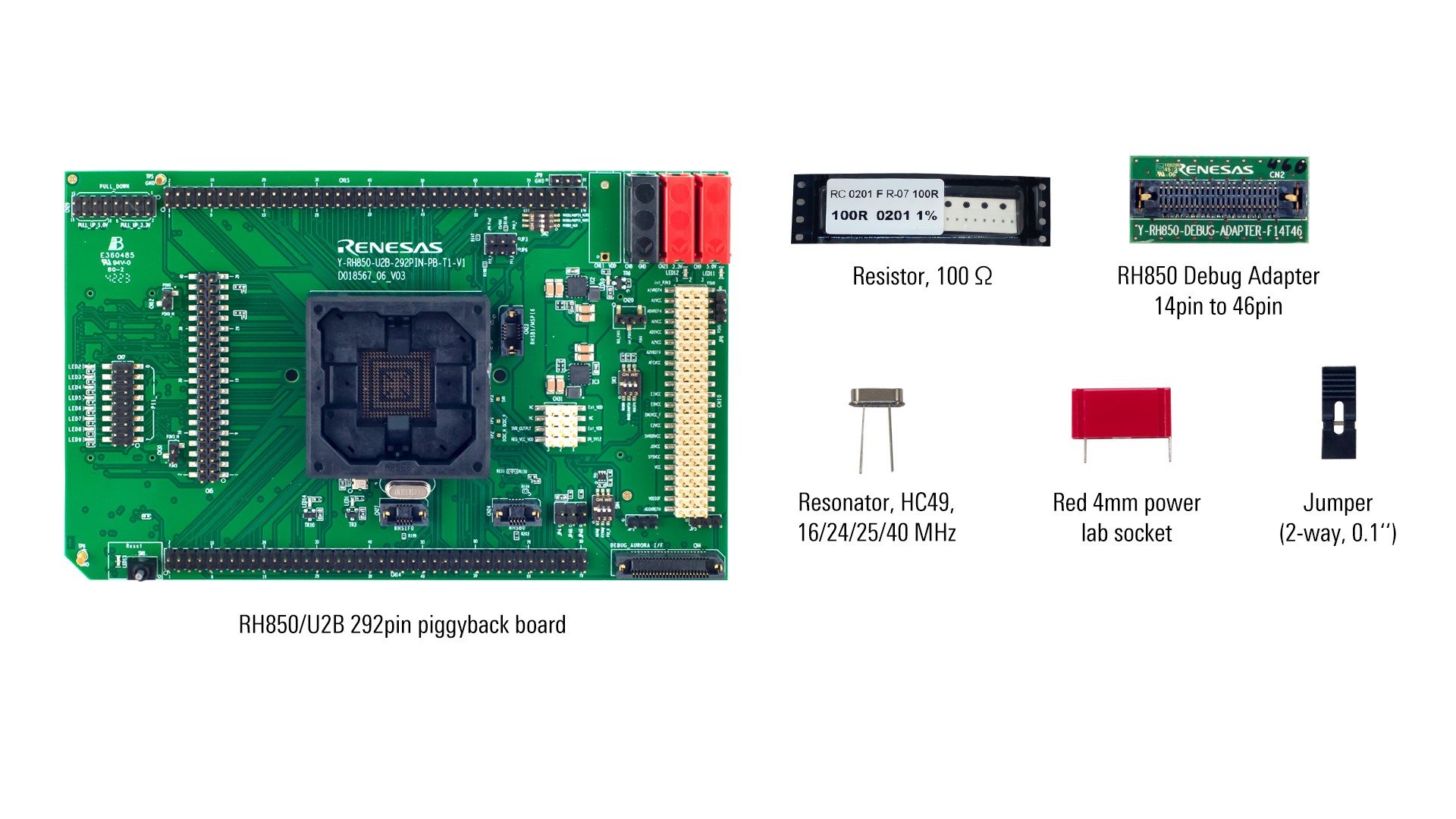

- To connect the E2 OCD emulator use the included 46pin to 14pin adapter Y-RH850-DEBUG-ADAPER-F14T46
- Offering serial Flash programming support for the RH850 on-chip Flash memory.
- On-board interface connector for
- Renesas High-Speed Serial I/F (RHSIF)
- Renesas High-Speed Bus (RHSB)
- Multichannel Serial Peripheral Interface (MSPI)
- Each pin of the device is accessible via 2.54mm pitch connector (double row).
- External clock circuit with an exchangeable 16, 20, 24, 25, or 40 MHz crystal resonator
- 8x Signal LEDs, 3x Power Supply LEDs (5.0V, 3.3V 1.12V)
- Reset circuit/switch.
- Jumpers for device mode selection.
Applications
Applications
- Zone control ECU
- Domain control ECU
- Communication gateway
- Vehicle motion applications:
- xEV, ICE, TCU
