Overview
Description
Software and hardware package for realizing Functional Safety over EtherCAT (FSoE) slave function.
- To overcome the challenges of evaluating and developing an FSoE system easier and faster
- Best optimized BOM cost by integrating EtherCAT + FSoE Slave function with two chips
- Allows evaluation of Renesas’ IEC 61508 Functional Safety Solution FSoE Reference Software for RX MCU
- Keeping flexibility to connect customers' non-safety system
What is inside:
- Two-chip, RX72M and RX23T configuration, functional safety reference board (user manual, schematics, and BOM list)
- RX FSoE Reference Software (scan QR code inside the kit)
- Software development handbook

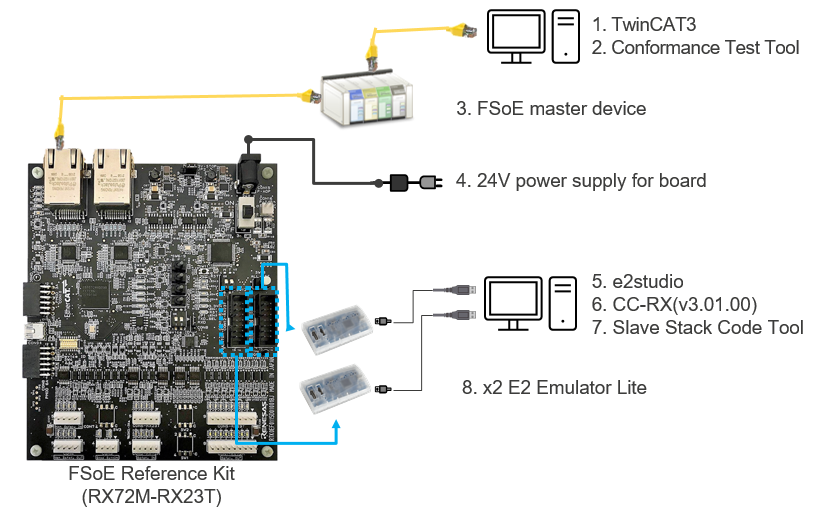

Plug into FSoE master device and other tools to set up your FSoE slave environment (not included in the kit)
Requires a commercial license agreement when using the software in the customer’s final product.
Features
- Hardware Functionality
- HFT = 1
- No external network communication IC is needed. Coexist with EtherCAT slave communication by RX72M built-in EtherCAT slave controller and FSoE functions.
- Both RX72M and RX23T have dedicated ICE connectors for software development. LEDs to check Safety/Non-Safety data in/out.
- Software and Documents (scan QR code inside the kit)
- Software packages to run FSoE Remote I/O system
- Sample software for RX72M-RX23T FSoE Development Kit
- Sample projects for FSoE Remote IO System (emergency stop switch control system, safety input port control system, and analog sensor input)
- Software developer’s handbook: Guidelines on how to use RX FSoE Development Kit.
- Software packages to run FSoE Remote I/O system
Applications
- Functional safety application for HFT = 1 and SIL3 criteria under IEC 61508 standard such as:
- Primary designed to fit Safety Remote IO
- Other safety applications e.g., AC drive/GP inverter, PLC, and sensors
- Target market segment: Industrial Automation (Factory Automation, Process Automation), Building Automation
