Overview
Description

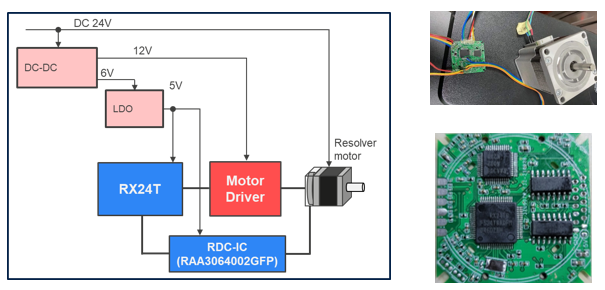

The Etouch high-resolution position motor control solution is based on Renesas' RX24T and RDC (Resolver-to-Digital Converter) IC. The solution provides high resolution, environmental resistance, low sound noise and vibration, low power, low heat, and high acceleration/deceleration response.
Features
- Resolver control system based on Renesas RX24T MCU and RDC IC
- Small PCB footprint fits into small motors to output high-resolution position
- High-speed response, follow-up quickly for the drastic angle change for step input
- High resolution motor position, above 14-bit resolution
- Environmental resistance of the resolver, fit a wider range of applications
Comparison
Applications
Applications
- Power assistant bicycle
- Automatic guided vehicle (AGV)
- Robot
- 3D printer
- General-purpose (GP) inverter
- Stepping motor
- Other motor applications
