Overview
Description

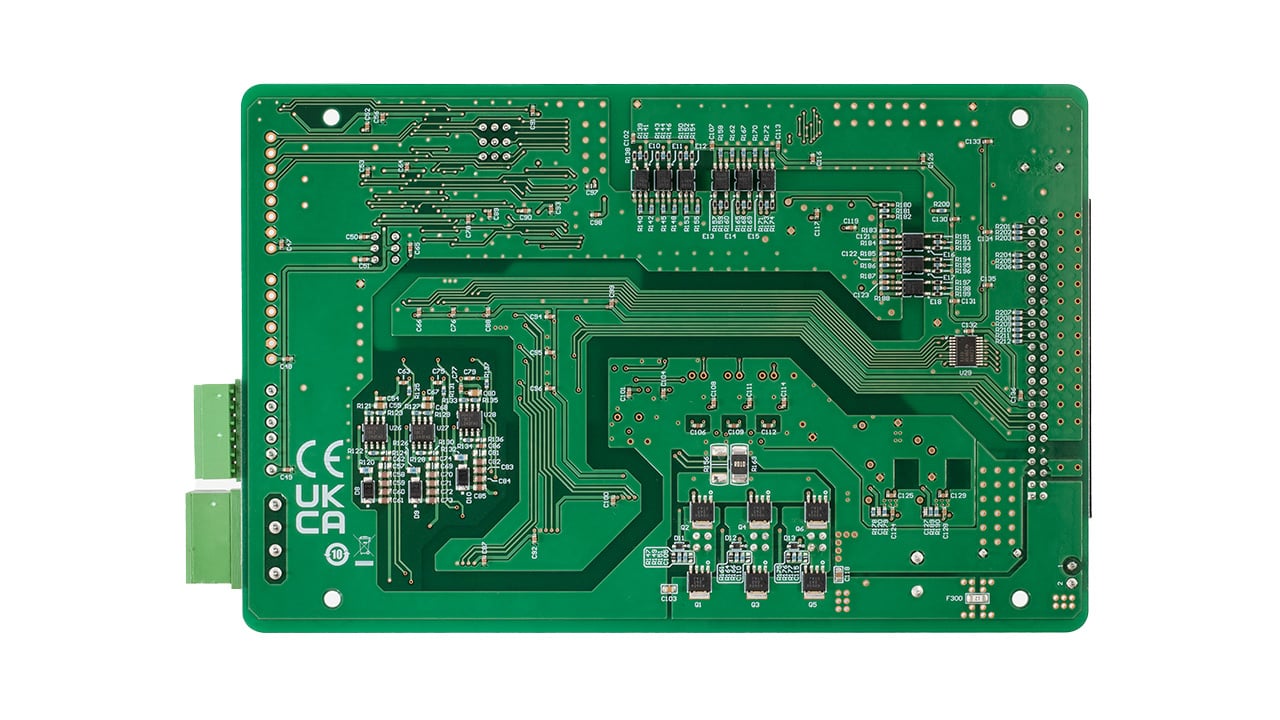

The RZ/T Series Inverter Board Kit (P/N: RTK0EM0000S05010BJ) is an inverter board that allows users to evaluate motor control using BLDC motor with ease. This product supports absolute encoder and incremental encoder. By using in combination with a compatible CPU board, users can immediately start evaluating motor control.
Supported CPU board: Evaluation Board Kit for RZ/T2H (P/N: RTK9RZT2H0S00000BJ)
Features
- Power supply voltage: DC 24V
- Equipped with inverter circuit
- Supports current sensing (3-shunt delta-sigma modulator)
- Supports incremental encoder x1 and absolute encoder x2
- Detects overcurrent
- Includes BLDC motor (P/N: TSM3101N2001E020 Made by Tamagawa Seiki)
Applications
- Industrial AC Drives
- Industrial Servo Drives
- Industrial Robotics
