Evaluation Board Kit for RZ/Five MPU
The RZ/Five evaluation kit (EVK) is ideal for evaluating and developing with the Renesas RZ/Five MPU. The EVK includes the RZ/Five SMARC v2.1 System on Module (SoM) and...
Featured Documents:
Overview
Description

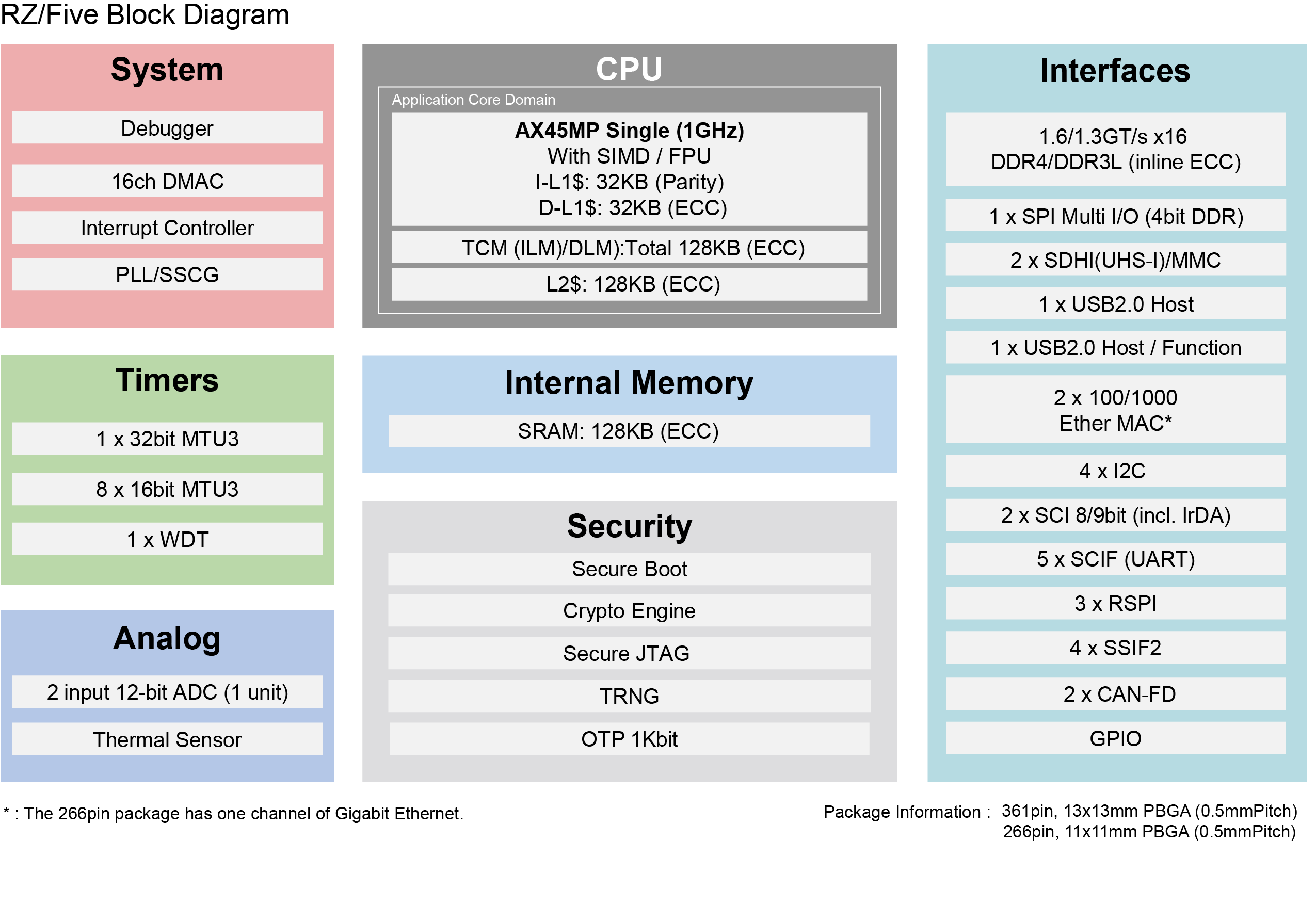

The RZ/Five microprocessor includes a RISC-V CPU Core (AX45MP Single) 1.0 GHz, 16-bit DDR3L/DDR4 interface. And it also has many interfaces such as Gbit-Ether, CAN, and USB 2.0, making it ideal for applications such as entry-class social infrastructure gateway control and industrial gateway control.
There are two package options. Please refer to the RZ/Five Overview for the differences in the functions supported by each.
13 x 13 mm Package Part Number: R9A07G043F01GBG#BC0
11 x 11 mm Package Part Number: R9A07G043F00GBG#BC0
The RZ/Five 13 x 13 mm package is also pin compatible with the RZ/G2UL (Type 1).
Features
- 64-bit RISC-V/AX45MP (Single)
- DDR4 or DDR3L memory interface
- Memory error detection / correction (ECC)
- Gigabit Ethernet 2ch
- CAN interface (CAN-FD) 2ch
- USB 2.0 interface 2ch
- SD interface 2ch
- AD converter 2ch
- 13 x 13mm BGA package、11x11mm BGA package
Comparison
Applications
- IoT gateway
- Industrial gateway
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RZ Smart Configurator RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| RZ/Five Verified Linux Package [5.10-CIP] Linux Packages for MPUs of the RZ/Five. Functions of this products have been verified and regular maintenance is also provided.
|
Software Package | Renesas |
| RZ MPU WebUI Package for Verified Linux Package [5.10-CIP] This product provides a WebUI package for RZ MPUs: WebUI is a web-based management tool that provides a user interface (UI) to users over a network.
|
Software Package | Renesas |
| RZ MPU Security Package (Linux OS) Security Package for RZ MPUs. This package is used in combination with the Linux package provided for each device.
|
Software Package | Renesas |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
5 items
|
||
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1/2 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 114 | LFBGA | 361 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | No | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | Get Samples, | ||
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1/2 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 114 | LFBGA | 361 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | No | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 7.763 | Get Samples, | |
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 65 | LFBGA | 266 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | No | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 8.375 | Get Samples, | |
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 65 | LFBGA | 266 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | No | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 8.322 | Get Samples, | |
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1/2 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 114 | LFBGA | 361 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | AES, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 9.314 | Get Samples, | |
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 65 | LFBGA | 266 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | AES, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | Get Samples, | ||
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 65 | LFBGA | 266 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | AES, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 8.012 | Get Samples, | |
| 1000 | 64 | No | 128 | DDR3L-1333, DDR4-1600 (16-bit) | No | No | No | 2 | 2 | 10/100M/1G x 1/2 ch | USB2.0 x 2 ch (1H. 1H/F/OTG) | 114 | LFBGA | 361 | -40 to 85°C | 2033 May | 0 | No | Yes | 16-bit x 8-ch | 12-bit x 2-ch | - | AES, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | RISC-V (AX45MP Single) | 3 | 8.287 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
64-Bit RISC-V General-Purpose MPU for IoT Edge
RZ/Five provides a new platform for high-performance IoT Edge solutions. Learn the advantages of RISC-V CPU, and how to easily scale development across RISC-V and Arm cores.
