Overview

This evaluation board kit is ideal for evaluating RZ/G2L. The RZ/G2L Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board complies with the SMARC v2.1 standard.

  • Contents
    • RZ/G2L Module Board (SMARC2.1)
    • Common Carrier Board (For RZ/G2L, RZ/G2LC, RZ/G2UL and RZ/V2L)
    • USB Cable (USB Type-A- Micro USB Type-B)

*Please prepare the following by yourself:

  • 65W USB Type-C Charger
    • USB PD
    • Output: 5V3A, 9V3A,15V3A, 20V3.25A
  • USB Type-C to Type-C cable
    • USB-C＆USB-C 3.1 Gen2 USB-PD 100W support
  • micro SD UHI-Class 10 8GB or more

*See EVK user's manual for more information.

RZ/G2L Evaluation Board Kit

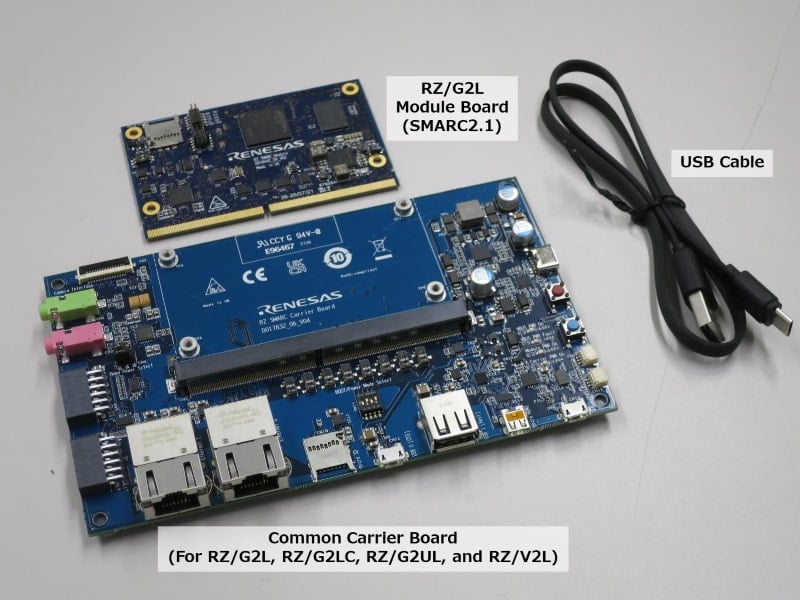

RZ/G2L Evaluation Board Kit Contents
RZ/G2L Evaluation Board Kit
RZ/G2L Evaluation Board Kit Contents
  • Device: RZ/G2L
    • Cortex-A55 Dual, Cortex-M33
    • BGA551pin, 15mmSq body, 0.5mm pitch
  • Module Board Function
    • DDR4 SDRAM: 2GB × 1pc
    • QSPI flash memory: 512Mb × 1pc
    • eMMC memory: 64GB × 1pc
    • The microSD card slot is implemented and used as an eSD for boot.
    • 5-output clock oscillator “5P35023” implemented
    • PMIC power supply “RAA215300” implemented
  • Carrier Board Function
    • The FFC/FPC connector is mounted as standard for connection to high-speed serial interface for camera module.
    • The Micro-HDMI connector via DSI/HDMI conversion module is mounted as standard for connection to high-speed serial interface for digital video module.
    • The Micro-AB receptacle (ch0: USB2.0 OTG) and A receptacle (ch1: USB2.0 Host) are respectively mounted as standard for connection to USB interface.
    • The RJ45 connector is mounted as standard for software development and evaluation using Ethernet.
    • The audio codec is mounted as standard for advance development of audio system. The audio jack is implemented for connection to audio interface.
    • The Micro-AB receptacles are implemented for connection to asynchronous serial port interface.
    • The microSD card slot and two sockets for PMOD are implemented as an interface for peripheral functions.
    • For power supply, a mounted USB Type-C receptacle supports the USB PD standard.

Documentation

Design & Development

Software & Tools
QuickConnect Platform
QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
 Software and Hardware Development Tools Renesas
RZ/G Verified Linux Package [5.10-CIP]
Linux Packages for MPUs of the RZ/G2 Group. Functions of this products have been verified and regular maintenance is also provided.
 Software Package Renesas
2 items

Software Downloads
Type Title Date
Software & Tools - Software
RZ/G FSP Packs v2.1.0
[Toolchains=GNU ARM Embedded|v9.2.1.20191025]
Log in to Download EXE 35.91 MB
Application: Consumer Electronics, Industrial
Compiler: GNU ARM Embedded Function: Application Example, BSP, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer IDE: e2 studio
PCB Design Files
RZ SMARC Series Carrier Board Design Data V4.01
Log in to Download ZIP 23.85 MB
PCB Design Files
RZ/G2L SMARC Module Board Design Data V2.01
Log in to Download ZIP 13.47 MB
3 items

Product Options

    Processing table
    Description
    Remarks
    Security
    Buy / Sample
    Part Number
    RTK9744L23S01000BE
    circleActive
    Buy Now
    		RZ/G2L Evaluation Board Kit None
    RTK9744L27S01000BE
    circleActive
    		 Renesas Evaluation Board Kit for RZ/G2L (Secure Type) Device: R9A07G044L27GBG Supported
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Videos & Training

    RZ/G2L EVK Tutorial

    This video introduces the steps from booting Linux to performing a simple test using a USB camera, using the RZ/G2L Evaluation Board Kit.

    Chapter's Title

    0:00 Opening
    0:05 Preparation of Evaluation Board and Software
    5:35 Booting Linux and Testing with a USB Camera
