Overview
Description

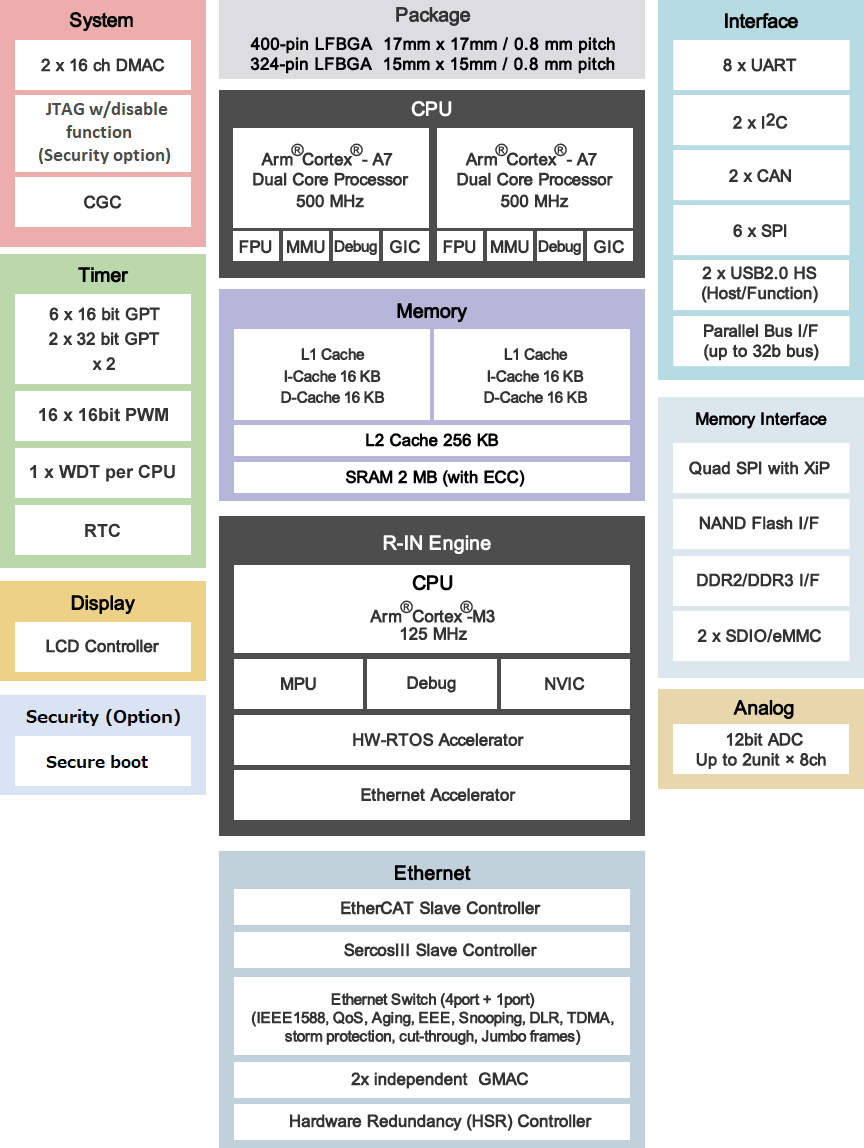

RZ/N1D is a scalable and proven ARM®-based microprocessor that can be used in a variety of applications with the Cortex®-A7 Dual core and a high-speed, high-capacity memory interface. It is implemented Max Five Ethernet ports and the latest redundancy protocol, so it is optimized especially for industrial network equipment such as PLC and network switch.
Features
- CPU：Dual Cortex-A7 (500MHz), Cortex-M3(125MHz)
- Voltage: 3V for IO, 1.15V for CPU
- Package: 324 pin LFBGA (15 x15mm, 0.8 pitch), 400 pin LFBGA (17 x17mm, 0.8 pitch)
- Memory: SRAM 2MB with ECC
- DDR: DDR2/3
- Ethernet port: max 5
- Independent GMAC: max 2 (IEEE1588 Compliant)
- PRP/HSR option: Available
- Security option: Available
- Others: PLL, RTC
Comparison
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Industrial Network Protocol Stack for RZ/N1 Supporting 6 industrial network protocol and reduce development resource by Common API.
|
Protocol Stack | Renesas |
1 item
|
||
Sample Code
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 170 | LFBGA | 400 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 16-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | 28.95 | Get Samples, | |
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 132 | LFBGA | 324 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 16-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | 18.75 | Get Samples, | |
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 170 | LFBGA | 400 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 16-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | 25 | ||
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 132 | LFBGA | 324 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | 20 | ||
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 170 | LFBGA | 400 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 16-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | |||
| RZ/N | Cortex-A7 x 2 | 500 | 32 | Cortex-M3 | 2048 | - | - | R-IN Engine | - | 2 | 10/100M/1G x 5 ch | USB2.0 x 2 ch (1H. 1H/F) | 170 | LFBGA | 400 | -40 to 110°C | 2030 May | 0 | No | Yes | 16-bit x 12-ch, 32-bit x 4-ch | 12-bit x 16-ch | Display Function | 3 - 3.6 | Cortex-A7 x 2 + Cortex-M3 x 1 | 3 | 30.58 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
RZ/N1 Solution Kit – Fast prototyping for Multi-protocol Industrial Ethernet
The RZ/N1D solution kit is an all-in-the-box package for fast evaluation and rapid prototyping of multiple industrial Ethernet protocols.
RZ/N1 is a family of scalable Arm® based industrial Ethernet switches. The performant Arm® Cortex®-A7 CPU on board, makes them an ideal choice for building Programmable Logic Controllers (PLC), industrial switches, gateways or operator terminals. Due to the unique combination of hardware and software, developers can easily exchange various industrial Ethernet protocols and focus only on developing the application software.
