Overview

The RAA211233 is an integrated 24V, 3A, 1.4MHz synchronous buck regulator with current mode constant on-time (COT) control.

The RAA211233 features comprehensive protection including input undervoltage lockout (UVLO), overcurrent protection (OCP), output undervoltage protection (OUVP), and over-temperature protection (OTP). The device is available in a 6 Ld TSOT23 package.

The device is available in a 6 Ld TSOT23 package.

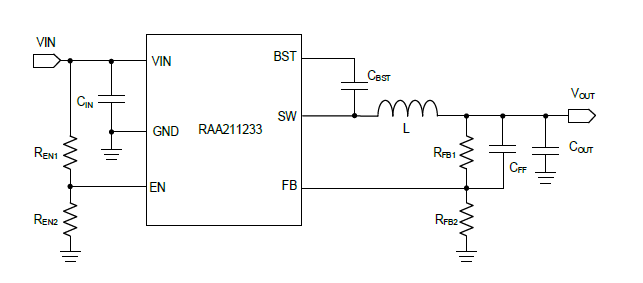

RAA211233 Typical Application Schematic
RAA211233 Typical Application Schematic
  • 4.5V to 24V input supply range
  • Up to 3A output current
  • Integrated high-side (85mΩ) and low-side (45mΩ) MOSFETs
  • 1.4MHz switching frequency
  • 400μA quiescent current
  • Minimum on-time of 66ns
  • Minimum off-time of 250ns
  • 0.6V reference voltage with 2% accuracy
  • PFM mode under light-load condition
  • Current mode Constant On-Time (COT) control with internal compensation
  • Internal 1.2ms soft-start time
  • Protection: Low-Side Overcurrent (LSOC) limit, input Undervoltage Lockout (UVLO), Over-Temperature Protection (OTP), Output Undervoltage Protection (OUVP) with Hiccup Mode
  • Accurate EN threshold
  • 6 LD TSOT23 package

Applications

  • General purpose
  • Industrial power supplies
  • Embedded systems and I/O supplies
  • Sensor, imaging, and radar
  • Instrumentation, medical, audio, and RF power supplies

Documentation

= Featured Documentation
Type Title Date
Datasheet
RAA211233 Datasheet
PDF 2.64 MB
1 item

Design & Development

RTKA211233DE0000BU Evaluation Board - Top

RTKA211233DE0000BU

Evaluation
Learn More

RAA211233 Synchronous Buck Evaluation Board with 4.5V to 24V Input Range, 3A Output (TSOT23-6 version)

The RAA211233 is an integrated 24V, 3A 1.4MHz synchronous buck regulator with constant on-time (COT) current mode control. It supports a wide input voltage range from...

Featured Documents:
RTKA211233DE0000BU Evaluation Board Manual

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    PLP
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    RAA2112334GP3#JA0
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 2033 Dec TSOT Reel 1 Get Samples,
