Overview

The RAA214401 is a linear regulator that operates with a very wide input voltage range at a fixed output of 3.3V and up to 150mA of output current. With an ultra-low quiescent current, it is suitable for always-on and keep-alive applications. The device operates with a wide input voltage range (4.5V to 40V at 10mA load) with excellent line and load regulation. It has integrated fault protections such as Over-Temperature Shutdown (OTSD) and short-circuit current limit. The output voltage of the device is well regulated across temperature and the entire operating range of the input voltage and load. It is fixed with an internal resistor network between the output pin and ground. The RAA214401 is available in a SOT23 package.

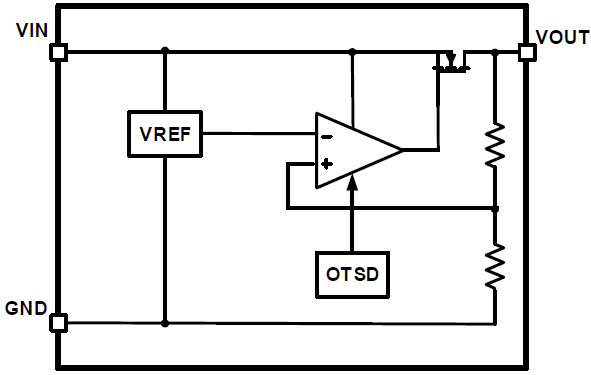

RAA214401 - Block Diagram
RAA214401 - Applications Diagram
RAA214401 - Block Diagram
RAA214401 - Applications Diagram
  • Wide input voltage range (4.5V to 40V at 10mA load)
  • Ultra-low 3.6μA quiescent current
  • High output voltage accuracy
  • Excellent line and load regulation
  • Stable with 2.2μF to 47μF MLCC output capacitor
  • Integrated fault protections including thermal shutdown and current limit
  • Available in the compact and cost-effective SOT23 package

Applications

  • Always-on battery-powered equipment
  • MCU standby power supply
  • Electric meters
  • Laptop computers and tablets
  • Portable modules and appliances
