Overview

The iW3630 offers an output power up to 45W, high power factor (PF) >0.95, total harmonic distortion <15%, and a small BOM to address performance, cost and reliability issues in high-performance, dimmable commercial solid-state lighting applications.

The iW3630 features a built-in isolation transformer driver that enables direct, 0-10V dimming without the need for an additional driver circuit and microcontroller. It also incorporates Renesas' proprietary PrimAccurate™ primary-side control technology, further reducing the BOM count by eliminating the need for an optocoupler and external compensation components.

Incorporating Renesas' proprietary Flickerless™ technology, the iW3630 allows for full 1% to 100% flickerless dimming using either a direct analog voltage or a PWM signal. It is feature-rich to ease design and provide a very robust solution, integrating Renesas' EZ-EMI® technology and several protection features, including LED over-temperature protection.

iW3630 Functional Block Diagram

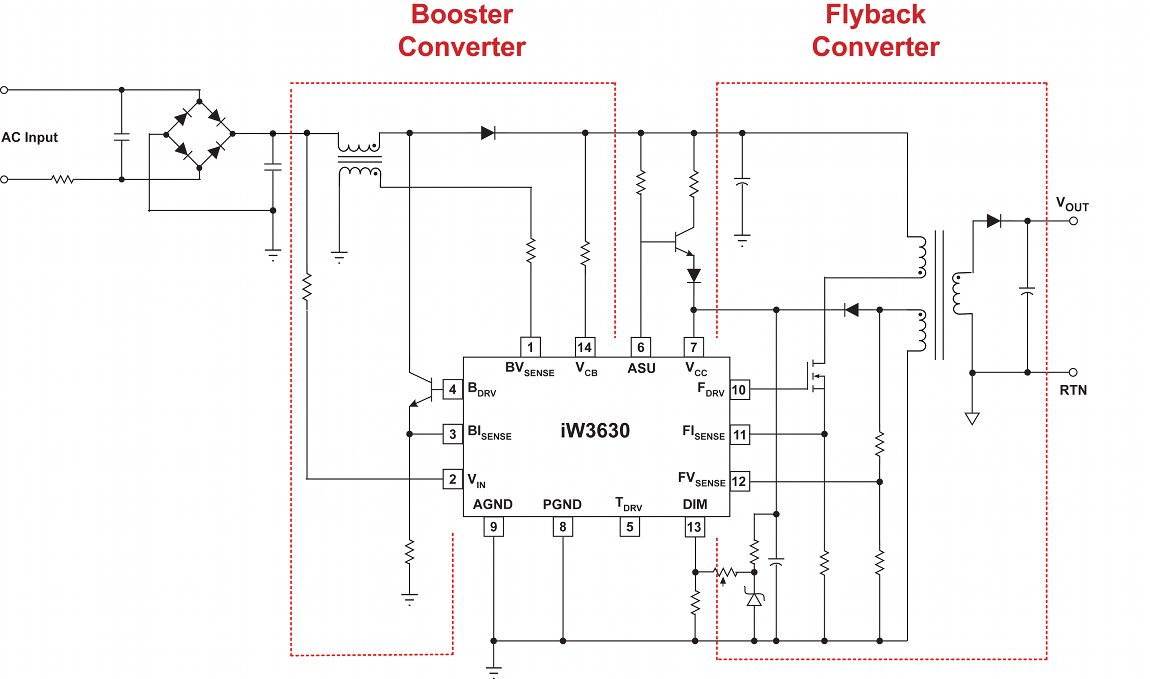

iW3630 Typical Applications Diagram
iW3630 Functional Block Diagram
iW3630 Typical Applications Diagram
  • High PF (>0.95) and Low THD (<15%)
  • PrimAccurate™ - Isolated Off-Line AC/DC Controller
  • Integrates Renesas' Flickerless™ Technology
    • Removes Virtually All LED Flicker
  • LED Applications up to 45W Off-Line Solid-State Lighting Applications
  • 45Hz to 66Hz Line Frequency Range - 50Hz/60Hz Compatible
  • Analog and PWM Dimming Compatibility
    • Direct Analog Control - 1% to 100% Range
    • PWM Dimming Capable
    • Integrated Isolation Transformer Driver for 0-10V Dimming Systems
  • Quasi-resonant Mode for Optimal Efficiency
  • Fully Protected
    • Works from DC Voltage Emergency Back Up System
    • Over-Temperature Protection
    • Overvoltage Protection
    • Output Overvoltage, Overcurrent and Short Circuit
    • Open LED Fault Detection
    • Sense-Resistor Short Circuit Protection

Applications

  • Dimmable LED Ballasts with 0-10V Interface for Dimming Control
  • Dimmable LED Ballasts with Analog Input for Dimming Control

Documentation

= Featured Documentation
Type Title Date
Datasheet
iW3630 Datasheet
Log in to Download PDF 1.15 MB
Product Brief
iW3630 Product Summary
PDF 624 KB
White Paper
Optimizing Operating Life for LED-based Light Bulbs
PDF 807 KB
White Paper
Removing LED Flicker from Priceless Family Memories
PDF 843 KB
White Paper
What is Digital Power White Paper
PDF 597 KB
5 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    IW3630-00
    circleActive
    memory
    view_in_ar
    Samples Available
    		 SOIC-14 Tape & Reel 1 Get Samples,
