Overview

The SLG47011V-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG47011V-SKT kit includes the SLG4SA16AA-20x20 socket adapter and 50 SLG47011V GreenPAK programmable mixed-signal matrix IC samples.

Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG47011V GreenPAK programmable mixed-signal matrix provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47011V. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

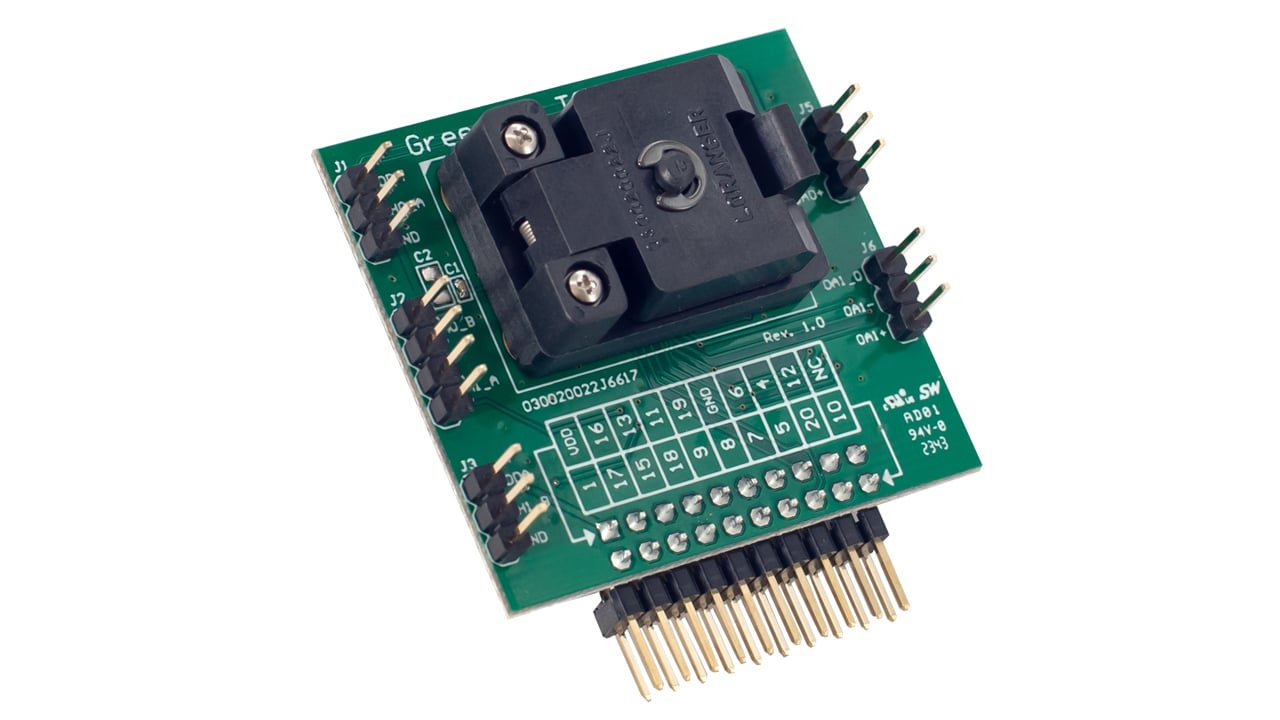

SLG47011V-SKT Socket Adapter

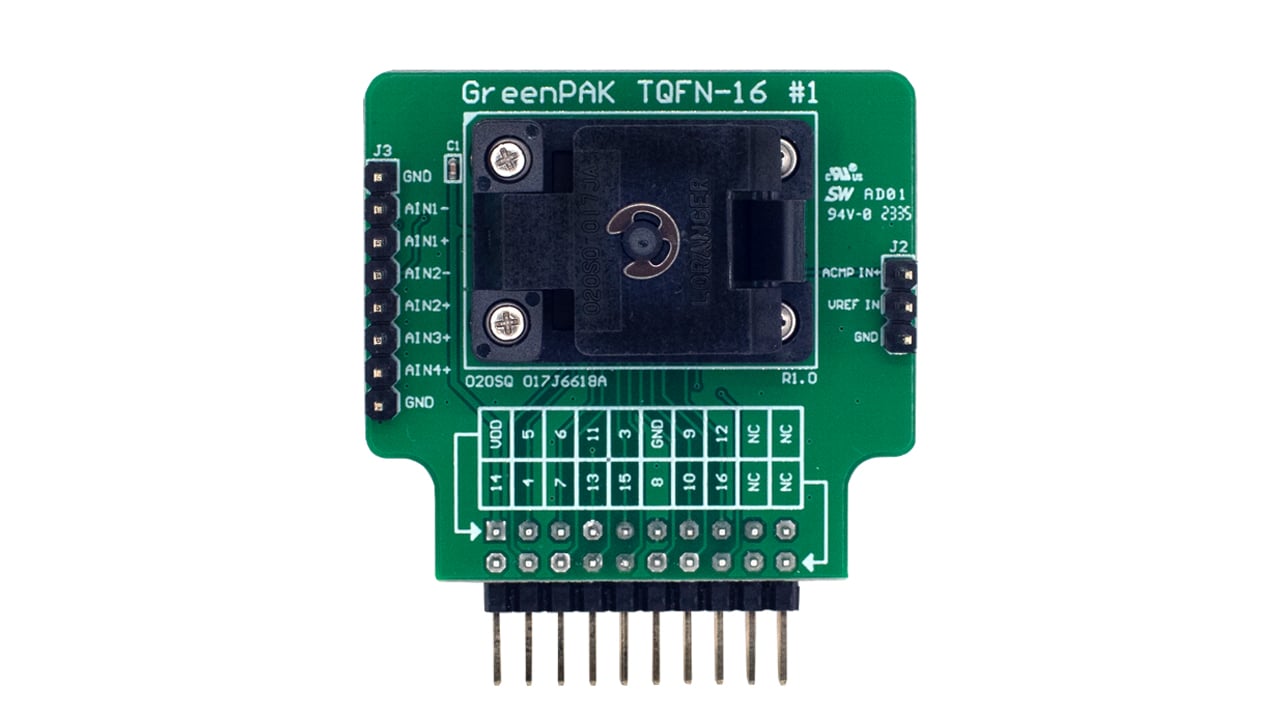

SLG47011V-SKT Socket Adapter - Top

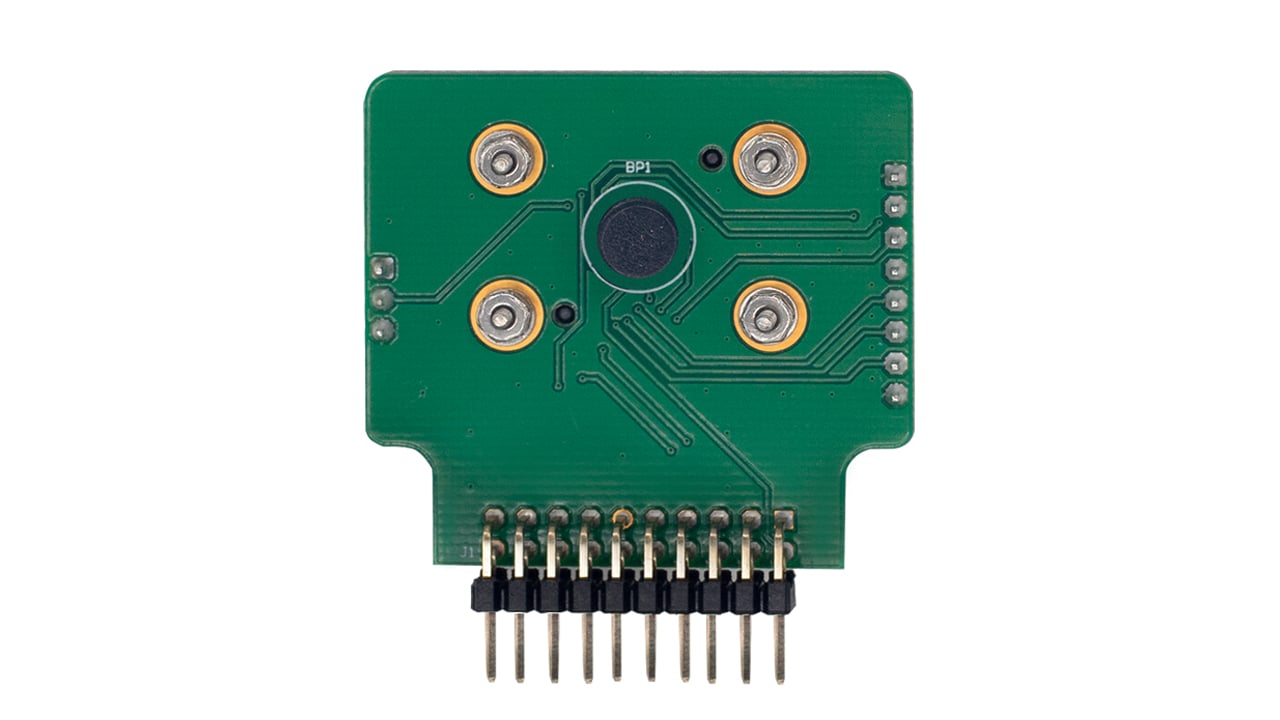

SLG47011V-SKT Socket Adapter - Bottom

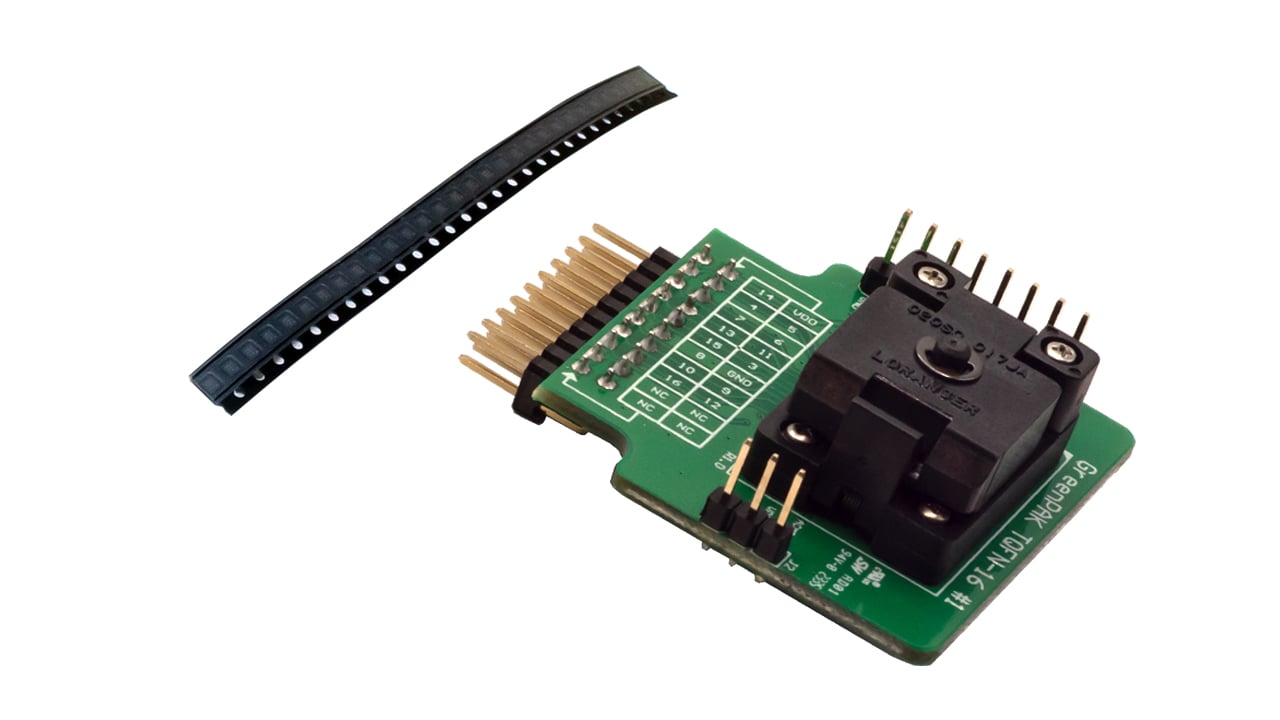

SLG47011V-SKT Socket Adapter Kit
SLG47011V-SKT Socket Adapter
SLG47011V-SKT Socket Adapter - Top
SLG47011V-SKT Socket Adapter - Bottom
SLG47011V-SKT Socket Adapter Kit
  • SLG4SA16AA-20x20 socket adapter
  • 50 SLG47011V samples

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
GreenPAK Advanced Development Platform User Guide
PDF 2.35 MB
Quick Start Guide
GreenPAK Lite Development Kit Quick Start Guide
PDF 197 KB
Manual - Development Tools
GreenPAK Lite Development Board Manual
PDF 1.32 MB
Manual - Hardware
Socket Adapter GreenPAK TQFN-16 #1 Manual
PDF 540 KB
4 items

Design & Development

Software & Tools
Go Configure™ Software Hub
Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
Software Package Renesas
1 item
SLG4DVKADV

SLG4DVKADV

Development
Learn More

GreenPAK Advanced Development Board

The GreenPAK Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT /...

Featured Documents:
GreenPAK Advanced Development Platform User Guide
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud
GreenPAK Lite Development Board

SLG4DVKLITE

Development
Learn More

GreenPAK Lite Development Board

The GreenPAK Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in a pair with the Go Configure™ Software...

Featured Documents:
GreenPAK Lite Development Kit Quick Start Guide
GreenPAK Lite Development Board Manual
