Overview

The SLG47004AP-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG47004AP-SKT kit includes the SLG4SA24-40x40 socket adapter and 20 SLG47004-AP GreenPAK™ programmable mixed-signal matrix IC samples.

Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG47004-A automotive GreenPAK programmable mixed-signal matrix provides a small, low-power component for commonly used mixed-signal functions. The user-defined circuit design can be programmed into Non-Volatile Memory (NVM) to configure the interconnect logic, the analog and digital macrocells, and the IO pins of the SLG47004-A. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

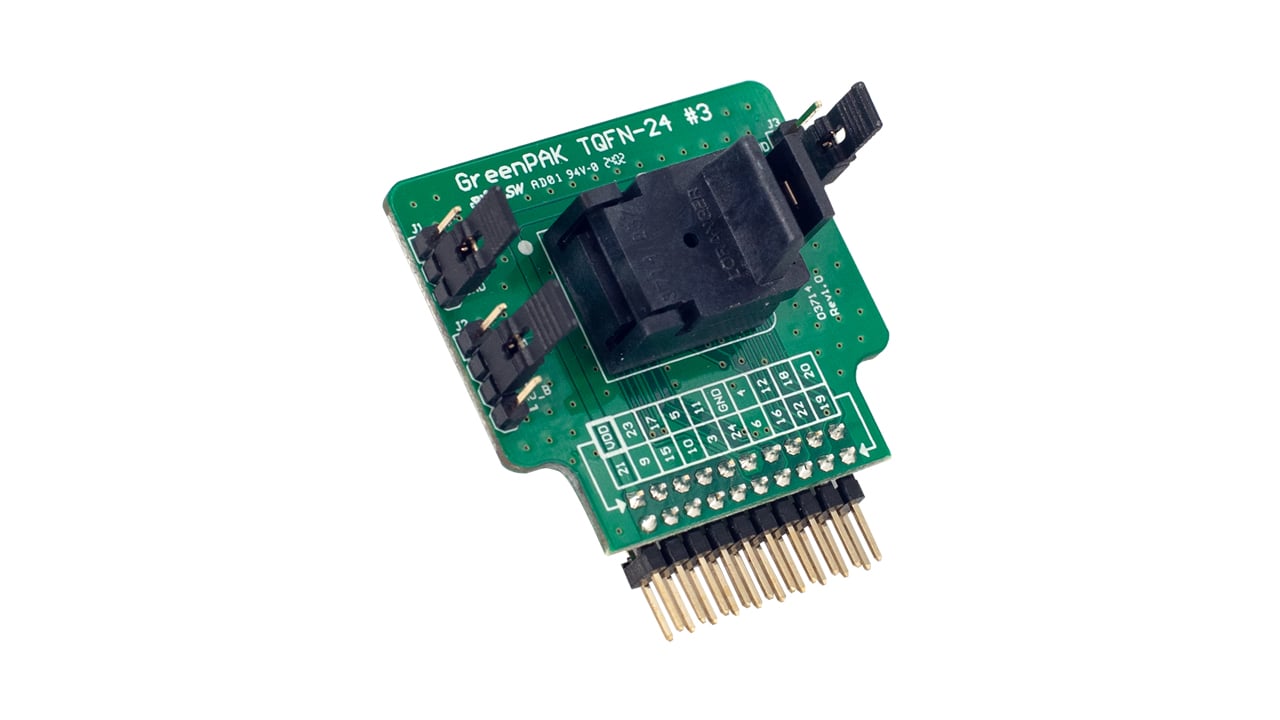

SLG47004AP-SKT Socket Adapter

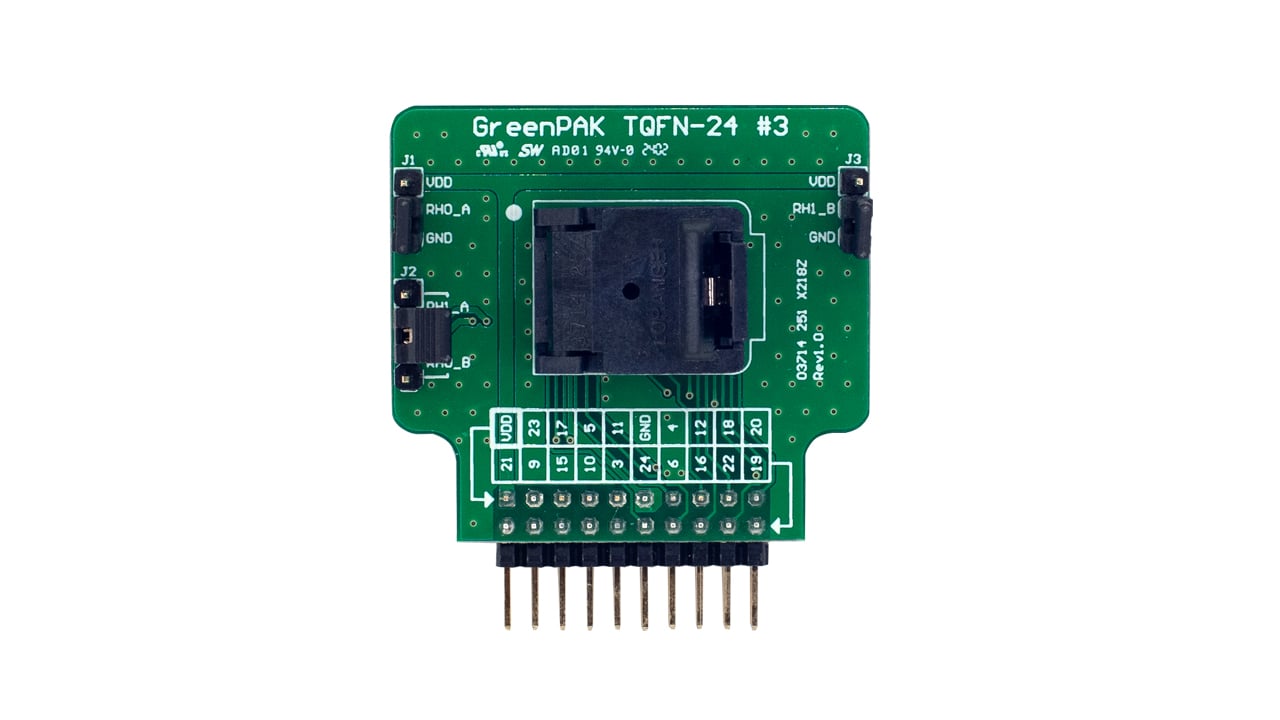

SLG47004AP-SKT Socket Adapter - Top

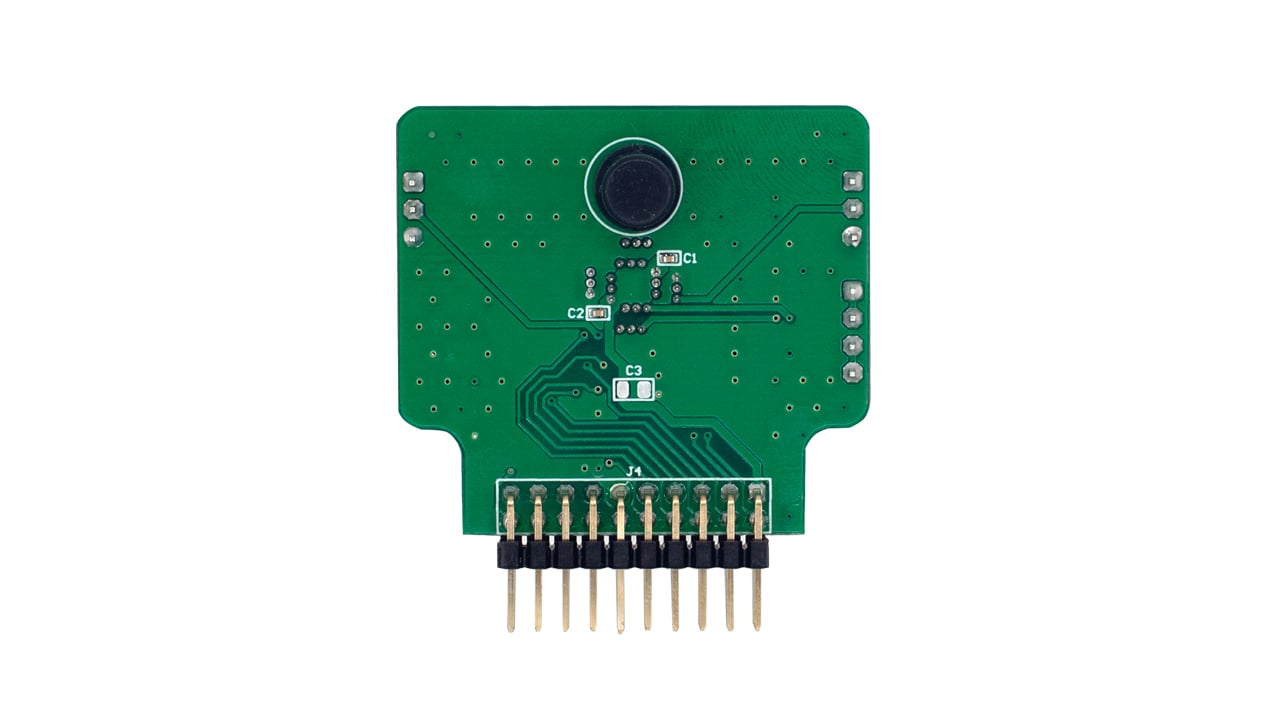

SLG47004AP-SKT Socket Adapter - Bottom

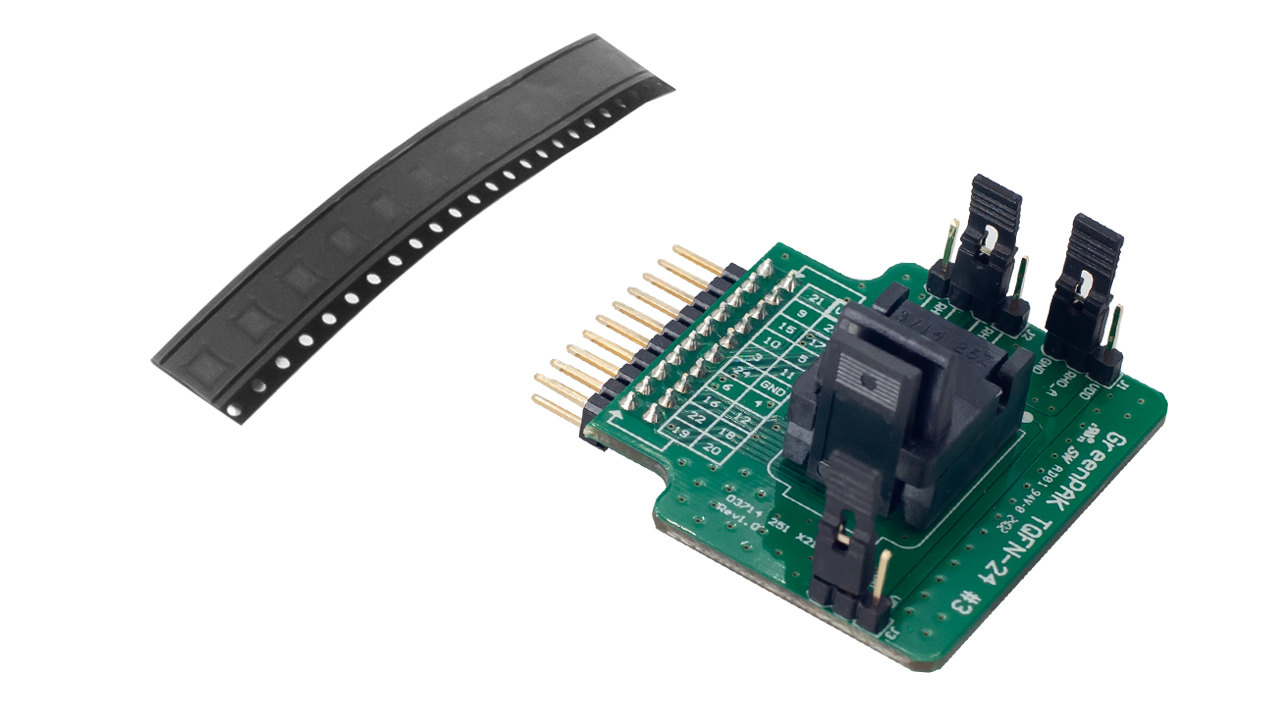

SLG47004AP-SKT Socket Adapter Kit
SLG47004AP-SKT Socket Adapter
SLG47004AP-SKT Socket Adapter - Top
SLG47004AP-SKT Socket Adapter - Bottom
SLG47004AP-SKT Socket Adapter Kit
  • SLG4SA24-40x40 socket adapter
  • 20 SLG47004-AP samples
