Automotive GreenPAK SLG47004-AP Development Kit with Socket Adapter
The SLG47004AP-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The...
Overview
Description

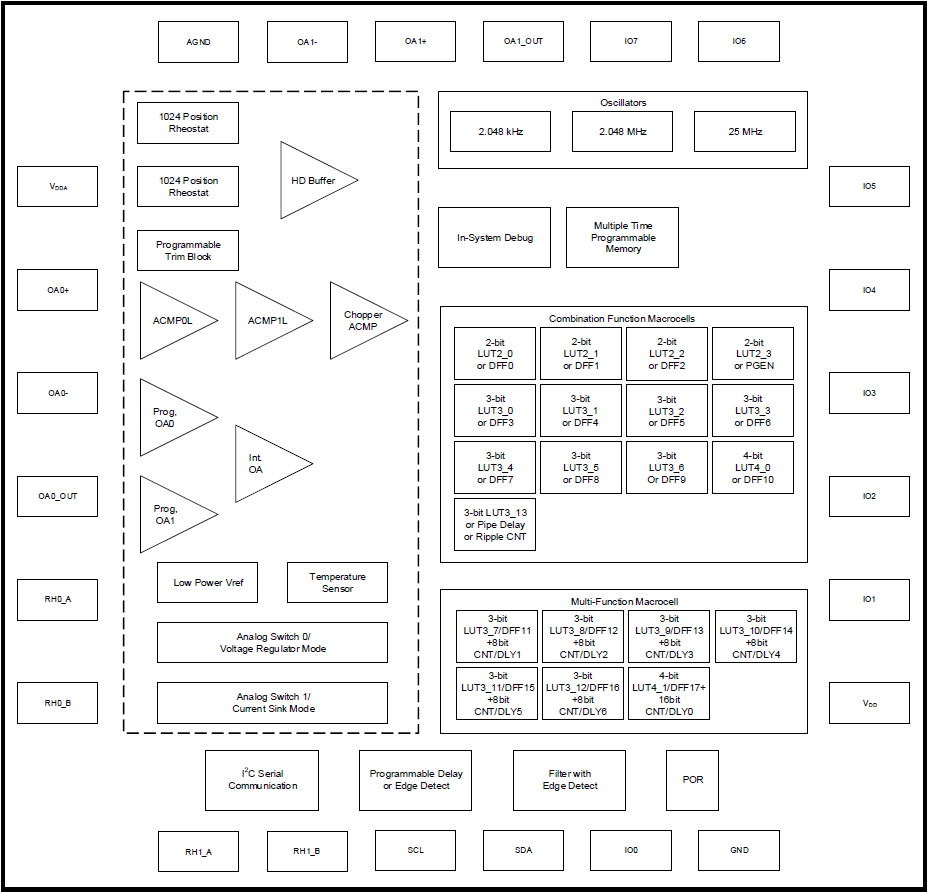

The SLG47004-A provides a small, low-power component for commonly used analog signal processing and mixed-signal functions. Individual, tunable, analog components used in conjunction with configurable logic provide a way to solve a wide variety of tasks with minimal costs. The user-defined circuit design can be programmed into Non-Volatile Memory (NVM) to configure the interconnect logic, the analog and digital macrocells, and the IO pins of the SLG47004-A.
Features
- Two Programmable Bandwidth Op Amps
- 3-Op Amp Instrumentation Amplifier Function (including Additional Internal Op Amp)
- Rail-to-Rail Input
- Low Quiescent Current
- Low Offset Voltage
- Analog Comparator Mode
- Optional Vref Voltage Connection for Input Pins
- Two 1024 Position Digital Rheostats
- User Defined Auto-Trim Option
- Manual Control Option
- I²C Control Option
- Potentiometer Mode
- Two Single-Pole/Single-Throw Analog Switches
- Voltage or Current Source/Sink Mode
- One Low Offset Chopper Comparator
- Two Low Power General Purpose ACMPs
- ACMP Sampling Mode
- Hysteresis with Independently Selectable Thresholds
- Three Voltage References
- Two ACMP Vref Output Buffers
- One High Drive Buffer
- Thirteen Combination Function Macrocells
- Three Selectable DFF/LATCH or 2-bit LUTs
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Seven Selectable DFF/LATCH or 3-bit LUTs
- One Selectable Pipe Delay or Ripple Counter or 3-bit LUT
- One Selectable DFF/LATCH or 4-bit LUT
- Seven Multi-Function Macrocells
- Six Selectable DFF/LATCH or 3-bit LUTs + 8-bit Delay/Counters
- One Selectable DFF/LATCH or 4-bit LUT + 16-bit Delay/Counter
- Serial Communications
- I²C Protocol Interface
- Programmable Delay with Edge Detector Output
- Deglitch Filter or Edge Detector
- Three Oscillators
- 2.048kHz Oscillator
- 2.048MHz Oscillator
- 25MHz Oscillator
- Analog Temperature Sensor
- Power-On-Reset
- In-System Debug
- Multiple Time Programmable Memory in Development
- Wide Range Power Supply: 2.5V (± 4%) to 5V (± 10%) VDD
- Ambient Operation Temperature Range: -40 °C to 125 °C
- RoHS Compliant/Halogen-Free
- Package Available: 24-pin TQFN: 4mm x 4mm x 0.75mm, 0.5mm pitch
- AEC-Q100 (TA = -40 °C to 125 °C) Qualified
Comparison
Applications
Applications
- Infotainment
- Navigation
- Automotive Display Clusters
- Chassis and Body Electronics
- Sensor Interface
- Electronic/Electrical Architecture
