GreenPAK SLG47525 Development Kit with Socket Adapter
The SLG47525V-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK™ Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The...
Featured Documents:
Overview
Description

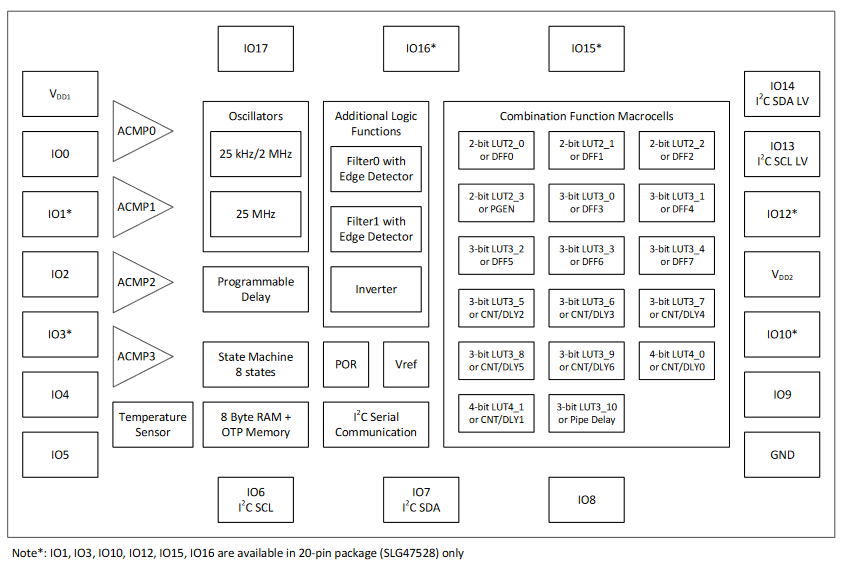

The SLG47525 GreenPAK™ programmable mixed-signal matrix provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47525. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.
Features
- 4 analog comparators (ACMP)
- 2 voltage references (VREF)
- 19 combination function macrocells
- 3 selectable DFF/LATCH or 2-bit LUTs
- 1 selectable continuous DFF/LATCH or 3-bit LUT
- 4 selectable DFF/LATCH or 3-bit LUTs
- 1 selectable pipe delay or 3-bit LUT
- 1 selectable programmable function generator or 2-bit LUT
- 5 8-bit delays/counters or 3-bit LUTs
- 2 16-bit delays/counters or 4-bit LUTs
- 2 deglitch filters with edge detectors
- State machine
- 8 states
- Flexible input logic from state transitions
- Serial communications
- I2C protocol compliant
- Pipe delay – 16 stages/3 outputs (part of combination function macrocell)
- Programmable delay
- Additional logic function
- 1 inverter
- 2 oscillators (OSC)
- Configurable 25kHz/2MHz
- 25MHz RC oscillator
- Power-On Reset (POR)
- 8 byte RAM + OTP user memory
- RAM memory space that is readable and writable via I2C
- User-defined initial values transferred from OTP
- Read back protection (read lock)
- Wide range power supply
- 1.71V to 5.5V VDD1
- 0.95V to 1.98V VDD2 (VDD2 ≤ VDD1)
- Operating temperature range: -40 °C to 85 °C
- RoHS compliant/Halogen-free
- Available package: 14-pin STQFN: 2.0mm x 2.2mm x 0.55mm, 0.4mm pitch
