Overview
Description

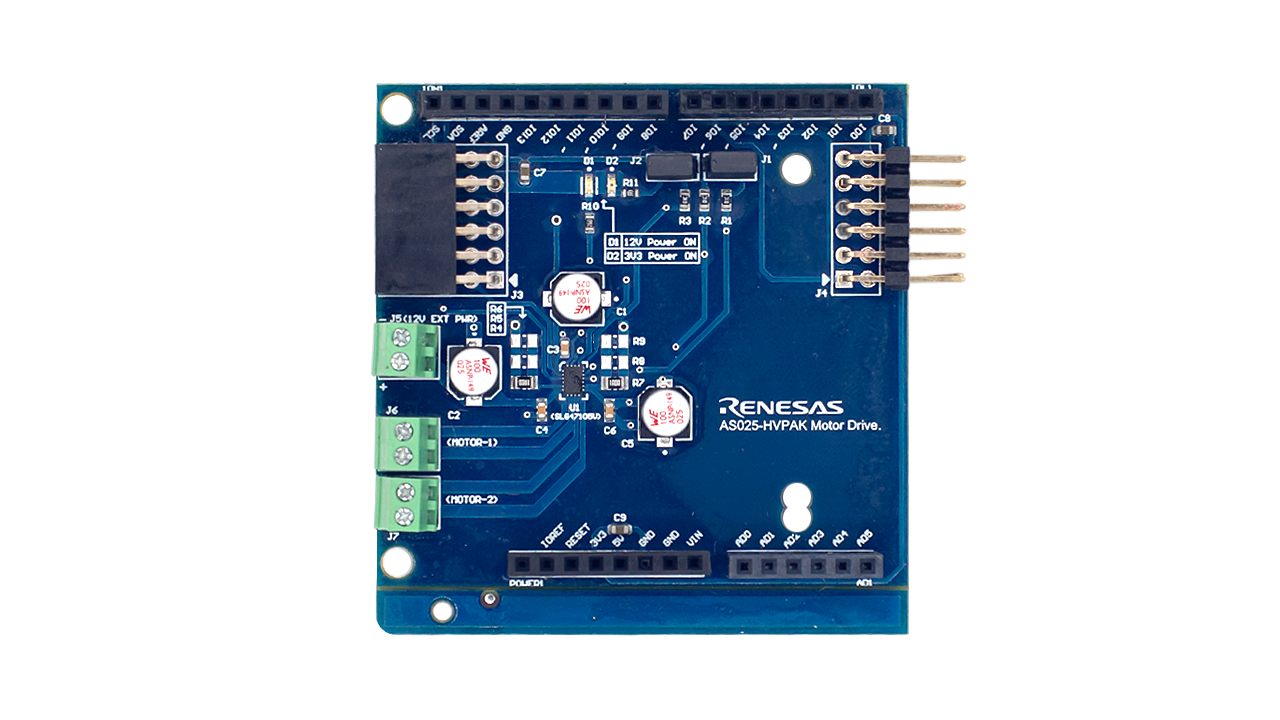

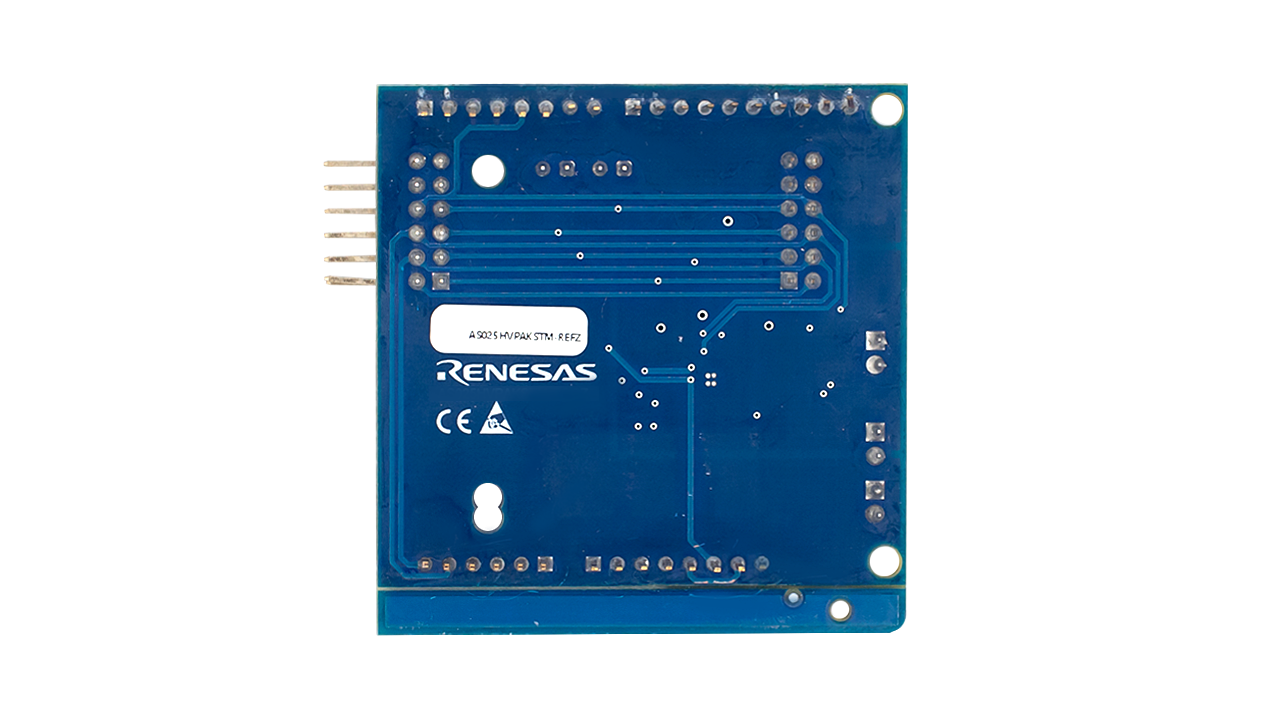

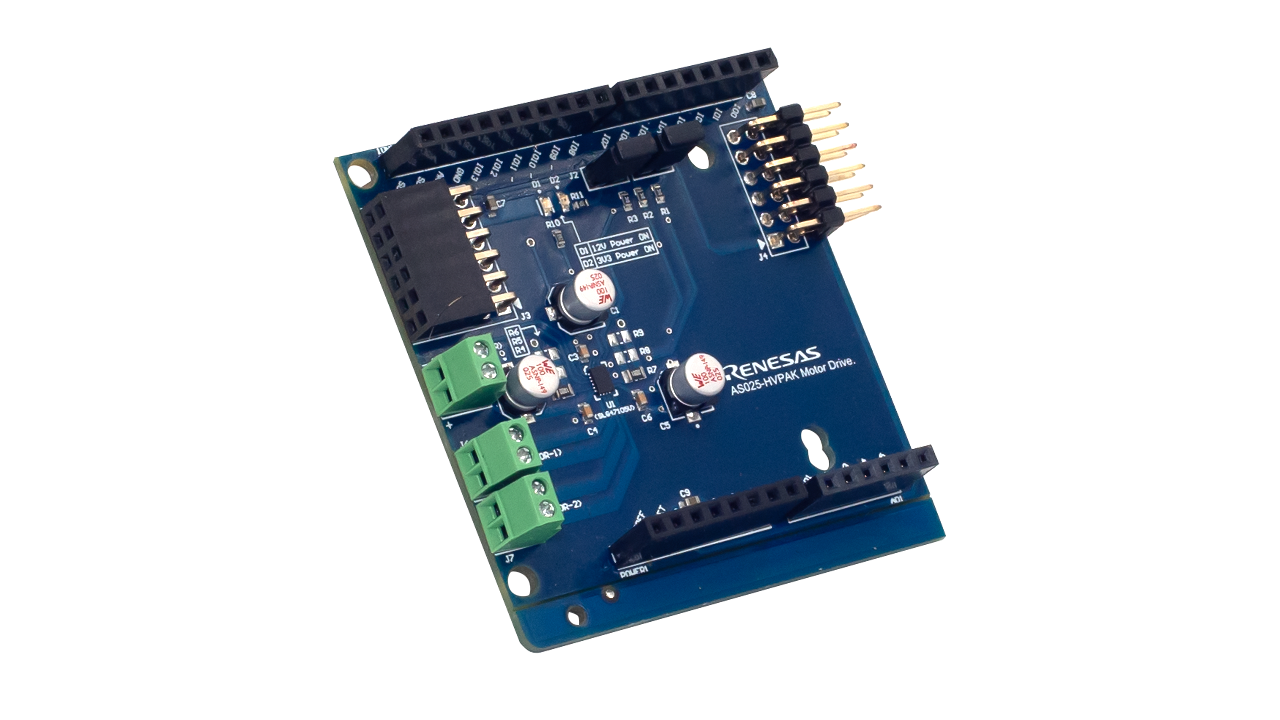

The AS025-HVPAK kit is an implementation of the HVPAK™ programmable mixed-signal matrix over Pmod™ that provides flexibility for users to control and configure the HVPAK motor drive using any MCU/MPU. There are multiple protection sections implemented to use it as a standalone motor drive as well. The motors, like the DC motor with direction and speed control as well as the stepper motor with microsteps, are easily configurable. This kit reduces the development and turnaround time for any customer design.
Features
- Suitable for a quick connect platform using the Arduino and Pmod architecture
- High-voltage GreenPAK™ SLG47105 programmable mixed-signal matrix supports stepper motor function with full step, half-stepping, and micro-stepping, and 2-channel DC motor drive
- ISL28025 digital power monitor provides an external current protection circuit for additional system-level hard reset and protection
Applications
Applications
- Stepper motor/DC motor control applications
- Smart locks and valves
- Smart air freshener
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 2.48 MB | |
| Manual - Hardware | PDF 2.75 MB | |
2 items
|
||
Design & Development
Software & Tools
Lab on the Cloud
Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.

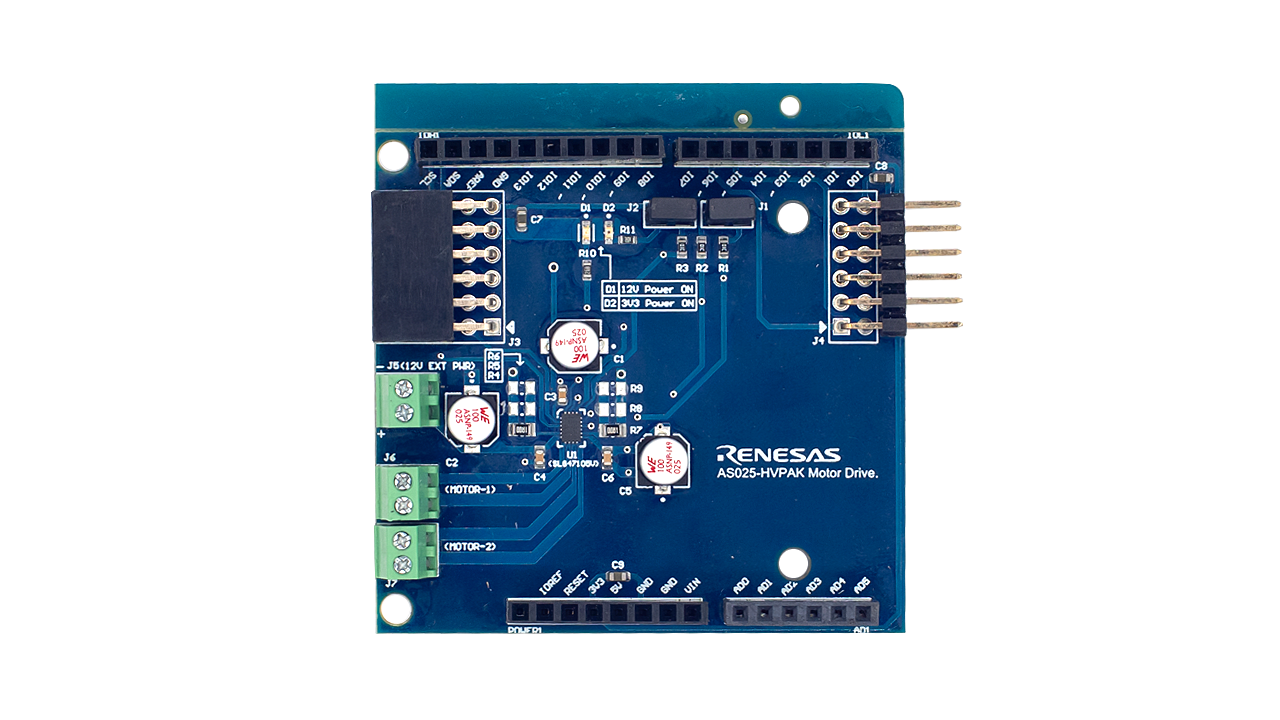

This board, featuring a highly integrated HVPAK programmable mixed-signal matrix IC and a power monitor for protection, enables quick configuration of DC motors, supporting direction and speed control.
Processing table
AS025HVPAKDCM-POCZ Active |
HVPAK™ DC Motor Driver Arduino & Pmod™ | |
AS025HVPAKSTM-POCZ Active |
HVPAK™ Stepper Motor Driver Arduino & Pmod™ |
