IO-Link Ready Dual-Channel Resistive Sensor Signal Conditioner IC Evaluation Kit
The ZSSC3286 evaluation kit provides the hardware needed for the configuration, calibration, and evaluation of the ZSSC3286 sensor signal conditioner (SSC) IC. The...
Overview
Description

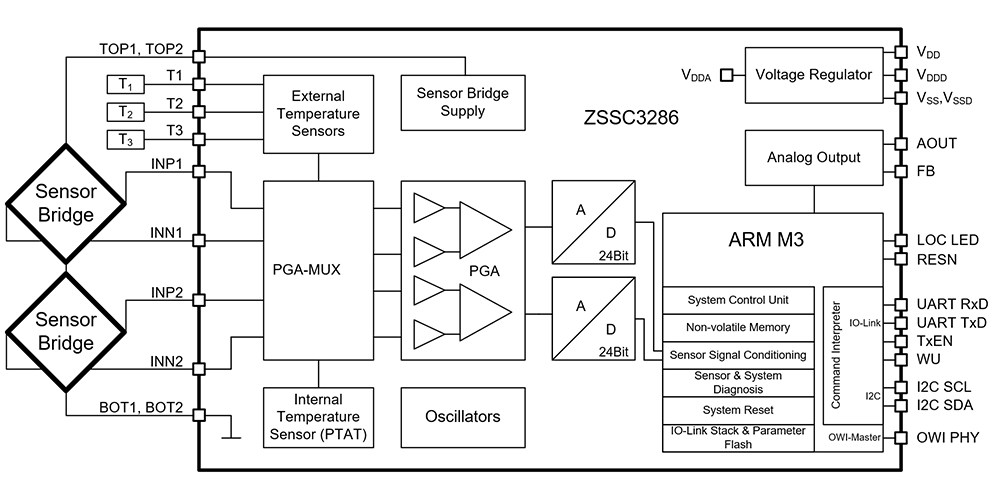

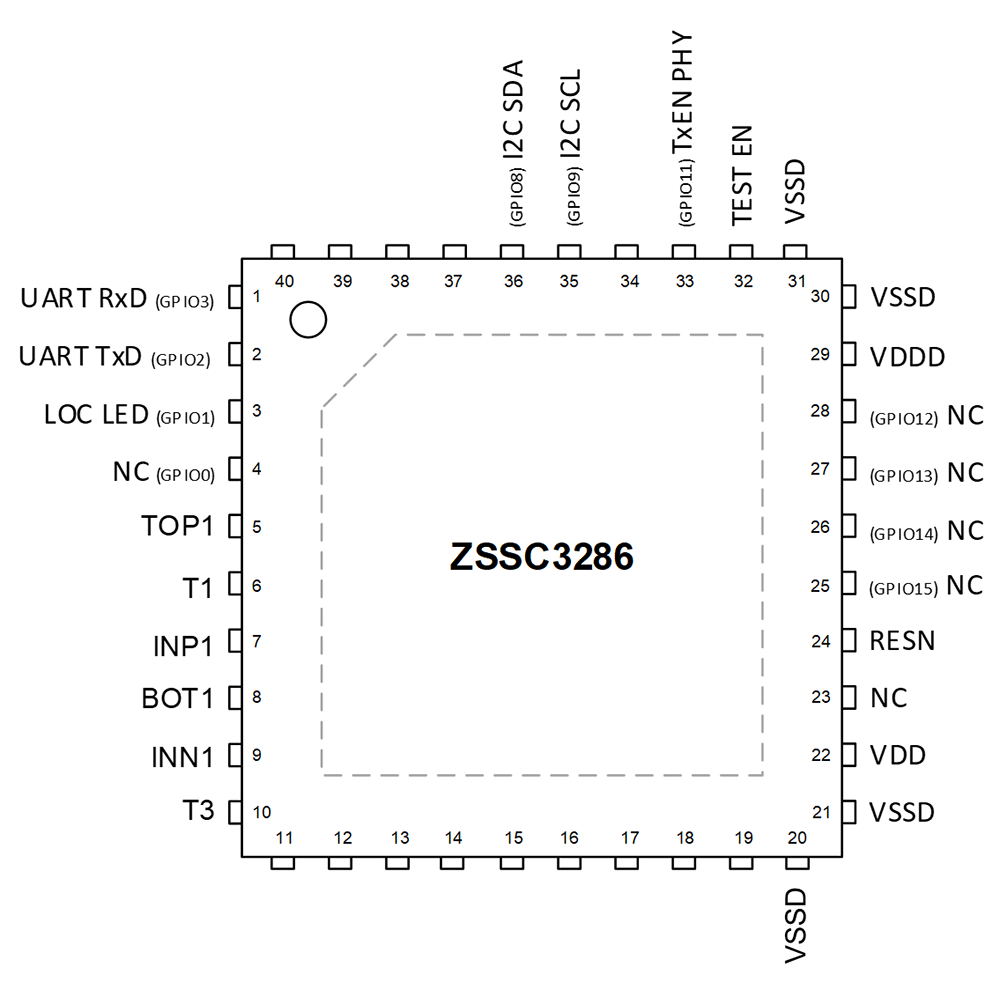

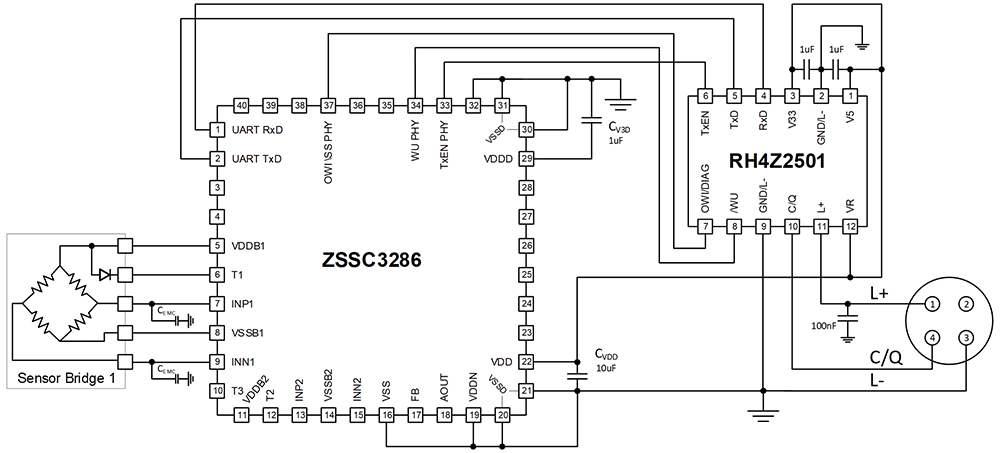

The ZSSC3286 is a dual path sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of sensor signals. The ZSSC3286 supports IO-Link connectivity with an integrated IO-Link stack running the IO-Link Smart Sensor Profile for digital measuring and switching sensors. The device is suitable for bridge and half-bridge sensors, as well as external voltage source elements. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 32-bit Arm® based math core running a correction algorithm with calibration coefficients stored in a non-volatile, reprogrammable memory. The programmable, integrated sensor front-end allows optimally applying various sensors for a broad range of applications.
Features
- IO-Link stack embedded
- Support Smart Sensor Profile in COM3 mode
- Firmware update via IO-Link
- Calibration via IO-Link
- Accurate system clock, no crystal needed
- Accommodates nearly all resistive bridge sensors in various configurations
- On-chip temperature sensor
- External temperature sensing supported
- Programmable 16-bit digital-to-analog converter and output (supporting "True Zero Volts (0V)" output)
- Wide operational temperature and supply range
- On-chip voltage regulators for sensor supply, and IC operation
- Programmable sensor signal conditioning math core
- Reprogrammable, non-volatile memory (NVM)
- On-chip diagnostics
Comparison
Applications
Applications
- Industrial sensors with IO-Link interface
- Enables smart, digital sensors for energy-efficient solutions
- Pressure, flow, and level sensing
- Factory automation
- Process automation
- Calibrated, continuously operating sensors for:
- Pressure
- Flow
- Load
- Temperature
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 4.90 MB | |
| White Paper | PDF 477 KB | |
2 items
|
||
Design & Development
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 13-inch Reel | VFQFPN | 40 | -40 to 125°C | Reel | 1 | Get Samples, | |
| 13-inch Reel | WLCSP | 48 | -40 to 125°C | Reel | 1 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
ZSSC3286 Sensor Signal Conditioner with IO-Link Stack
Explore the features and benefits of the ZSSC3286 IO-Link ready dual-channel resistive sensor signal conditioner IC for highly accurate amplification, digitization, and sensor-specific correction of sensor signals. The ZSSC3286 supports IO-Link connectivity with an integrated IO-Link stack, get your samples today!
