Overview
Description

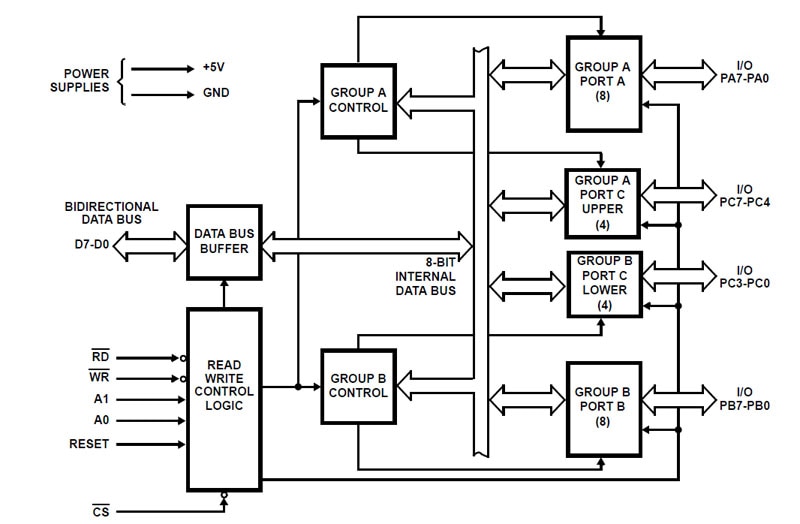

The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 82C55A make it compatible with the 80C86, 80C88 and other microprocessors. Static CMOS circuit design insures low operating power. TTL compatibility over the full military temperature range and bus hold circuitry eliminate the need for pull-up resistors. The Intersil advanced SAJI process results in performance equal to or greater than existing functionally equivalent products at a fraction of the power.
Features
- Pb-Free Plus Anneal Available (RoHS Compliant) (See Ordering Info)
- Pin Compatible with NMOS 8255A
- 24 Programmable I/O Pins
- Fully TTL Compatible
- High-Speed, No "Wait State" Operation with 5MHz and 8MHz 80C86 and 80C88
- Direct Bit Set/Reset Capability
- Enhanced Control Word Read Capability
- L7 Process
- 2.5mA Drive Capability on All I/O Ports
- Low Standby Power (ICCSB) 10µA
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| CERDIP | Tube | Not Applicable | Get Samples, | ||
| CLCC | Tube | Not Applicable | Get Samples, | ||
CP82C55A-5Z Active Samples Available
Buy Now
|
PDIP | Tube | Not Applicable | Get Samples, | |
CP82C55AZ Active Samples Available
Buy Now
|
PDIP | Tube | Not Applicable | Get Samples, | |
CQ82C55AZ Active Samples Available
Buy Now
|
MQFP | Tray | 3 | 11.69 | Get Samples, |
CS82C55A-5Z Active Samples Available
Buy Now
|
PLCC | Tube | 3 | 7.801 | Get Samples, |
| PLCC | Reel | 3 | 7.8 | ||
CS82C55AZ Active Samples Available
Buy Now
|
PLCC | Tube | 3 | 11.19 | Get Samples, |
| PLCC | Reel | 3 | |||
| CERDIP | Tube | Not Applicable | 51.54 | Get Samples, | |
IP82C55AZ Active Samples Available
Buy Now
|
PDIP | Tube | Not Applicable | 23.23 | Get Samples, |
IS82C55AZ Active Samples Available
Buy Now
|
PLCC | Tube | 3 | 25.25 | Get Samples, |
| PLCC | Reel | 3 | 21.55 | ||
| CERDIP | Tube | Not Applicable | Get Samples, |
