SmartBond DA14592 Bluetooth Low Energy 5.2 SoC Development Kit Pro
The DA14592-016FDEVKT-P Bluetooth® Low Energy Development Kit Pro includes a motherboard, daughterboard, and cables. This kit is specifically designed for software...
Overview
Description

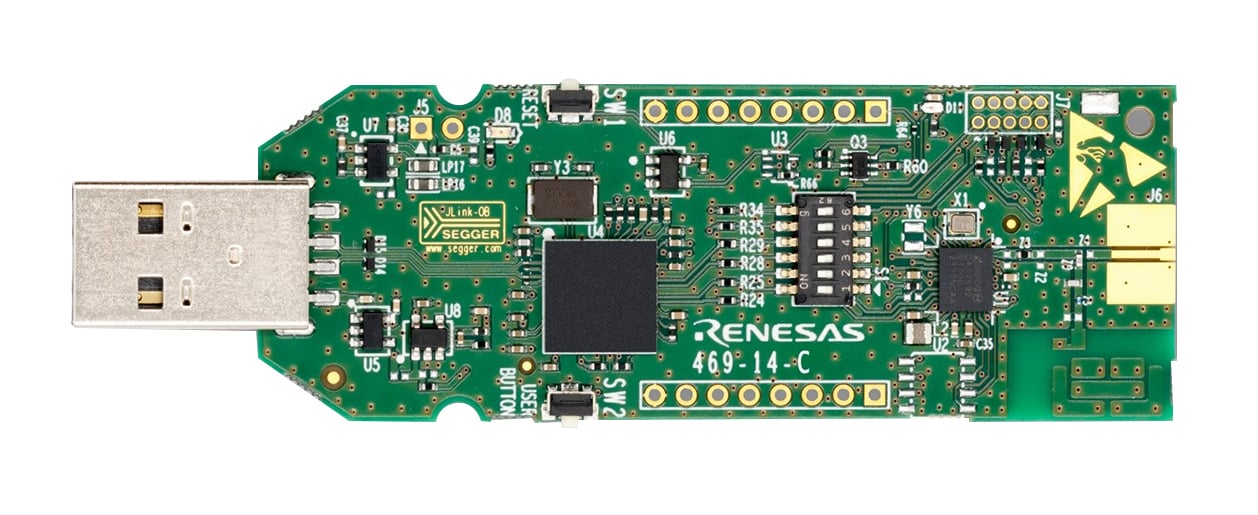

The DA14592-016FDEVKT-U is a low-cost single-board Bluetooth® Low Energy USB Development Kit for the DA14592 SmartBond™ SoC, primarily intended for software application development.
The DA14592 is a multi-core Bluetooth 5.2 SoC with 256kB of embedded FLASH. It operates at ultra-low power levels while providing world-class RF performance. The DA14592 is available in both FCQFN and WLCSP packages.
This kit offers a low-cost development board with basic functionality, implemented on a single PCB. The purpose of this cost-effective USB kit is to provide users with the capability for:
- Software development
- Programming DA14592 via JTAG or UART using the DA14592 SDK
- Connecting MikroBUS™ modules
Features
- Highly integrated DA14592 Bluetooth Smart SoC
- Single-board USB development kit with Quick Start Guide
- Ability to connect directly to a PC USB without extra cables
- Pre-loaded firmware included
- 2.4GHz printed antenna and slot for SMA connector
- JTAG and UART interfaces over USB via SEGGER
- 1 MikroBUS header
- Reset push button
- General-purpose LED and button
- Low cost
Applications
Applications
- Crowdsourced location tracking
- Asset tracking
- Connected health
- Human interface device
- Activity tracker
- Data logger
- POS reader
- Metering
- High-end voice RCU
- IoT end node
- Toys
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 2.08 MB | |
| Manual - Development Tools | ||
| Schematic | ZIP 664 KB | |
| Schematic | PDF 1.04 MB | |
4 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Bluetooth® Low Energy Mobile Application Suite Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
|
Software Package | Renesas |
| e² studio Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
| SmartBond™ Flash Programmer The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA1458x, DA1469x, and DA14592 SoCs.
|
Software Package | Renesas |
| SmartBond™ Development Tools SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
|
Software Package | Renesas |
| Serial Port Service (SPS) The Serial Port Service (SPS) emulates serial cable communication.
|
Emulator | Renesas |
5 items
|
||
Sample Code
Related Boards & Kits
SmartBond DA14592 Bluetooth Low Energy 5.2 Daughterboard
The DA14592-016FDB-P daughterboard is designed specifically for use with the DA14592-016FDEVKT-P development kit and can be easily attached to its motherboard. The...
Featured Documents:
SmartBond DA14592 Bluetooth Low Energy 5.2 Daughterboard
The DA14592-01O9DB-P daughterboard is designed specifically for use with the DA14592-016FDEVKT-P development kit and can be easily attached to its motherboard. The...
Featured Documents:
