Overview

After the Monitor Program is written to the MCU and the Monitor Program communicates with the Debugger, the user program can be debugged.

  • Software for on-chip debugging on High-performance Embedded Workshop or KD3x.
  • The Monitor Program is automatically written to the MCU when the Debugger is started up. Therefore, there is no need to write the Monitor Program to the MCU using a flash programmer.
  • You can debug by the same pin handling as Standard Serial I/O Mode 2 for the flash programmer.
  • Initialize (erase) the user program area using a flash programmer before using the Monitor Program.
  • Use RS-232C for communication between the Debugger and the Monitor Program.
  • Learn More

Documentation

Additional Details

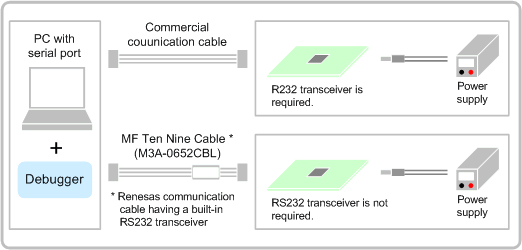

System Configuration

System Configuration

Preparations

  • PC with Serial Port
  • Communication Cable
  • Target Board, Power Supply
  • Debugger

* You can download the Debugger from "Documentation & Downloads".

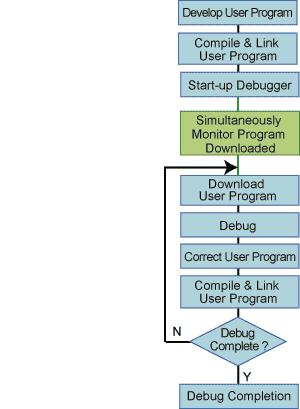

Process flow

Process flow

Operating Environment

The operating environment depends on your debugger.

M16C R8C FoUSB/UART debugger (High-performance Embedded Workshop Version)

Item Description
PC IBM PC/AT or compatible PC with Intel Pentium III 600MHz or higher
OS Windows XP, Windows 2000, Windows ME, Windows 98 SE (98)
Memory 128MB or higher
Interface 9-pin D-SUB Serial Interface

M16C R8C FoUSB/UART debugger (KD30 Version)

Item Description
PC IBM PC/AT or compatible PC with Intel DX4 100MHz/Pentium II 75MHz or higher
OS Windows XP, Windows 2000, Windows ME, Windows 98 SE (98), Windows 95
Memory 16MB or higher
Interface 9-pin D-SUB Serial Interface

Note

ID Check Function

The ID check function, which provides protection against accidentally erasing the user program, is supported except in R8C/10 and R8C/11 Groups with Boot Program Version 0.90. This function checks the addresses in which the ID code is stored when the Debugger is started up, and executes the debugging program (erase internal ROM and download Monitor Program) only when the ID code is "all FFh".
When the ID code is not "all FFh", the Debugger displays a time-out error and KD30 will not operate (internal ROM will not be erased and Monitor Program will not be downloaded).

ID Code at Debug Completion

[R8C/10 and R8C/11 Groups Boot Program Ver.0.90]
The Monitor Program sets ID3, ID4, and ID6 to "00h". All other codes are set according to the ID code of the user program. For example, if the user program ID code is set to "all FFh", the codes will be as follows.
Therefore, we recommend setting the user program ID code to "all 00h" .

  ID1: FFh (address 0FFDFh)
ID2: FFh (address 0FFE3h)
ID3: 00h (address 0FFEBh)
ID4: 00h (address 0FFEFh)
ID5: FFh (address 0FFF3h)
ID6: 00h (address 0FFF7h)
ID7: FFh (address 0FFFBh)

[R8C/10 and R8C/11 Groups Boot Program Ver.1.00 or later and Other Groups of R8C Family]
The Monitor Program sets ID1 through ID7 to "all FFh". Therefore, regardless of what the ID code is set to in the user program, this will not be reflected in the final outcome. Accordingly, after debug is completed, the ID code will always be "all FFh".

Upgrade Information

Debugger (High-performance Embedded Workshop version / KD version)

<<KD debugger does not have a plan to revise any more.>>

* Target product : M32C M16C UART Monitor Program | R8C UART Monitor Program

High-performance Embedded Workshop version

[Latest Version]

  • Released Date : 1. July, 2007
  • Software name :
    • M16C R8C FoUSB/UART Debugger
    • M32C FoUSB/UART Debugger
  • Version : V.1.03 Release 00
  • New feature(s)
    • Comes with High-performance Embedded Workshop V.4.03.00
    • [Disconnect] function
    • Representational function of instruction format specifier in disassembly language
    • Assignment function to bit-field members
    • Some more improvements

[How to upgrade to the latest version]
Download free updates from the "Documentation & Downloads". Upgradable from any previous versions.

[How to install]
Each emulator and monitor debugger is not bundled with High-performance Embedded Workshop. Please download from the "Documentation & Downloads" on this page. Installing this emulator debugger add High-performance Embedded Workshop environment a debugging function.

KD version

[Latest Version]

Released Date Software name Version
9. June, 2004 KD30
(M16C R8C FoUSB/UART Debugger)		 Ver.4.10 Release 1
25. August, 2004 KD3083
(M32C FoUSB/UART Debugger)		 Ver.3.30 Release 1
28. May, 1999 KD308*
(M32C UART Debugger)		 Ver.1.00 Release 1

* : KD308 is a M16C/80 Group debugger for "M32C M16C UART Monitor Program". This product has no plan to support High-performance Embedded Workshop in the future.

[How to upgrade to the latest version]
Download free updates from the "Documentation & Downloads".

Target Devices

M16C R8C FoUSB/UART debugger (High-performance Embedded Workshop Version)

The debugger depends on your MCU. In addition, the High-performance Embedded Workshop version of the debugger is the successor debugger of the KD30/KD3083 version. The High-performance Embedded Workshop version is only scheduled for release in the future.

Family Series Group Part No.
R8C R8C/1x R8C/10 R5F21102 R5F21103 R5F21104
R8C/11 R5F21112 R5F21113 R5F21114
R8C/12 R5F21122 R5F21123 R5F21124
R8C/13 R5F21132 R5F21133 R5F21134
R8C/14 R5F21142 R5F21143 R5F21144
R8C/15 R5F21152 R5F21153 R5F21154
R8C/16 R5F21162 R5F21163 R5F21164
R8C/17 R5F21172 R5F21173 R5F21174
R8C/18 R5F21181 R5F21182 R5F21183
R5F21184 - -
R8C/19 R5F21191 R5F21192 R5F21193
R5F21194 - -
R8C/1A R5F211A1 R5F211A2 R5F211A3
R5F211A4 - -
R8C/1B R5F211B1 R5F211B2 R5F211B3
R5F211B4 - -
R8C/2x R8C/20 R5F21206 R5F21207 R5F21208
R8C/21 R5F21216 R5F21217 R5F21218
R8C/22 R5F21226 R5F21227 R5F21228
R8C/23 R5F21236 R5F21237 R5F21238
R8C/24 R5F21244 R5F21246 R5F21247
R5F21248 - -
R8C/25 R5F21254 R5F21256 R5F21257
R5F21258 - -
R8C/26 R5F21262 R5F21264 R5F21265
R5F21266 - -
R8C/27 R5F21272 R5F21274 R5F21275
R5F21276 - -
R8C/28 R5F21282 R5F21284 R5F21286
R8C/29 R5F21292 R5F21294 R5F21296
R8C/2A R5F212A7 R5F212A8 R5F212AA
R5F212AC - -
R8C/2B R5F212B7 R5F212B8 R5F212BA
R5F212BC - -
R8C/2C R5F212C7 R5F212C8 R5F212CA
R5F212CC - -
R8C/2D R5F212D7 R5F212D8 R5F212DA
R5F212DC - -
R8C/2E R5F212E2 R5F212E4 -
R8C/2F R5F212F2 R5F212F4 -
R8C/2G R5F212G4 R5F212G5 R5F212G6
R8C/2H R5F212H1 R5F212H2 -
R8C/2J R5F212J0 R5F212J1 -
R8C/2K R5F212K2 R5F212K4 -
R8C/2L R5F212L2 R5F212L4 -
R8C/3x R8C/32C R5F21321C R5F21322C R5F21324C
R8C/33C R5F21331C R5F21332C R5F21334C
R5F21335C R5F21336C -
R8C/34C R5F21344C R5F21345C R5F21346C
R8C/35C R5F21354C R5F21355C R5F21356C
R5F21357C R5F21358C R5F2135AC
R5F2135CC - -
R8C/36C R5F21364C R5F21365C R5F21366C
R5F21367C R5F21368C R5F2136AC
R5F2136CC - -
R8C/38C R5F21386C R5F21387C R5F21388C
R5F2138AC R5F2138CC -
R8C/32D R5F21321D R5F21322D R5F21324D
R8C/33D R5F21331D R5F21332D R5F21334D
R5F21335D R5F21336D -
R8C/35D R5F21354D R5F21355D R5F21356D
R8C/33T R5F21334T R5F21335T R5F21336T
R8C/32M R5F21321M R5F21322M R5F21324M
R8C/33M R5F21331M R5F21332M R5F21334M
R5F21335M R5F21336M -
R8C/34M R5F21344M R5F21345M R5F21346M
R8C/35M R5F21354M R5F21355M R5F21356M
R5F21357M R5F21358M R5F2135AM
R5F2135CM - -
R8C/Lx R8C/L35C R5F2L357C R5F2L358C R5F2L35AC
R5F2L35CC - -
R8C/L36C R5F2L367C R5F2L368C R5F2L36AC
R5F2L36CC - -
R8C/L38C R5F2L387C R5F2L388C R5F2L38AC
R5F2L38CC - -
R8C/L3AC R5F2L3A7C R5F2L3A8C R5F2L3AAC
R5F2L3ACC - -
R8C/Mx R8C/M11A R5F2M111A R5F2M112A -
R8C/M12A R5F2M121A R5F2M122A -

M16C R8C FoUSB/UART debugger (KD30 Version)

Family Series Group Part No.
R8C R8C/1x R8C/10 R5F21102
R8C/11 R5F21112
R8C/12 R5F21122
R8C/13 R5F21132
R8C/14 R5F21142
R8C/15 R5F21152
R8C/16 R5F21162
R8C/17 R5F21172
