Bluetooth® Low Energy for RX Family

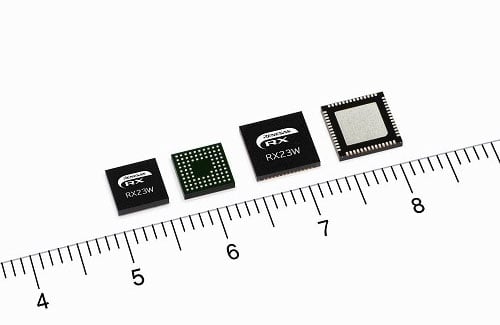

RX23W 32-bit Bluetooth LE MCUs: R5F523WxxDNG / R5F523WxxDBL

The RX23W Bluetooth LE MCU incorporates a dedicated to Bluetooth high-precision low-speed on-chip oscillator, eliminating the need for external matching circuits and external capacitors.

RX23W Module: R5F523WxxDLN

Renesas offers a lineup of module products that have built-in antennas and oscillators and have been certified by the Radio Law of each country. Despite being the world's smallest module size, many microcomputer peripheral function pins can be used.

RX23W / RX23W Module Product Page

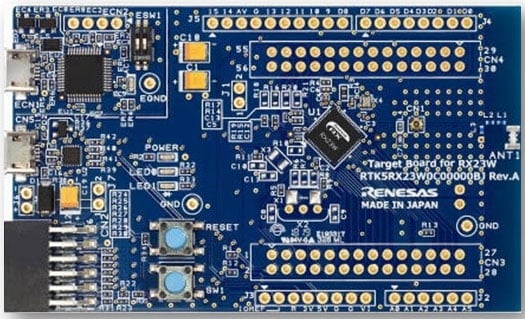

Target Board for RX23W: RTK5RX23W0C00000BJ

The Target Board for RX23W provides an entry point to evaluation, prototyping and developing for the RX23W MCU. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides through-holes for pin headers that allow access to all MCU signal pins, allowing an easy prototyping with a breadboard.

Target Board for RX23W Product Page

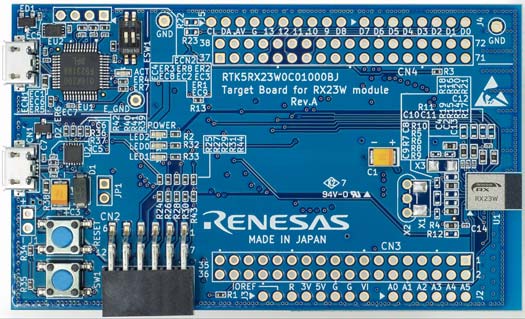

Target Board for RX23W Module: RTK5RX23W0C01000BJ

The Target Board for RX23W Module provides an entry point to evaluation, prototyping and developing for the RX23W module. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides through-holes for pin headers that allow access to all MCU signal pins, allowing an easy prototyping with a breadboard.

Target Board for RX23W Module Product Page

Starter Kit

Renesas Solution Starter Kit for RX23W: RX23W-Starter-Kit

The Renesas Solution Starter Kit for RX23W is the perfect starter kit for developers who are new to the RX23W (Code Flash 512KB, Pin Count 85-pin). The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment from the Renesas website and start evaluating RX23W performance, right after unboxing the Renesas Solution Starter Kit.

Renesas Solution Starter Kit for RX23W Product Page

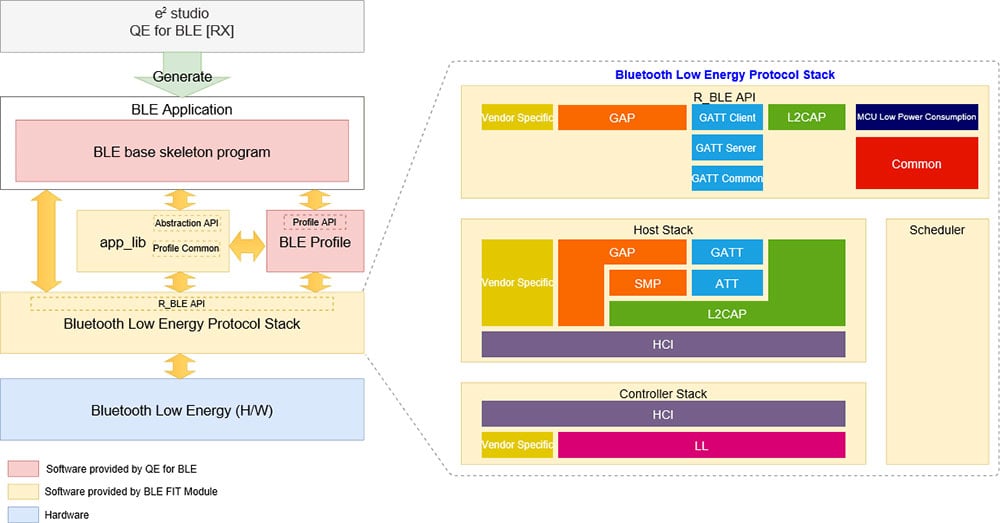

Bluetooth Low Energy Protocol Stack for the RX Family

The Bluetooth Low Energy protocol stack is the software required to operate the RX23W MCU. It conforms to the Bluetooth v5.0 specification and all LE functions of Core Specification v5.0 can be supported. In addition, three types of libraries are provided depending on the function set, so that a configuration suitable for the specifications of the end product can be selected.

Bluetooth qualified 56 types (as of December 2019) of standard Profiles/Services are available.

The profile is generated from QE for BLE[RA,RE,RX]. You can also design and generate a custom profile. Renesas also provides sample programs as a reference for your program development. The sample programs will be further expanded in the future.

Available sample programs:

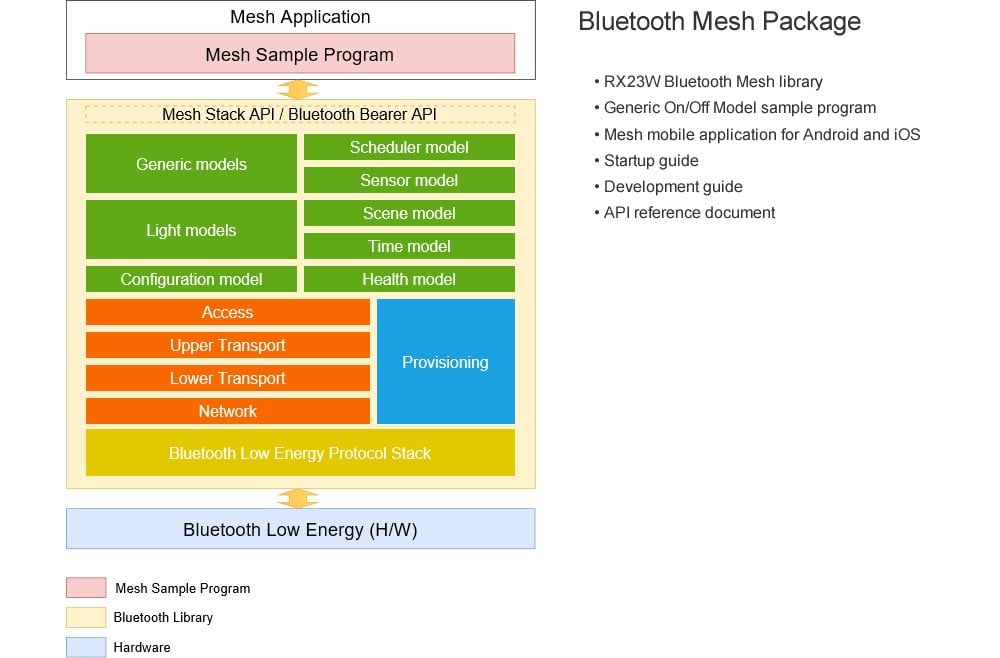

Bluetooth Mesh Stack:

The Mesh profile is provided as a dedicated library "Bluetooth Mesh Stack", so please use this to develop products that conform to the Bluetooth Mesh Networking specification. Bluetooth Mesh is a network optimized for building large-scale device networks, enabling multipoint-to-multipoint device communication. This technology is suitable for IoT solutions where performance, reliability, and security are important, such as building automation, sensor networks, and asset tracking.

Available sample programs:

Additionally, Renesas offers Bluetooth LE software solutions corresponding to a wide variety of application development. Refer the protocol stack product page for more information.

Bluetooth Low Energy Protocol Stack for the RX Family Product Page

QE for BLE[RA,RE,RX] － Development Assistance Tool

The QE for BLE[RA,RE,RX] is a dedicated tool for developing embedded software in systems which support the Bluetooth Low Energy protocol stack. This solution toolkit runs in the e² studio integrated development environment (IDE). The combination of the e² studio and QE for BLE[RX] makes it easy to test the communications features of Renesas' RX23W Bluetooth LE microcomputer, thus reducing development periods for products being placed on the market. The standard profiles are generated from this tool. It can also design and generate the custom profile.

Please refer to the QE for BLE[RA,RE,RX]: Development Assistance Tool for Bluetooth Low Energy page for more information.

QE for BLE[RA,RE,RX]: Development Assistance Tool for Bluetooth Low Energy

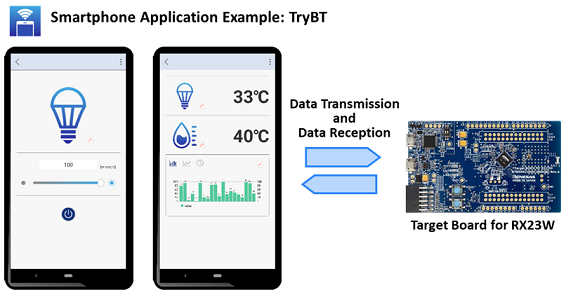

TryBT － Smartphone Application Example

TryBT is a smartphone application example that supports both Android and IOS, equipped with the functions required to communicate with Bluetooth LE products, and can be downloaded from the Apple App Store and Google Play. You can check communication with the firmware preinstalled in Target Board for RX23W. Also, you can use RA4W1, too.

In addition, icon images as well as a project file (can be imported into Android Studio or launched with Xcode) and source code are provided, so you can use this application example as a base for developing Bluetooth LE communication application in a Proof of Concept (PoC) phase.

Download TryBT:

• Bluetooth Low Energy Smartphone Application Example TryBT for Android - Sample Code (ZIP | English, 日本語) (PDF + set of projects for Android Studio)
• Bluetooth Low Energy Smartphone Application Example TryBT for iOS - Sample Code (ZIP) (PDF + set of projects for Xcode)
• TryBT for iOS (App Store)
• TryBT for Android (Google Play)

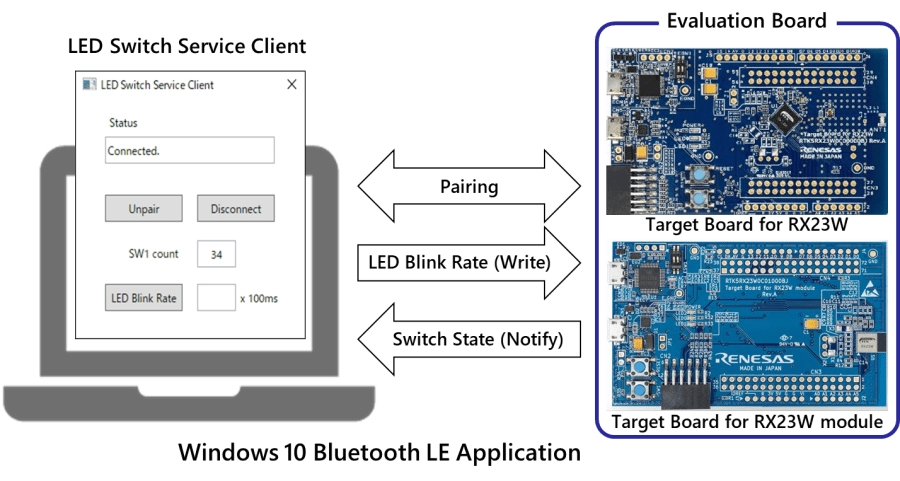

Windows 10 Bluetooth LE Application － Windows Application Example

The Windows 10 Bluetooth LE application is an application example for Windows 10 that communicates with the firmware pre-installed on the evaluation board "Target Board for RX23W" or "Target Board for RX23W module", controls the LED blinking interval on the evaluation board and counts the number of times the switch is pressed.

In addition, a set of projects that can be launched and used in Visual Studio 2017 are provided, so you can use this application example as a base for developing Bluetooth LE communication apps that run on Windows in a Proof of Concept (PoC) phase.

Download Windows 10 Bluetooth LE Application: Bluetooth LE microcomputer / module Windows 10 Bluetooth LE Application Rev.1.00 - Sample Code (ZIP) (PDF + set of projects for Visual Studio 2017)

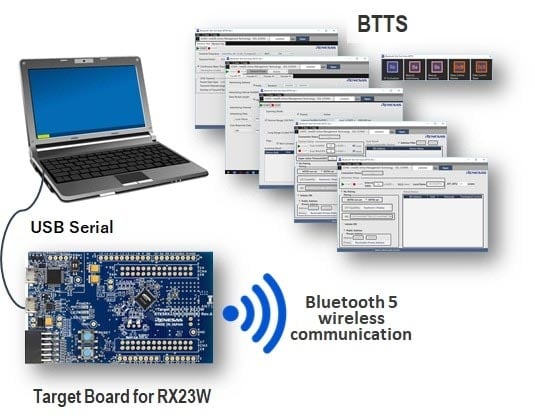

BTTS － Windows Application

In the survey/evaluation phase of the development process, new Bluetooth LE functions, API execution procedures and parameters of API can be learned by evaluating the functions and performance of Bluetooth LE supported by the Bluetooth LE MCU using the Bluetooth Test Tool Suite (BTTS).

In the certification phase of the device, it can be used as a GUI tool to operate the device under test (DUT) in the Radio Law certification test.

Download BTTS: Bluetooth LE MCU Bluetooth Test Tool Suite operating instructions Rev.1.07 (ZIP | English, 日本語) (PDF + Windows application)


Silex Technology, Inc.

Contact Information:
E-mail: [email protected]
Tel: +1-657-218-5199
https://www.silextechnology.com/

The available SX-23BT microcomputer module is compatible with Bluetooth 5.0 LE and includes an RX23W MCU.

Module: SX-23BT

The SX-23BT is microcontroller module supporting Bluetooth 5.0 Low Energy for IoT endpoint devices with the following features.

• Obtained Radio Law Certification in Japan, United States, Canada, and Europe.
• Installed RX23W-BGA85 pin and fully supports the functions of RX23W.
• Employs 0.7mm pitch SMT to facilitate board mounting

SX-23BT Product Page

Evaluation Kit: SX-23BT-EVK

By connecting the Renesas E2 emulator, immediate evaluation is possible. In addition to the FINE interface connector, it also has through holes for pin headers that enable access to MCU signal pins. You can easily prototype IoT devices by attaching sensors and other parts to this evaluation board.

SX-23BT-EVK Product Page
