Target Board for RX23W
The Target Board for RX23W provides an entry point to evaluation, prototyping and developing for the RX23W MCU. Moreover, since this board incorporates an emulator...
Overview
Description

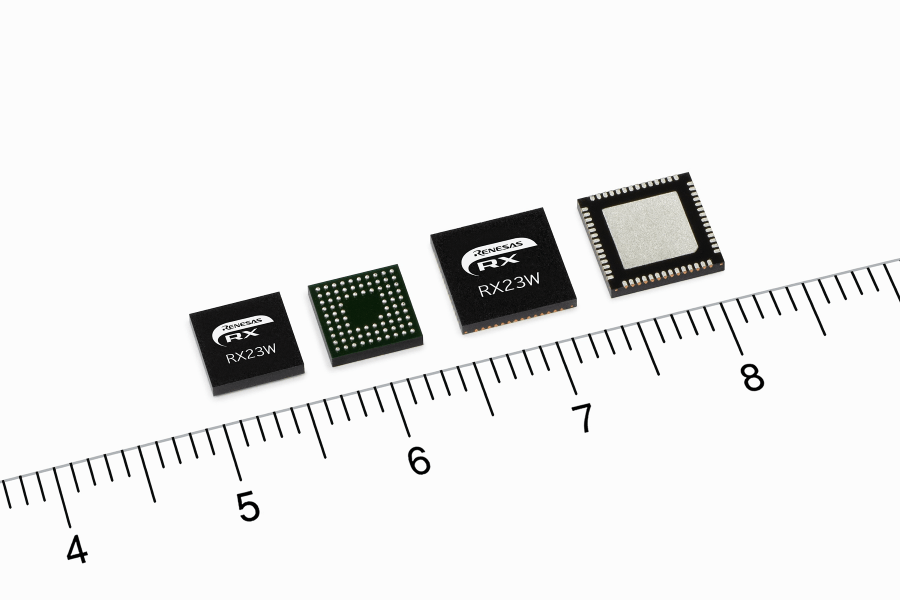

RX23W microcontrollers incorporate security functions that are vital for Bluetooth® 5.0 Low Energy (LE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB, and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long-range and mesh networking, and provide excellent reception performance.
In addition, the RX23W lineup includes a module with a built-in antenna and oscillator. It enables the use of many MCU peripheral function pins while having the industry’s smallest footprint for a module. This module has obtained Radio Law (Japan), FCC/ISED (North America), and CE (Europe) certifications, saving users the trouble of designing an RF circuit or obtaining certifications on their own, shortening time to market.
Features
- RXv2 core 54MHz operation (4.33 CoreMark/MHz), single-precision FPU
- Operating voltage: 1.8V to 3.6V
- Operating temperature: -40 °C to 85 °C
- Program Flash up to 512KB, SRAM up to 64KB
- Communications
- Bluetooth Low Energy (one channel)
- Built-in Bluetooth 5.0-compliant RF transceiver and link layer
- Supports LE 1M PHY, LE 2M PHY, LE Coded PHY (125kbps, 500kbps), LE Advertising Extensions
- Built-in Bluetooth dedicated AES-CCM (128-bit) encryption circuit
- USB 2.0 Host/Function/OTG (one channel)
- Full speed (12Mbps), low speed (1.5Mbps), isochronous transfer
- BC (battery charger) support
- CAN (one channel)
- ISO 11898-1 compliant CAN, up to 1Mbps transfer
- SD Host I/F (on channel)
- SD memory/SDIO 1- or 4-bit SD bus support
- Bluetooth Low Energy (one channel)
- Capacitive Touch Sensing
- Self-capacitive method: Up to 12 keys supported in a 1-terminal 1-key configuration
- Mutual capacitive method: Supports up to 36 keys in a 12-terminal matrix configuration
- Enhanced analog
- Enhanced analog: 12-bit A/D converter (14 channels), 12-bit D/A converter (2 channels)
- Trusted Secure IP Lite (AES/TRNG)
- Module package size
- 6.1mm × 9.5mm, 0.5mm pitch (83-pin LGA)
Comparison
Applications
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| Bluetooth® Low Energy Protocol Stack for RX family Bluetooth v5.0 certified protocol stack [Target device: RX23W]
|
Protocol Stack | Renesas |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | Renesas |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | Renesas |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | Renesas |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| QE for BLE: Development Assistance Tool for Bluetooth® Low Energy Debugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
| QE for Current Consumption: A Dedicated Tool for Current Measurement Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | Renesas |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | Renesas |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | Renesas |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | Renesas |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | Renesas |
|
28 items
|
||
Sample Code
Boards & Kits
Target Board for RX23W Module
The Target Board for RX23W Module provides an entry point to evaluation, prototyping and developing for the RX23W module. Moreover, since this board incorporates an...
Featured Documents:
RX23W Solution Starter Kit for Bluetooth® 5 Evaluation
The Renesas Solution Starter Kit for RX23W is the perfect starter kit for developers who are new to the RX23W (Code Flash 512KB, Pin Count 85-pin).
The kit includes an...
Featured Documents:
Silex SX-23BT / SX-23BT-EVK (SX-23BT Evaluation Board)
Capacitive Sensor Application Demonstration Kit
This demonstration kit measures the water level with a one-channel self-capacitance electrode and a one-channel shield electrode using a Renesas capacitive touch key...
Featured Documents:
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
Security & Encryption |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||||||||||||||
| Tray | N/A | RXv2 | 512 | 8 | 64 | 56 | HVQFN | 1.8 - 3.6 | 54 | 30 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 15-ch | 12-bit x 8-ch | 0 | 12-bit x 1-ch | Capacitive Sensing Unit 9ch, Serial sound interface | No | Yes | 2 | Yes | 7 x 7 x 0.9 | 3 | 3.363 | Get Samples, | |
| Tray | N/A | RXv2 | 512 | 8 | 64 | 85 | TFBGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | TSIP-Lite:AES(128/256), TSIP-Lite:CMAC, TSIP-Lite:GMAC, TSIP-Lite:Key management, TSIP-Lite:TRNG | Yes | 2 | Yes | 5.5 x 5.5 x 1.2 | 3 | Get Samples, | ||
| Tray | N/A | RXv2 | 512 | 8 | 64 | 56 | HVQFN | 1.8 - 3.6 | 54 | 30 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 15-ch | 12-bit x 8-ch | 0 | 12-bit x 1-ch | Capacitive Sensing Unit 9ch, Serial sound interface | TSIP-Lite:AES(128/256), TSIP-Lite:CMAC, TSIP-Lite:GMAC, TSIP-Lite:Key management, TSIP-Lite:TRNG | Yes | 2 | Yes | 7 x 7 x 0.9 | 3 | Get Samples, | ||
| Tray | N/A | RXv2 | 512 | 8 | 64 | 83 | TFLGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | No | Yes | 2 | Yes | 9.5 x 6.1 x 1.009 | 3 | 12.46 | ||
| Tray | N/A | RXv2 | 512 | 8 | 64 | 83 | TFLGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | TSIP-Lite:AES(128/256), TSIP-Lite:CMAC, TSIP-Lite:GMAC, TSIP-Lite:Key management, TSIP-Lite:TRNG | Yes | 2 | Yes | 9.5 x 6.1 x 1.009 | 3 | |||
| Tray | N/A | RXv2 | 384 | 8 | 64 | 85 | TFBGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | No | Yes | 2 | Yes | 5.5 x 5.5 x 1.2 | 3 | 3.596 | ||
| Tray | N/A | RXv2 | 384 | 8 | 64 | 56 | HVQFN | 1.8 - 3.6 | 54 | 30 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 15-ch | 12-bit x 8-ch | 0 | 12-bit x 1-ch | Capacitive Sensing Unit 9ch, Serial sound interface | No | Yes | 2 | Yes | 7 x 7 x 0.9 | 3 | 3.465 | ||
| Tray | N/A | RXv2 | 384 | 8 | 64 | 85 | TFBGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | TSIP-Lite:AES(128/256), TSIP-Lite:CMAC, TSIP-Lite:GMAC, TSIP-Lite:Key management, TSIP-Lite:TRNG | Yes | 2 | Yes | 5.5 x 5.5 x 1.2 | 3 | |||
| Tray | N/A | RXv2 | 384 | 8 | 64 | 56 | HVQFN | 1.8 - 3.6 | 54 | 30 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 15-ch | 12-bit x 8-ch | 0 | 12-bit x 1-ch | Capacitive Sensing Unit 9ch, Serial sound interface | TSIP-Lite:AES(128/256), TSIP-Lite:CMAC, TSIP-Lite:GMAC, TSIP-Lite:Key management, TSIP-Lite:TRNG | Yes | 2 | Yes | 7 x 7 x 0.9 | 3 | 3.552 | ||
| Tray | N/A | RXv2 | 512 | 8 | 64 | 85 | TFBGA | 1.8 - 3.6 | 54 | 44 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 16-ch | 12-bit x 14-ch | 0 | 12-bit x 2-ch | Capacitive Sensing Unit 12ch, Serial sound interface | No | Yes | 2 | Yes | 5.5 x 5.5 x 1.2 | 3 | 3.502 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Renesas RX23W MCU with Bluetooth® 5.0 Mesh
Introducing high performance RX23W BT5.0 enabled MCU, ideal for system controller and provides robust security for IoT connected devices.
Video List
Events & Webinars
News & Blog Posts
| Blog Post | Feb 27, 2023 | ||
| Blog Post | Dec 5, 2022 | ||
| Blog Post | Sep 16, 2022 | ||
| Blog Post | Jul 22, 2022 | ||
| Blog Post | Jun 27, 2022 | ||
| Blog Post | Mar 11, 2022 | ||
| Blog Post | Mar 9, 2022 | ||
| Blog Post | Mar 4, 2022 | ||
| Blog Post | Aug 24, 2021 | ||
| Blog Post | Aug 21, 2021 | ||
| Blog Post | Aug 5, 2021 | ||
| Blog Post | May 20, 2021 | ||
| Blog Post | Apr 27, 2021 | ||
| Blog Post | Apr 20, 2021 | ||
| Blog Post | Mar 31, 2021 | ||
| Blog Post | Jan 20, 2021 | ||
| Blog Post | Aug 14, 2020 | ||
| Blog Post | Jun 13, 2020 | ||
| Blog Post | Dec 7, 2019 |
Resonator Information
Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
For main clock resonators / For subclock resonators:
KYOCERA: Click here for the RX23W oscillation evaluation result.
Murata Manufacturing: For IC Manufacturer, select Renesas Electronics, and enter R5F523W into the IC Part Number search box.
NIHON DEMPA KOGYO: Please see IC Matching Information in the RX23W column.
For information on resonators, please also refer to the following application note.
Design Guide for Main Clock Circuits and Sub-Clock Circuits Rev.1.01 (PDF | English, 日本語)
