Overview
Description

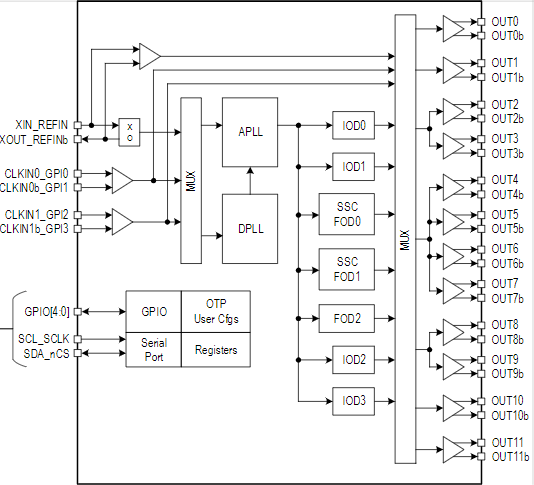

The RC31xxxB (RC31008B and RC31012B) are small form factor, fully integrated, low-power, high-performance jitter attenuators with network synchronization capabilities. The family supports JEDEC JESD204B/C for converter synchronization and SyncE for network-based synchronization. The RC31xxxB are ideal for driving converter circuits in wireless and wireline infrastructure, data center equipment, and instrumentation applications. The devices are members of Renesas' high-performance VersaClock® 7 family
Up to 27 configurations reusable across multiple designs may be stored in on-chip One-Time Programmable (OTP) memory or external I2C EEPROM. Redundant input is available for backup and used as a reference clock where needed.
Features
- 1.8V/2.5V/3.3V flexible power rails
- Typical 150fs RMS 12kHz to 20MHz phase jitter
- 5/8/12 outputs with integrated crystal options
- 1kHz to 650MHz LVDS/LP-HCSL outputs
- 1kHz to 200MHz LVCMOS outputs
- Programmable hardware configuration select-pins
- PCIe Gen 5/6 ready
- Space saving packages 4mm × 4mm, 5mm × 5mm, 6mm × 6mm
- JESD204B/C support on differential or single-ended outputs with DC-coupling or AC-coupling
- Digital holdover and hitless switching
- Integrated crystal option for space saving and BOM optimization
- ITU-T G.8262 and G.82621 compliant for easy synchronized Ethernet application
Comparison
Applications
Applications
- Switches/Routers
- Synchronous Ethernet (SyncE) equipment
- Telecom Time Slave Clock (T-TSC) equipment
- Jitter attenuation for 10/25/40/100/200/400 Gbps Ethernet PHYs or switches
- Small cell for 4.5G and 5G
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas IC Toolbox (RICBox) The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.
|
Software Package | Renesas |
1 item
|
||
Boards & Kits
Evaluation Kit for VersaClock 7 Programmable Clock
The RC31012A Evaluation Board (EVB) is designed to support users evaluating the RC31012A using clock generation in synthesizer mode for PCIe Gen 1-6 compliance or in...
Featured Documents:
Programming Boards for VersaClock 7 Programmable Clock
The VersaClock® 7 programmer board is made to ease the programming of RC21008 and RC31008 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Programming Boards for VersaClock 7 Programmable Clock
The VersaClock® 7 programmer board is made to ease the programming of RC21012 and RC31012 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Renesas Timing Product Demo Kit
RCTIMING-DEMO is a Renesas products combination kit. The kit includes a Renesas RL78 MCU, DA14531MOD Bluetooth® Low Energy (LE) module, LDO, RTC (1338-31DVG) and...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
Diff. Outputs |
Inputs (#) |
Input Type |
Diff. Inputs |
Pkg. Dimensions (mm) |
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | 3 | 6.601 | Get Samples, | |
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | 3 | 6.436 | Get Samples, | |
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Tray | 3 | Get Samples, | ||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Tray | 3 | Get Samples, | ||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | 3 | 7.118 | Get Samples, | |
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | 3 | Get Samples, | ||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | LGA | Tray | 3 | Get Samples, | ||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | LGA | Tray | 3 | Get Samples, | ||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | 3 | |||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | 3 | |||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Reel | 3 | |||
| 8 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Reel | 3 | |||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel | 3 | |||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel | 3 | |||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | LGA | Reel | 3 | |||
| 12 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | LGA | Reel | 3 | |||
| 5 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 4.0 x 4.0 x 1.0 | LGA | Tray | 3 | Get Samples, | ||
| 5 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 4.0 x 4.0 x 1.0 | LGA | Reel | 3 | |||
| 5 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 4.0 x 4.0 x 1.0 | LGA | Tray | 3 | Get Samples, | ||
| 5 | 2 | LP-HCSL, LVCMOS, LVDS | 2 | 4.0 x 4.0 x 1.0 | LGA | Reel | 3 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
VersaClock®7 Evaluation Board Demonstration
Learn more about how to configure the VersaClock®7 evaluation board using the supporting RICBox software. VersaClock®7 devices achieve any frequency-in, any frequency-out for high speed SerDes used in switches routers, accelerator cards, and server applications.
