Low Power High-Definition Haptic Driver Evaluation Kit
The DA728x-EVAL-KIT is designed to evaluate the DA7280x family of high-definition (HD) haptic drivers. The board is powered and controlled from the onboard USB...
Overview
Description

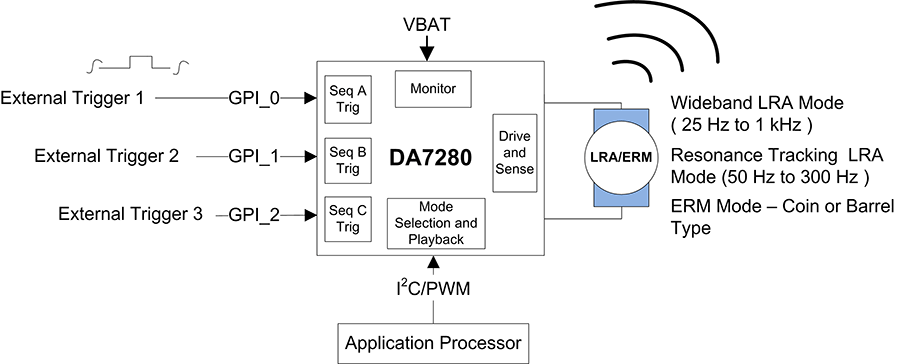

The DA7280 high-definition (HD) haptic driver combines custom drive sequences, on- and off-resonance, at up to 1kHz. The DA7280 can drive both ERM and LRA (narrow and wideband) actuators and track resonance up to 300Hz to drive the most complex click/vibration touch effects in a wide range of applications.
The DA7280 combines very low idle current consumption (360nA) with low-latency trigger inputs to minimize the delay after button presses when an application process is in deep sleep.
Benefits
- Constant resonance frequency tracking through continuous current drive monitoring
- Ultra-low power consumption means longer battery life
- Only 0.75ms latency when responding from ultra-low power state
- Drives LRAs off-resonance for custom effects, or dual-resonant systems for two-dimensional vibration
- Enables wide-band effects as well as supporting dual-resonant systems
- Drives distinct haptic effects triggered by multiple inputs without the need to wake the apps processor
- Detects issues with motor automatically
- Frequency, time, amplitude triplets to program the waveform
- Quick and easy software development using the SmartCanvas™ GUI
Features
- 360nA idle power mode with full I2C control and memory retention
- Wideband LRA driver: 25Hz to 1kHz with resonant mode
- Frequency tracking support up to 300Hz
- Low-latency direct drive for haptics
- On-the-fly diagnostics
- Custom waveform sequences
- Three methods of drive with Linux and C-like driver (HAL)
- Packages:
- WLCSP-12 (0.4mm pitch)
- QFN-12 (0.65mm pitch)
Comparison
Applications
Applications
- Smartphone
- Gaming
- Wearables
- Portable computing systems (POS, barcode scanners, etc.)
- Computing – All-in-ones (display), notebook PCs
- Any display driven consumer product
- Automotive
- Industrial
- Medical
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.67 MB | |
| Manual - Development Tools | PDF 3.41 MB | |
| Manual - Development Tools | PDF 3.72 MB | |
| Product Brief | PDF 549 KB | |
4 items
|
||
Design & Development
Software & Tools
Boards & Kits
Low-Power High-Definition Haptic Driver for Next Generation Human-Machine Interfaces Evaluation Board
The US082-DA7280EVZ evaluation board enables quick prototyping for a custom system design with the DA7280 ultra-low power haptic driver. The board provides a standard...
Featured Documents:
DA7280 Performance Board
Use the DA7280 Performance Board to experience the haptic capabilities of DA7280 with the supplied LRA. DA7280 is configured and controlled by the SmartCanvas™...
Featured Documents:
