RH850 Generation 1 Base-Mainboard of RH850 Evaluation System
The RH850 Generation 1 Base-Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and...
Overview
Description

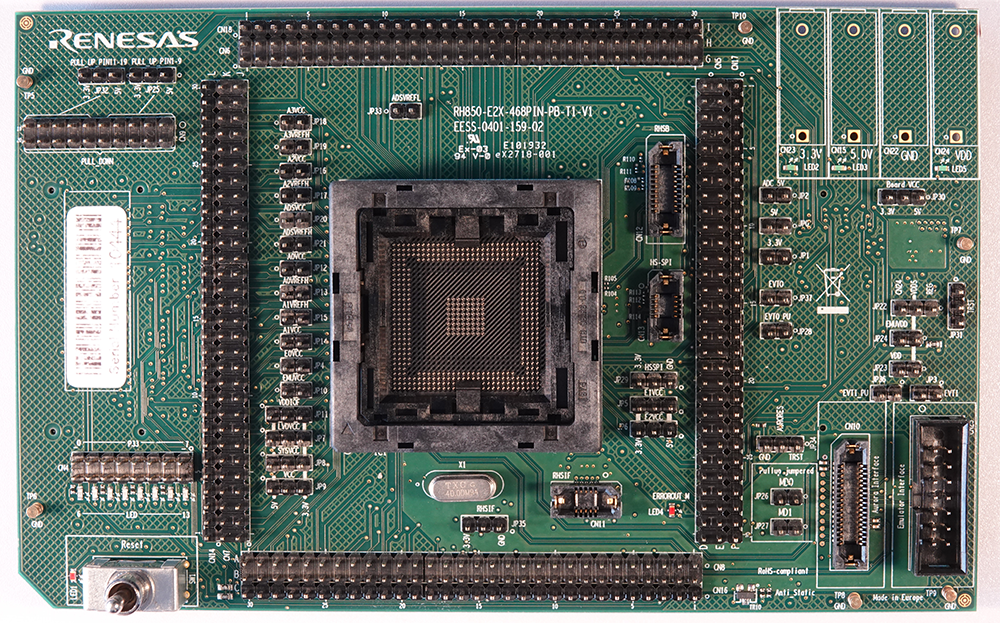

The RH850/E2X 468pin Piggyback Board supports all devices of the RH850/E2H, RH850/E2UH, and RH850/E2x-FCC2 series in 468pin-package. It can be used standalone or in combination with a mainboard of the RH850 Evaluation Platform. The modular RH850 Evaluation Platform consisting of mainboards and piggyback boards is a platform for evaluating the features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 Evaluation Platform
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- Power supply options via 4mm Banana Jacks (3x red, 1x black):
- 3.3V or 5.0V single supply
- flexible, individual power supply (typ. 1.12V/1.28V, 3.3V, 5.0V)
- 14pin Renesas Debug Connector to connect a Renesas or 3rd party emulator
- offering LPD (1pin/4pin) and JTAG debug connection support
- offering serial Flash programming support for the RH850 on-chip Flash memory
- 34pin AURORA Interface Connector
- On-board interface connector for
- Renesas High-speed Serial I/F (RHSIF)
- Renesas High-speed Bus (RHSB)
- High-speed SPI
- Each pin of the device is accessible via a 2.54mm pitch connector (triple row)
- External clock circuit
- with an exchangeable 20 or 40MHz Crystal Resonator
- by mounting a programmable crystal oscillator (not included)
- 8x Signal LEDs
- Reset circuit/switch
- Jumpers for device mode selection
