RH850 Generation 1 Base-Mainboard of RH850 Evaluation System
The RH850 Generation 1 Base-Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and...
Overview
Description

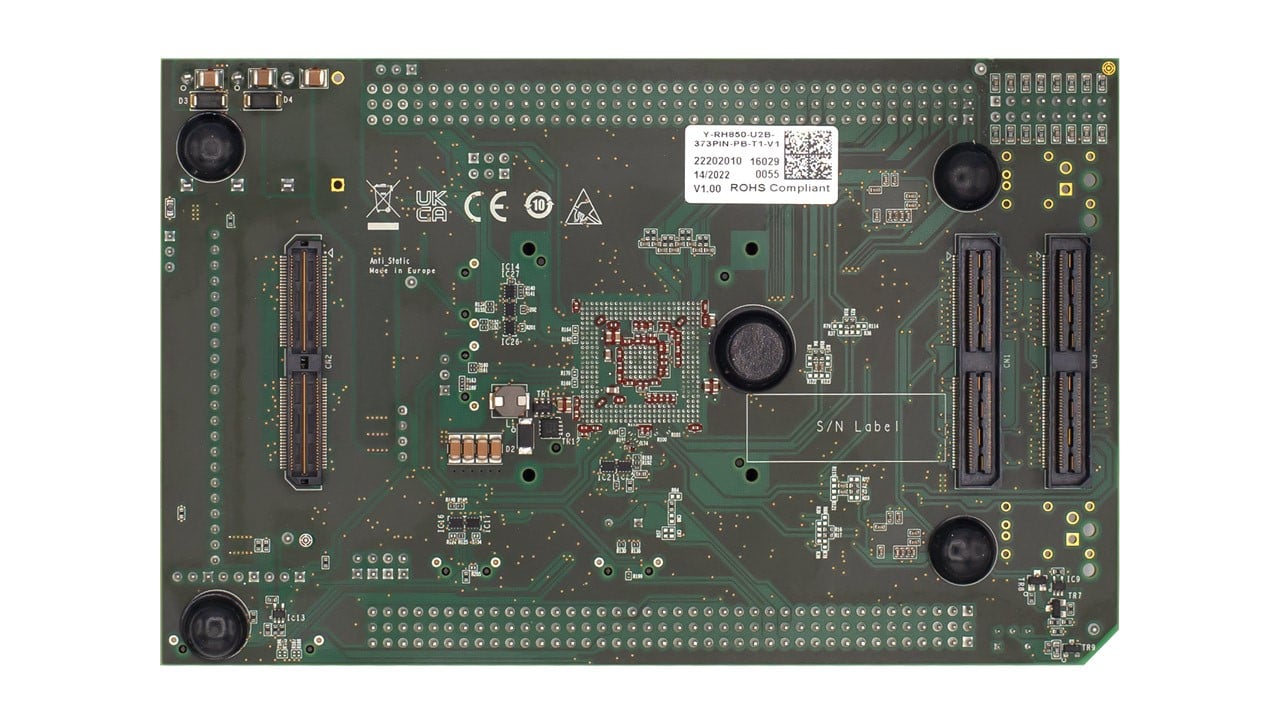

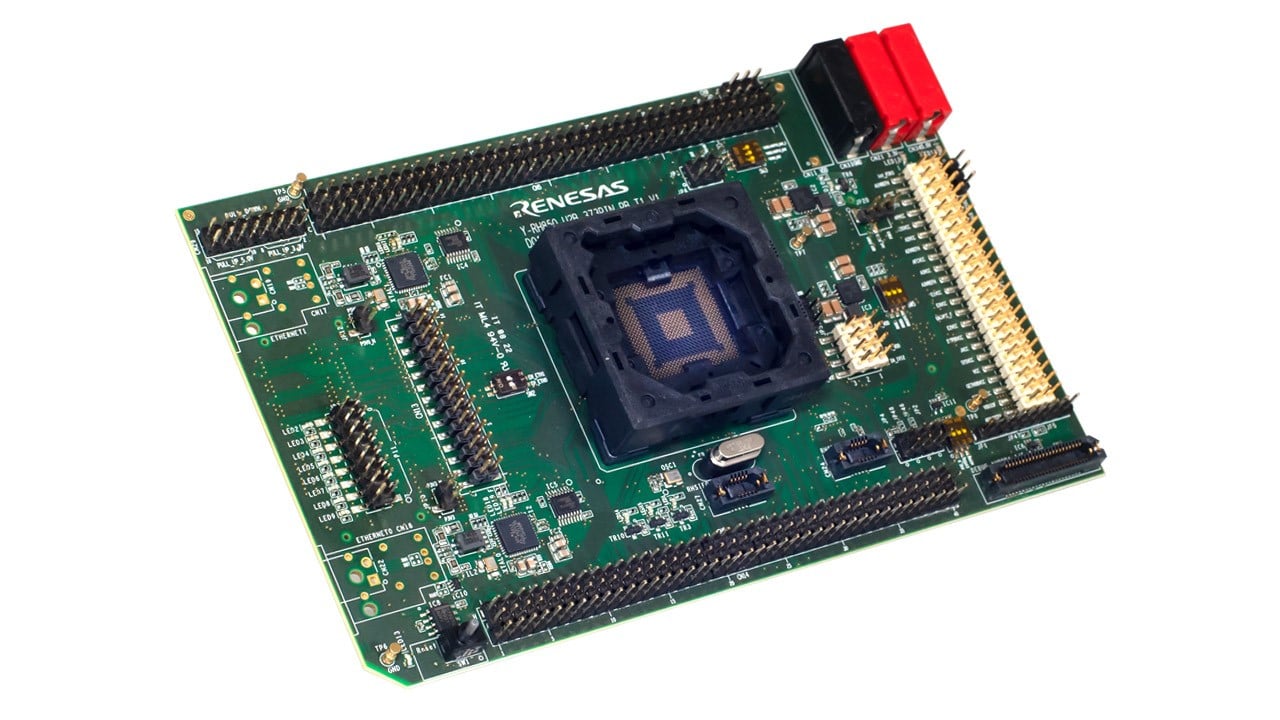

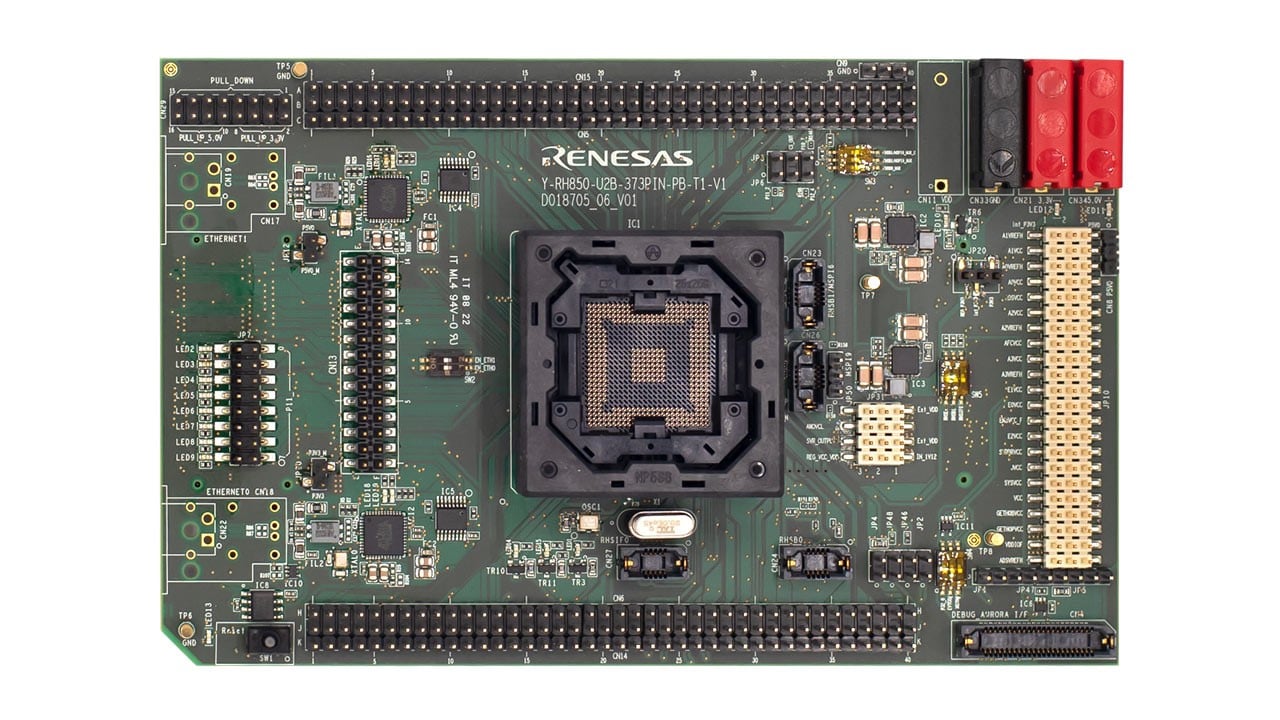

The RH850/U2B 373pin piggyback board supports all devices of the RH850/U2B series in 373pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform for evaluating features and performance of Renesas 32-bit RH850 microcontrollers.
Features
- Can be used with all mainboards of the RH850 Evaluation Platform.
- Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
- 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
- Device core voltage VDD either from onboard voltage regulator or via 4mm Banana Jack (red)
- 46pin Aurora Debug Connector to connect a Renesas or 3rd party emulator

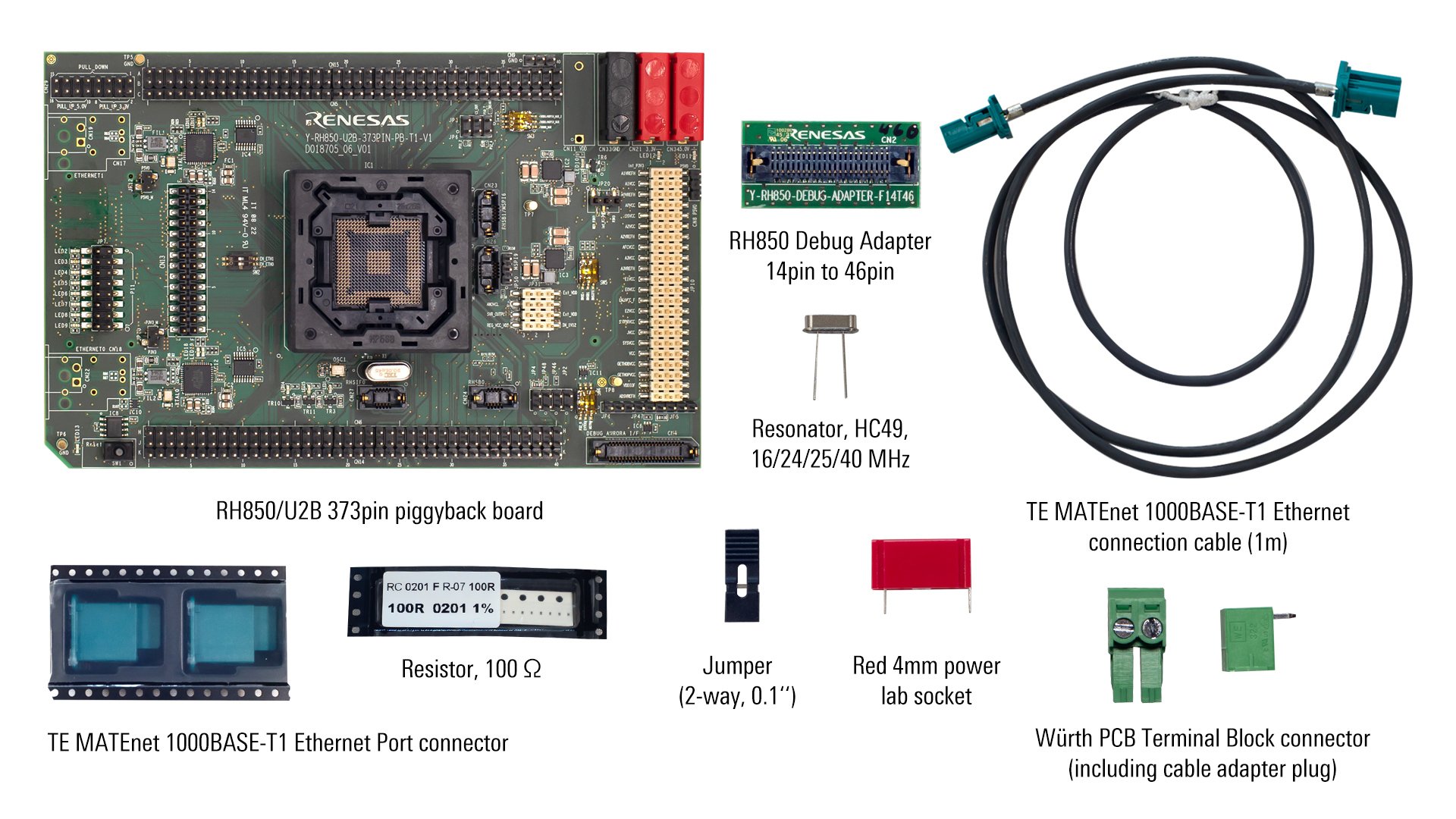

- To connect the E2 OCD emulator use the included 46pin to 14pin adapter Y-RH850-DEBUG-ADAPER-F14T46
- Offering serial Flash programming support for the RH850 on-chip Flash memory.
- On-board interface connector for
- Renesas High-Speed Serial I/F (RHSIF)
- Renesas High-Speed Bus (RHSB)
- Multichannel Serial Peripheral Interface (MSPI)
- Each pin of the device is accessible via 2.54mm pitch connector (double row).
- External clock circuit with an exchangeable 16, 20, 24, 25, or 40 MHz crystal resonator
- 8x Signal LEDs, 3x Power Supply LEDs (5.0V, 3.3V 1.12V)
- Reset circuit/switch.
- Jumpers for device mode selection.
Applications
Applications
- Zone control ECU
- Domain control ECU
- Communication gateway
- Vehicle motion applications:
- xEV, ICE, TCU
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 3.76 MB | |
| Application Note | PDF 1.03 MB | |
| Application Note | PDF 1.22 MB | |
| Application Note | PDF 1.81 MB | |
4 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | Renesas |
| Green Hills Multi Multi development environments allow to quickly develop, debug, test, and optimize embedded and real-time applications. The Green Hills optimizing compilers generate the smallest and fastest code from C, C++, and Ada.
|
IDE and Coding Tool | Green Hills Software LLC |
|
3 items
|
||
Related Boards & Kits
RH850 Generation 1 Network-Mainboard of RH850 Evaluation System
The RH850 Generation 1 Network-Mainboard provides additional communication interfaces to the RH850 Piggyback boards in comparison to the RH850 Generation 1...
Featured Documents:
RH850 Generation 2 Mainboard of RH850 Evaluation System
The RH850 Generation 2 Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and...
Featured Documents:
RH850 MCUs Mainboard Evaluation System
This mainboard provides communication interfaces to the RH850 MCU piggyback boards, offering compatibility across the entire RH850 MCU line for scalable development....
Featured Documents:
