FPB-R9A02G021 RISC-V MCU Fast Prototyping Board
The FPB-R9A02G021 Fast Prototyping Board provides an entry point for evaluation, prototyping and development with the R9A02G021 MCU. Moreover, since this board...
Featured Documents:
Overview
Description

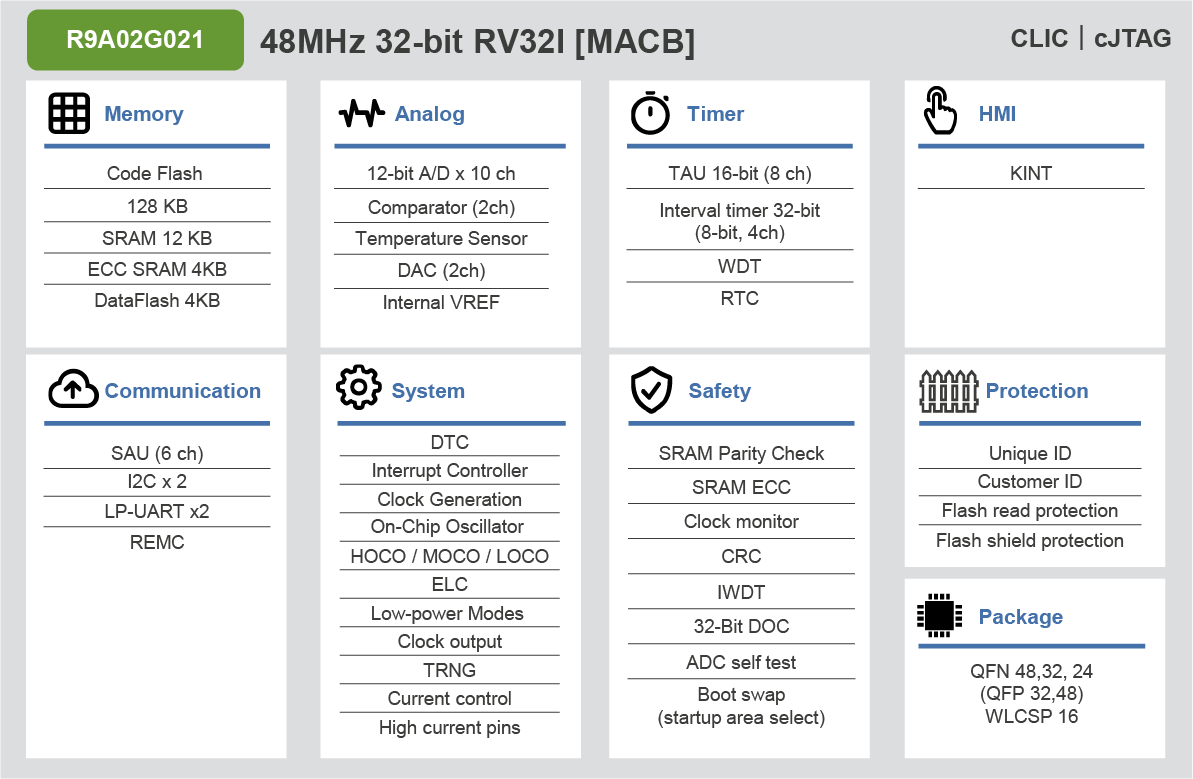

The MCU in this series incorporates an energy-efficient and performant Renesas RISC-V 32-bit core, that is particularly well-suited for cost-sensitive and low-power applications. It features 128KB code flash memory, 4KB data flash, 16KB SRAM with ECC support, many timers and serial connectivity interfaces, a high number of IOs with output current control, and rich analog functionality (12-bit A/D Converter, DAC, comparator). The device supports 125°C temperature operation and can be delivered in 16 WLCSP, 24, 32 and 48 QFN package options. Renesas provides a complete free-of-charge development ecosystem including e2 studio IDE, code generator, compiler toolchain, flashing tools, and application notes to assist the end user in developing and deploying this new technology in a product. Additional commercial environments like IAR Embedded Workbench and SEGGER Embedded Studio are available for this MCU.
Features
- State-of-the-art 32-bit CPU core based on RISC-V, with high computing power at 48 MHz operation
- Rich analog and digital peripheral mix
- 16 WLCSP, 24/32/48 QFN package (QFP option), 125°C temperature support
- Low voltage and low power operation, low active current
- Easy to use by simple configuration & generation of optimized software for small memory footprint
Comparison
Applications
- Consumer electronics
- Home appliances
- Industrial sensors
- Sensor modules
- Bus powered sensors
- Medical sensors
- Health tracking
- Remote controls
- Battery powered applications
- Low power home accessories
- Detectors
- Vehicle tracking
- Intelligent power supplies
- Inverters
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| IAR Embedded Workbench for RISC-V IAR Embedded Workbench for RISC-V MCUs
|
IDE and Coding Tool | IAR Systems |
| SEGGER Embedded Studio for RISC-V SEGGER Embedded Studio for Renesas R9A02G21 RISC-V MCUs
|
IDE and Coding Tool | SEGGER |
| e² studio - information for RISC-V MCU Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| RISC-V Smart Configurator RISC-V Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
|
9 items
|
||
Sample Code
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 128 | 16 | -40 to +125°C | WLCSP | 16 | 1.99 x 1.99 x 0.4 | 0.4 | ||
| 128 | 16 | -40 to +125°C | HWQFN | 48 | 7 x 7 x 0.5 | 0.5 | Get Samples, | |
| 128 | 16 | -40 to +125°C | HWQFN | 48 | 7 x 7 x 0.5 | 0.5 | ||
| 128 | 16 | -40 to +125°C | HWQFN | 32 | 5 x 5 x 0.5 | 0.5 | Get Samples, | |
| 128 | 16 | -40 to +125°C | HWQFN | 32 | 5 x 5 x 0.5 | 0.5 | ||
| 128 | 16 | -40 to +125°C | HWQFN | 24 | 4 x 4 x 0.5 | 0.5 | Get Samples, | |
| 128 | 16 | -40 to +125°C | HWQFN | 24 | 4 x 4 x 0.5 | 0.5 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
